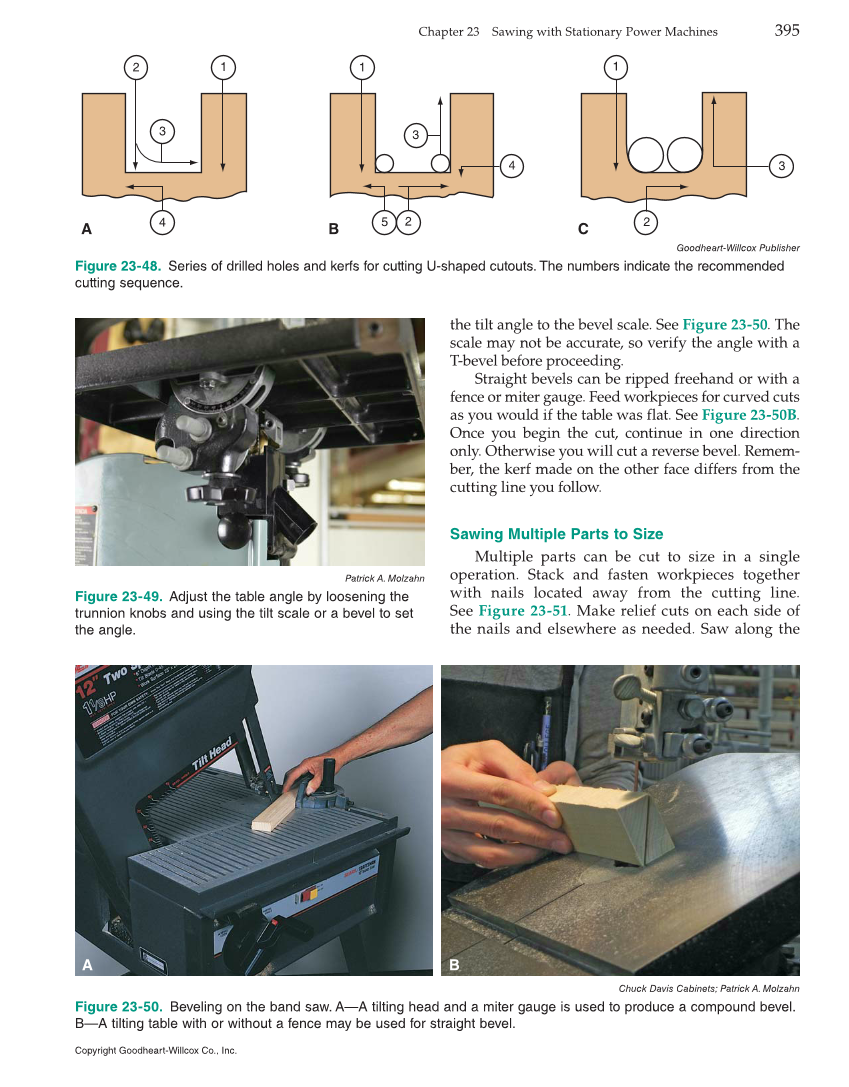

the tilt angle to the bevel scale. See Figure 23-50. The scale may not be accurate, so verify the angle with a T-bevel before proceeding. Straight bevels can be ripped freehand or with a fence or miter gauge. Feed workpieces for curved cuts as you would if the table was flat. See Figure 23-50B. Once you begin the cut, continue in one direction only. Otherwise you will cut a reverse bevel. Remem- ber, the kerf made on the other face differs from the cutting line you follow. Sawing Multiple Parts to Size Multiple parts can be cut to size in a single operation. Stack and fasten workpieces together with nails located away from the cutting line. See Figure 23-51. Make relief cuts on each side of the nails and elsewhere as needed. Saw along the Chuck Davis Cabinets Patrick A. Molzahn Figure 23-50. Beveling on the band saw. A—A tilting head and a miter gauge is used to produce a compound bevel. B—A tilting table with or without a fence may be used for straight bevel. A B Goodheart-Willcox Publisher Figure 23-48. Series of drilled holes and kerfs for cutting U-shaped cutouts. The numbers indicate the recommended cutting sequence. 1 2 2 2 3 3 3 4 4 5 1 1 A B C Patrick A. Molzahn Figure 23-49. Adjust the table angle by loosening the trunnion knobs and using the tilt scale or a bevel to set the angle. Chapter 23 Sawing with Stationary Power Machines 395 Copyright Goodheart-Willcox Co., Inc.
