168

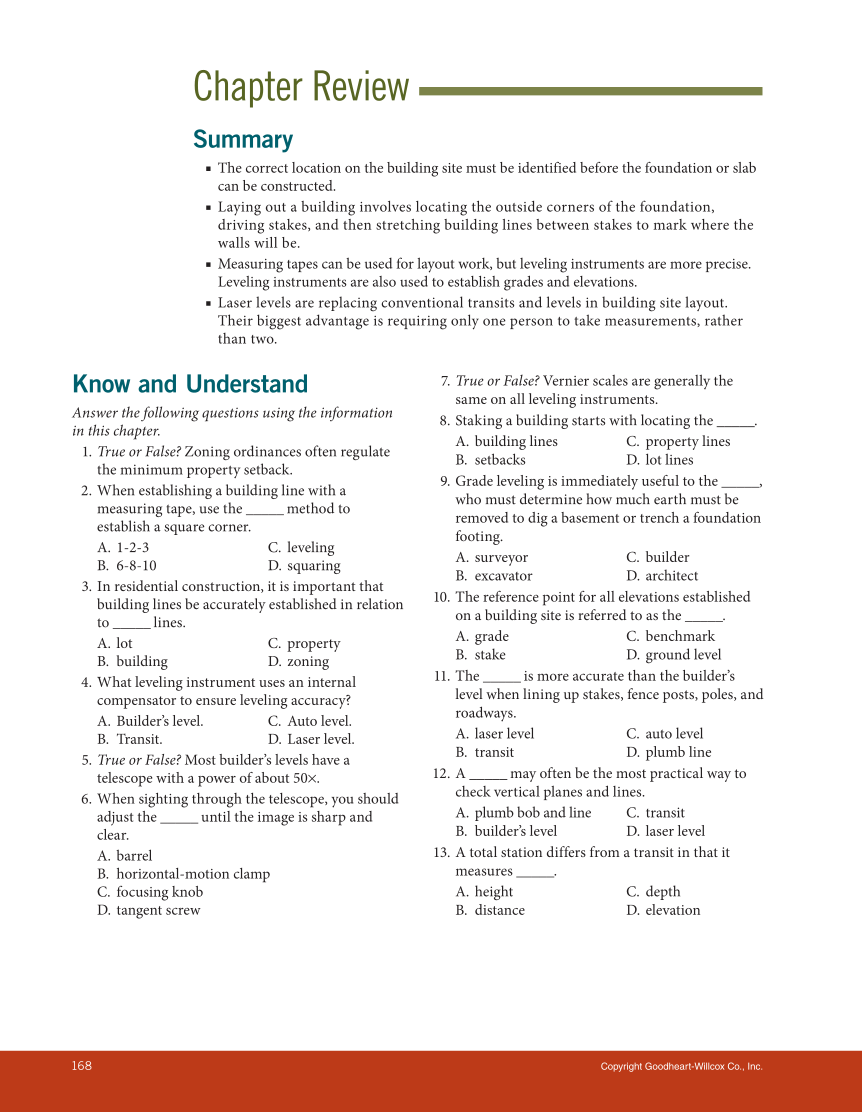

Chapter Review
Summary■
■ The correct location on the building site must be identified before the foundation or slab
can be constructed. ■
■ Laying out a building involves locating the outside corners of the foundation,
driving stakes, and then stretching building lines between stakes to mark where the
walls will be. ■
■ Measuring tapes can be used for layout work, but leveling instruments are more precise.
Leveling instruments are also used to establish grades and elevations. ■
■ Laser levels are replacing conventional transits and levels in building site layout.
Their biggest advantage is requiring only one person to take measurements, rather
than two.
Know and Understand
Answer the following questions using the information
in this chapter.
1. True or False? Zoning ordinances often regulate
the minimum property setback.
2. When establishing a building line with a
measuring tape, use the _____method to
establish a square corner.
A. 1-2-3
B. 6-8-10
C. leveling
D. squaring
3. In residential construction, it is important that
building lines be accurately established in relation
to _____lines.
A. lot
B. building
C. property
D. zoning
4. What leveling instrument uses an internal
compensator to ensure leveling accuracy?
A. Builder’s level.
B. Transit.
C. Auto level.
D. Laser level.
5. True or False? Most builder’s levels have a
telescope with a power of about 50×.
6. When sighting through the telescope, you should
adjust the _____until the image is sharp and
clear.
A. barrel
B. horizontal-motion clamp
C. focusing knob
D. tangent screw
7. True or False? Vernier scales are generally the
same on all leveling instruments.
8. Staking a building starts with locating the _____.
A. building lines
B. setbacks
C. property lines
D. lot lines
9. Grade leveling is immediately useful to the _____,
who must determine how much earth must be
removed to dig a basement or trench a foundation
footing.
A. surveyor
B. excavator
C. builder
D. architect
10. The reference point for all elevations established
on a building site is referred to as the _____.
A. grade
B. stake
C. benchmark
D. ground level
11. The _____is more accurate than the builder’s
level when lining up stakes, fence posts, poles, and
roadways.
A. laser level
B. transit
C. auto level
D. plumb line
12. A _____may often be the most practical way to
check vertical planes and lines.
A. plumb bob and line
B. builder’s level
C. transit
D. laser level
13. A total station differs from a transit in that it
measures _____.
A. height
B. distance
C. depth
D. elevation
