Copyright Goodheart-Willcox Co., Inc.
256 Section 2 Foundations and Framing
Small items that are not critical to the structure can
often increase efficiency and quality of work during
the finishing stages. For example, corner blocks make
it possible to nail baseboards some distance back from
their end, Figure 11‑25. This eliminates the possibility
of splitting the wood.
Pro Tip
Proper planning and monitoring of the job are important
to avoid any unnecessary delays. A carpenter must
continually study and plan the sequence of the job so
that neither the weather nor work of other tradespeople
will cause slowdowns or bottlenecks.
Shower arm
(1/2uni2033 S.P.S.)
Optional to floor
(usually between
65uni2033 and 78uni2033)
Finished
wall
4uni2033
16uni2033
4uni2033
4uni2033 4uni2033 3uni2033
7 5/8uni2033 1 3/8uni2033
60uni2033
2 7/8uni2033
15 1/4uni2033
1 7/8uni2033
3/4uni2033
32uni2033
Note – No concealed
piping furnished
4uni2033
3uni2033
4 5/8uni2033
2 3/4uni2033
1 1/2uni2033 N.P.T. threads
1 1/2uni2033 O.D. tubing
Spout
(3/4uni2033 S.P.S.)
Rough floor
28uni2033
Finished
wall
of drain
C
C of 1/2uni2033 S.P.S. supplies
Cs of curtain rod
(usually 76uni2033 from
finished floor)
16uni2033
Cs of valves
(1 3/4uni2033 diameter
holes)
American Standard

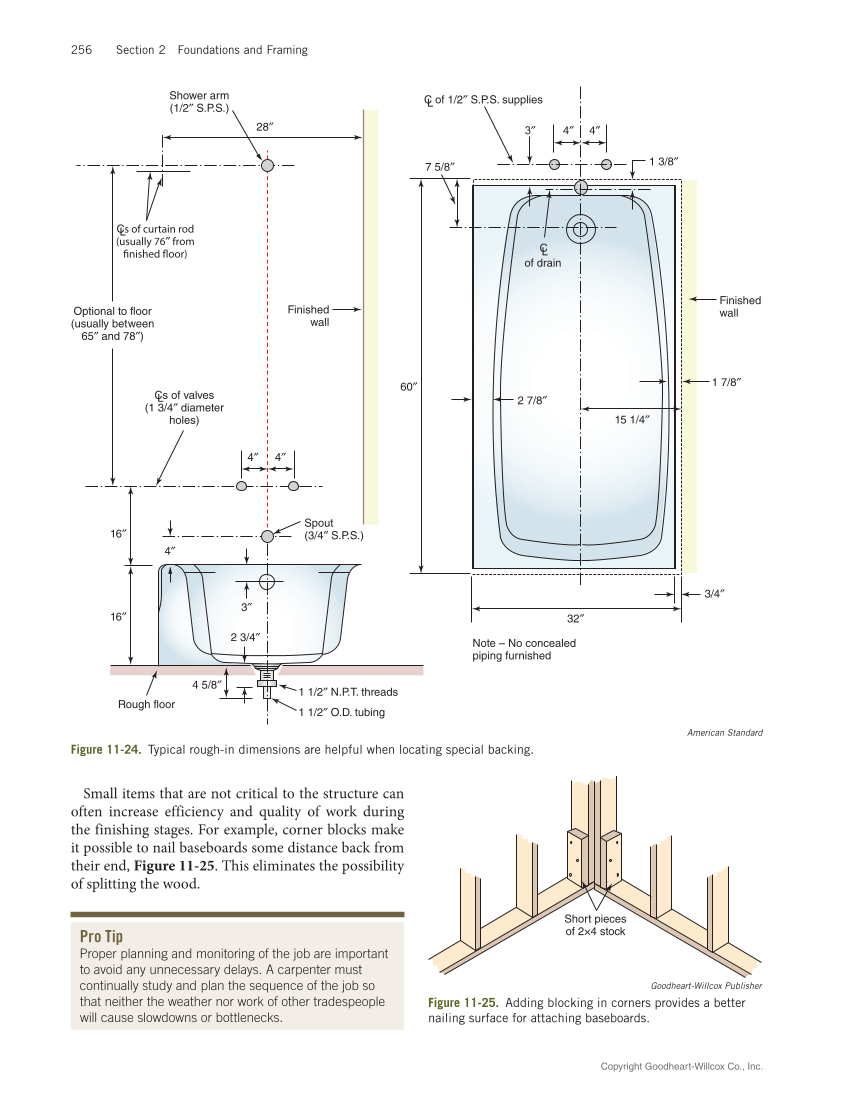

Figure 11‑24. Typical rough-in dimensions are helpful when locating special backing.
Short pieces
of 2×4 stock
Goodheart-Willcox Publisher
Figure 11‑25. Adding blocking in corners provides a better
nailing surface for attaching baseboards.
