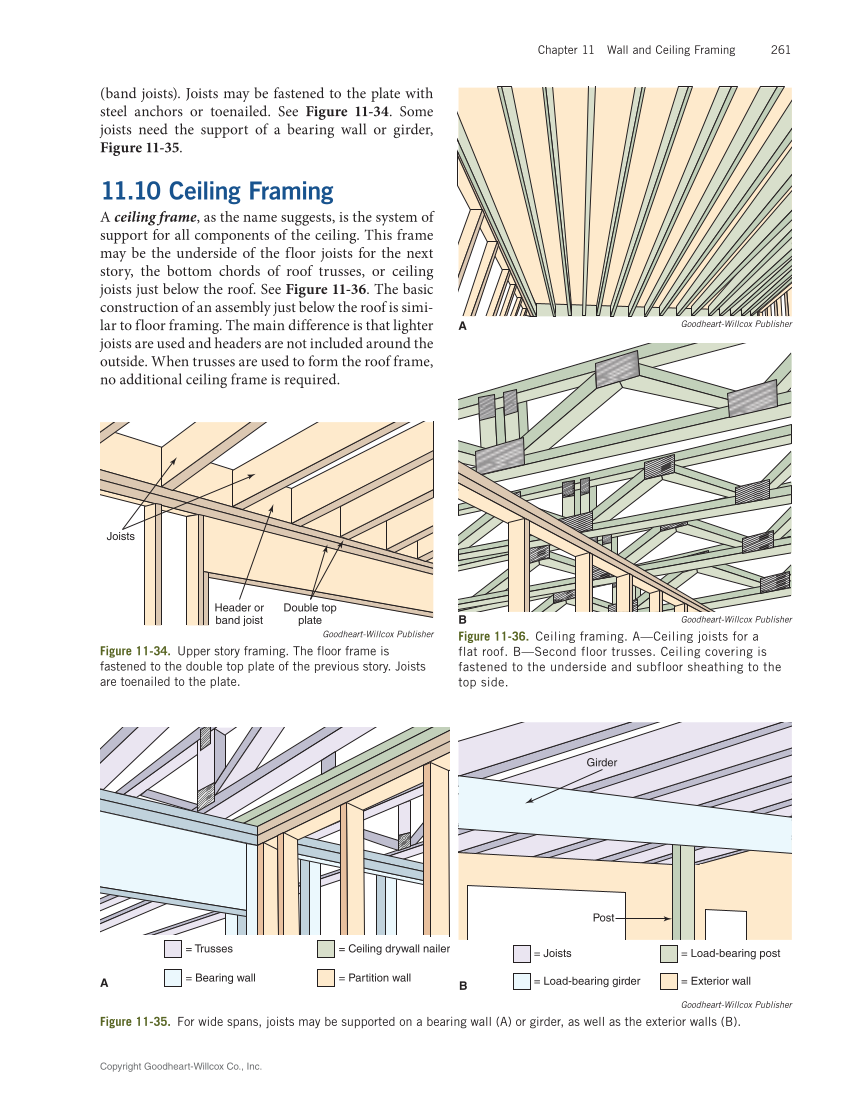

Chapter 11 Wall and Ceiling Framing 261
(band joists). Joists may be fastened to the plate with
steel anchors or toenailed. See Figure 11‑34. Some
joists need the support of a bearing wall or girder,
Figure 11‑35.
11.10 Ceiling Framing
A ceiling frame, as the name suggests, is the system of
support for all components of the ceiling. This frame
may be the underside of the floor joists for the next
story, the bottom chords of roof trusses, or ceiling
joists just below the roof. See Figure 11‑36. The basic
construction of an assembly just below the roof is simi-
lar to floor framing. The main difference is that lighter
joists are used and headers are not included around the
outside. When trusses are used to form the roof frame,
no additional ceiling frame is required.
Header or
band joist
Double top
plate
Joists
Goodheart-Willcox Publisher
Figure 11‑34. Upper story framing. The floor frame is
fastened to the double top plate of the previous story. Joists
are toenailed to the plate.
=Trusses =Ceiling drywall nailer
=Bearing wall =Partition wall A
Goodheart-Willcox Publisher
Figure 11‑35. For wide spans, joists may be supported on a bearing wall (A) or girder, as well as the exterior walls (B).
=Joists =Load-bearing post
=Load-bearing girder =Exterior wall B
Girder
Post
A Goodheart-Willcox Publisher
B Goodheart-Willcox Publisher
Figure 11‑36. Ceiling framing. A—Ceiling joists for a
flat roof. B—Second floor trusses. Ceiling covering is
fastened to the underside and subfloor sheathing to the
top side.
