266 Section 2 Foundations and Framing
This leaves space for insulation where the extra lumber
would have been used. As can be seen in the figure, an-
other savings can be had by using header hangers instead
of trimmer studs. The hanger is nailed to the rough open-
ing stud and the header slips into the top of the hanger.
Steel connecting plates can be used on single top plates
to make splices and attach adjoining walls.
To gain maximum insulation, corners are con-
structed so they can be fully insulated. This can be
accomplished with the three-stud corner shown in
Figure 11‑5 or with a two-stud corner using drywall
clips to attach the interior drywall. A two-stud corner
is shown in Figure 11‑45.
Outside
of wall
Outside
of wall
Outside
of wall
Approved Framing Connector Option
(Single- or Double-Ply Headers)
Large Opening Single Headers
Single-Ply Header
Top plate
Jack stud or approved
framing connector For many one-story builtings,
single studs at sides of rough
openings may be adequate.
Header bottom plate (to complete
rough opening at header)
Cavity insulation space (to stud
depth less single header thickness)
Single-ply load-bearing header
(flush outer face of header with
outer edge of studs)
Top plate
Cavity insulation space
Jack studs as required
3 1/8uni2033 or 3 1/2uni2033 glulam or
multiple-ply SCL lumber
Cavity insulation space
Header hanger or equivalent
Single stud at sides of rough
openings (most openings up to
48uni2033 wide)
APA-The Engineered Wood Association

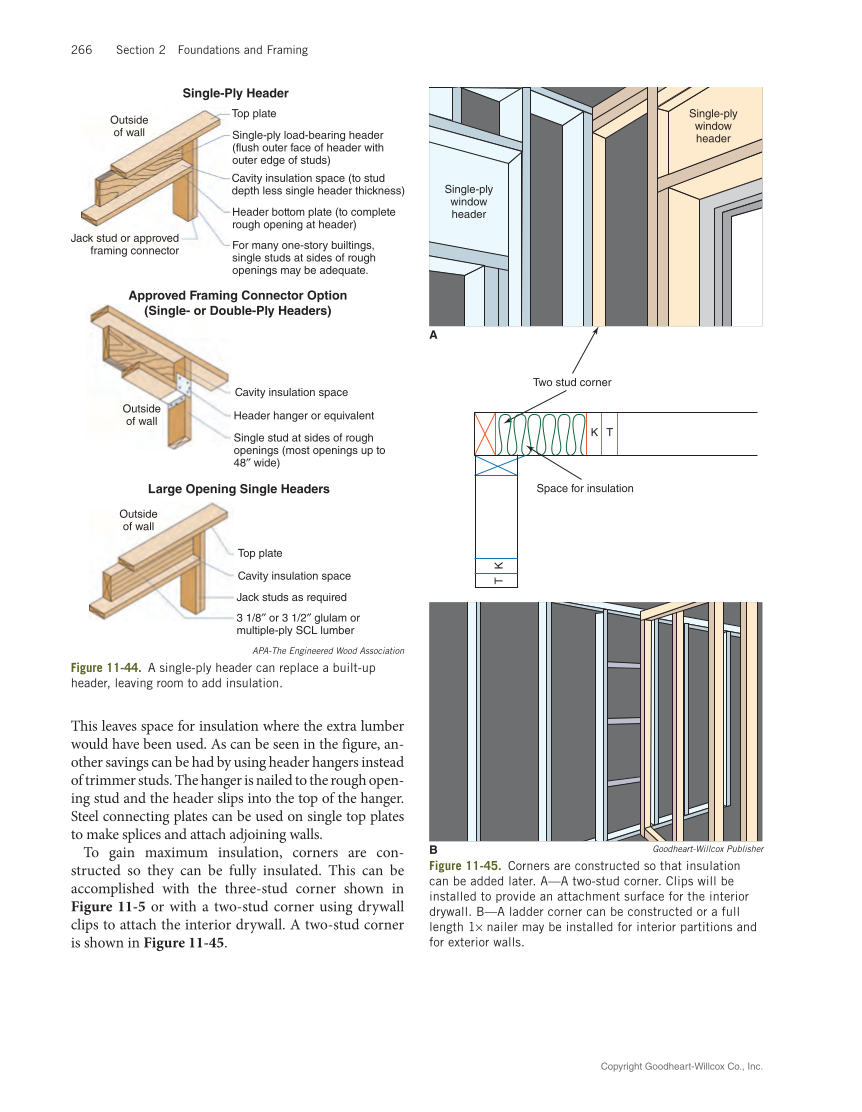

Figure 11‑44. A single-ply header can replace a built-up
header, leaving room to add insulation.
A
Single-ply
window
header
Single-ply
window
header
K T
Space for insulation
Two stud corner
B Goodheart-Willcox Publisher
Figure 11‑45. Corners are constructed so that insulation
can be added later. A—A two-stud corner. Clips will be
installed to provide an attachment surface for the interior
drywall. B—A ladder corner can be constructed or a full
length 1× nailer may be installed for interior partitions and
for exterior walls.
T
K
