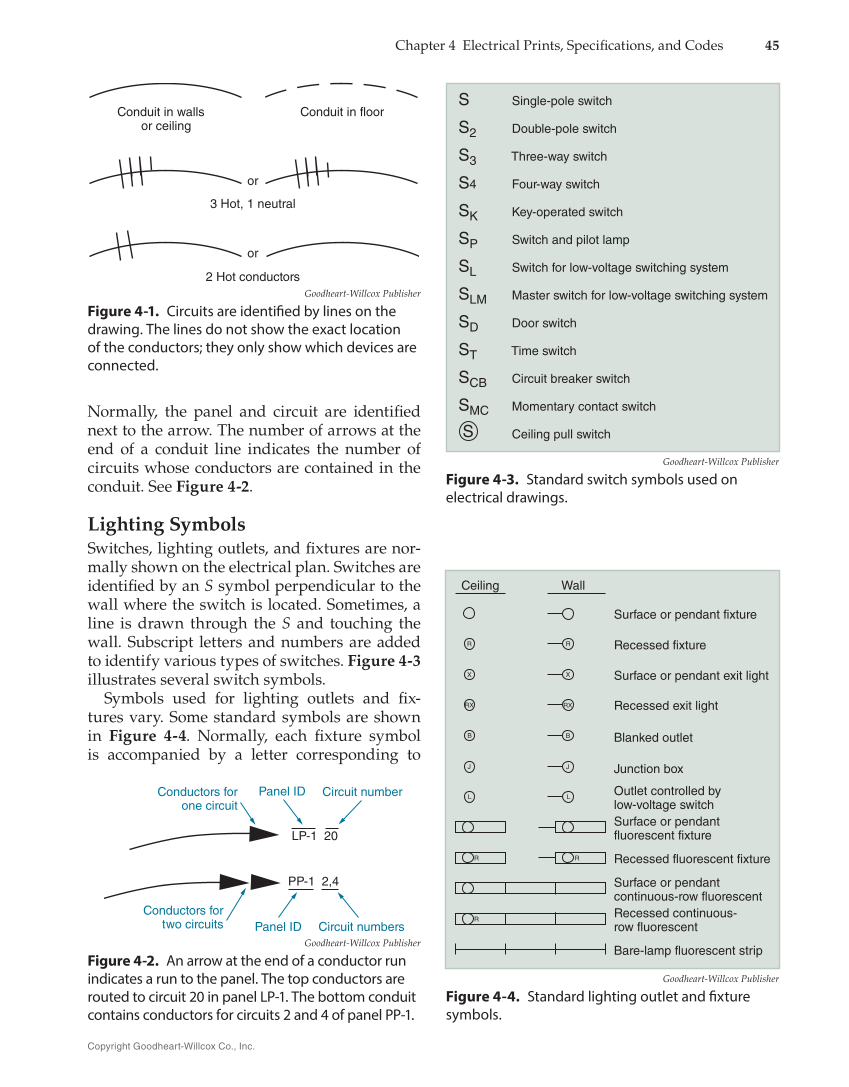

Chapter 4 Electrical Prints, Specifi cations, and Codes 45 Copyright Goodheart-Willcox Co., Inc. Normally, the panel and circuit are identifi ed next to the arrow. The number of arrows at the end of a conduit line indicates the number of circuits whose conductors are contained in the conduit. See Figure 4-2. Lighting Symbols Switches, lighting outlets, and fi xtures are nor- mally shown on the electrical plan. Switches are identifi ed by an S symbol perpendicular to the wall where the switch is located. Sometimes, a line is drawn through the S and touching the wall. Subscript letters and numbers are added to identify various types of switches. Figure 4-3 illustrates several switch symbols. Symbols used for lighting outlets and fi x- tures vary. Some standard symbols are shown in Figure 4-4. Normally, each fi xture symbol is accompanied by a letter corresponding to Goodheart-Willcox Publisher Figure 4-1. Circuits are identifi ed by lines on the drawing. The lines do not show the exact location of the conductors they only show which devices are connected. Conduit in walls or ceiling Conduit in floor or 3 Hot, 1 neutral or 2 Hot conductors LP-1 20 PP-1 2,4 Conductors for one circuit Panel ID Circuit number Conductors for two circuits Panel ID Circuit numbers Goodheart-Willcox Publisher Figure 4-2. An arrow at the end of a conductor run indicates a run to the panel. The top conductors are routed to circuit 20 in panel LP-1. The bottom conduit contains conductors for circuits 2 and 4 of panel PP-1. S Single-pole switch S2 Double-pole switch S3 Three-way switch S4 Four-way switch SK Key-operated switch SP Switch and pilot lamp SL Switch for low-voltage switching system SLM Master switch for low-voltage switching system SD Door switch ST Time switch SCB Circuit breaker switch SMC Momentary contact switch Ceiling pull switch S Goodheart-Willcox Publisher Figure 4-3. Standard switch symbols used on electrical drawings. Surface or pendant fixture Recessed fixture Surface or pendant exit light Recessed exit light Blanked outlet Junction box Outlet controlled by low-voltage switch Surface or pendant fluorescent fixture Recessed fluorescent fixture Surface or pendant continuous-row fluorescent Bare-lamp fluorescent strip Recessed continuous- row fluorescent Ceiling Wall RX R X B J L L J B RX R X R R R Goodheart-Willcox Publisher Figure 4-4. Standard lighting outlet and fi xture symbols.
