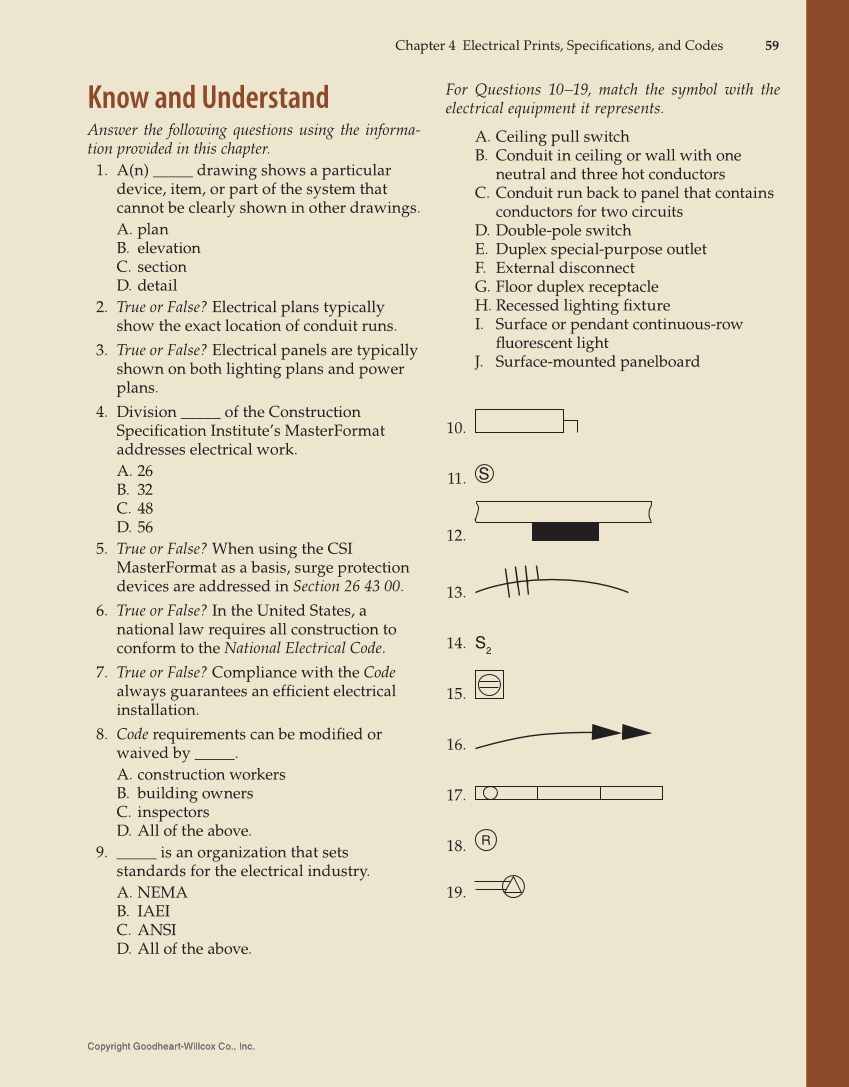

Chapter 4 Electrical Prints, Specifi cations, and Codes 59 Copyright Goodheart-Willcox Co., Inc. Copyright Goodheart-Willcox Co., Inc. Know and Understand Answer the following questions using the informa- tion provided in this chapter. 1. A(n) _____ drawing shows a particular device, item, or part of the system that cannot be clearly shown in other drawings. A. plan B. elevation C. section D. detail 2. True or False? Electrical plans typically show the exact location of conduit runs. 3. True or False? Electrical panels are typically shown on both lighting plans and power plans. 4. Division _____ of the Construction Specifi cation Institute’s MasterFormat addresses electrical work. A. 26 B. 32 C. 48 D. 56 5. True or False? When using the CSI MasterFormat as a basis, surge protection devices are addressed in Section 26 43 00. 6. True or False? In the United States, a national law requires all construction to conform to the National Electrical Code. 7. True or False? Compliance with the Code always guarantees an effi cient electrical installation. 8. Code requirements can be modifi ed or waived by _____. A. construction workers B. building owners C. inspectors D. All of the above. 9. _____ is an organization that sets standards for the electrical industry. A. NEMA B. IAEI C. ANSI D. All of the above. For Questions 10–19, match the symbol with the electrical equipment it represents. A. Ceiling pull switch B. Conduit in ceiling or wall with one neutral and three hot conductors C. Conduit run back to panel that contains conductors for two circuits D. Double-pole switch E. Duplex special-purpose outlet F. External disconnect G. Floor duplex receptacle H. Recessed lighting fi xture I. Surface or pendant continuous-row fl uorescent light J. Surface-mounted panelboard 10. 11. S 12. 13. 14. S 2 15. 16. 17. 18. R 19.
