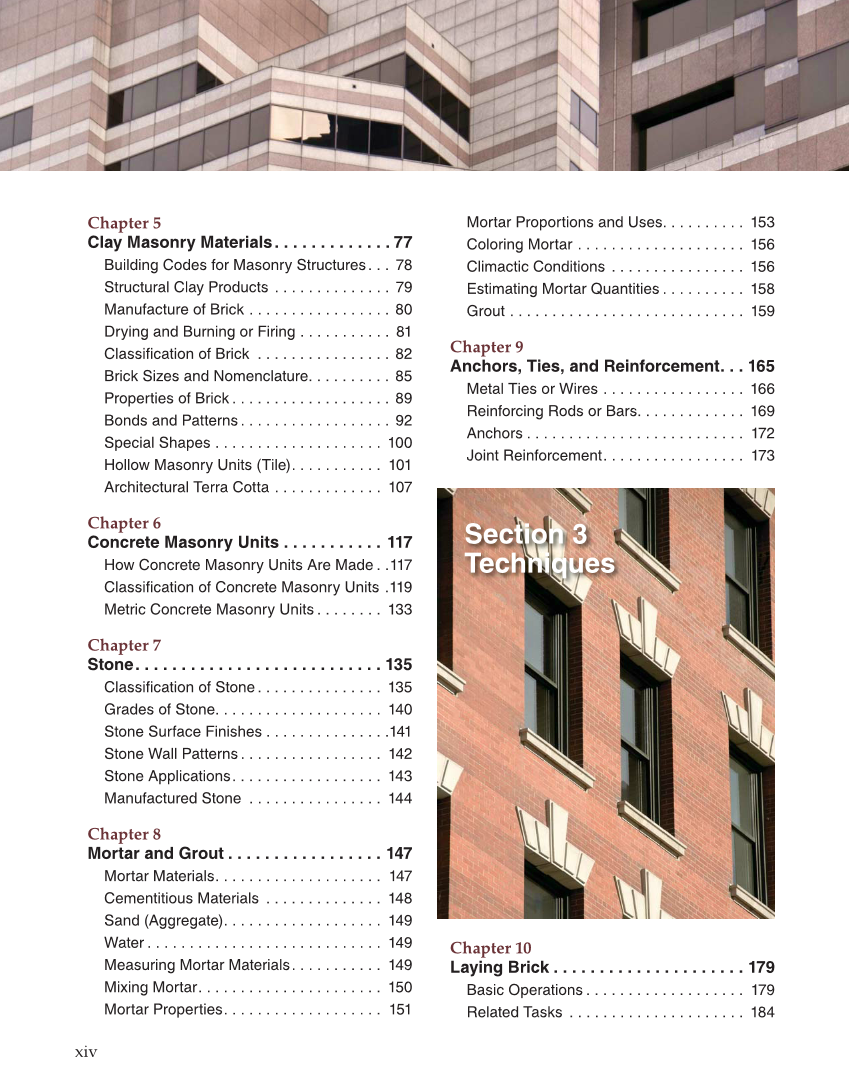

xiv Chapter 5 Clay Masonry Materials. . . . . . . . . . . . . 77 Building Codes for Masonry Structures. . . 78 Structural Clay Products . . . . . . . . . . . . . . 79 Manufacture of Brick . . . . . . . . . . . . . . . . . 80 Drying and Burning or Firing . . . . . . . . . . . 81 Classification of Brick . . . . . . . . . . . . . . . . 82 Brick Sizes and Nomenclature. . . . . . . . . . 85 Properties of Brick . . . . . . . . . . . . . . . . . . . 89 Bonds and Patterns. . . . . . . . . . . . . . . . . . 92 Special Shapes . . . . . . . . . . . . . . . . . . . . 100 Hollow Masonry Units (Tile). . . . . . . . . . . 101 Architectural Terra Cotta . . . . . . . . . . . . . 107 Chapter 6 Concrete Masonry Units . . . . . . . . . . . 117 How Concrete Masonry Units Are Made . .117 Classification of Concrete Masonry Units .119 Metric Concrete Masonry Units . . . . . . . . 133 Chapter 7 Stone. . . . . . . . . . . . . . . . . . . . . . . . . . . 135 Classification of Stone. . . . . . . . . . . . . . . 135 Grades of Stone. . . . . . . . . . . . . . . . . . . . 140 Stone Surface Finishes . . . . . . . . . . . . . . .141 Stone Wall Patterns. . . . . . . . . . . . . . . . . 142 Stone Applications. . . . . . . . . . . . . . . . . . 143 Manufactured Stone . . . . . . . . . . . . . . . . 144 Chapter 8 Mortar and Grout . . . . . . . . . . . . . . . . . 147 Mortar Materials. . . . . . . . . . . . . . . . . . . . 147 Cementitious Materials . . . . . . . . . . . . . . 148 Sand (Aggregate). . . . . . . . . . . . . . . . . . . 149 Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149 Measuring Mortar Materials. . . . . . . . . . . 149 Mixing Mortar. . . . . . . . . . . . . . . . . . . . . . 150 Mortar Properties. . . . . . . . . . . . . . . . . . . 151 Mortar Proportions and Uses. . . . . . . . . . 153 Coloring Mortar . . . . . . . . . . . . . . . . . . . . 156 Climactic Conditions . . . . . . . . . . . . . . . . 156 Estimating Mortar Quantities . . . . . . . . . . 158 Grout . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159 Chapter 9 Anchors, Ties, and Reinforcement. . . 165 Metal Ties or Wires . . . . . . . . . . . . . . . . . 166 Reinforcing Rods or Bars. . . . . . . . . . . . . 169 Anchors . . . . . . . . . . . . . . . . . . . . . . . . . . 172 Joint Reinforcement. . . . . . . . . . . . . . . . . 173 Section 3 Techniques Chapter 10 Laying Brick . . . . . . . . . . . . . . . . . . . . . 179 Basic Operations . . . . . . . . . . . . . . . . . . . 179 Related Tasks . . . . . . . . . . . . . . . . . . . . . 184
