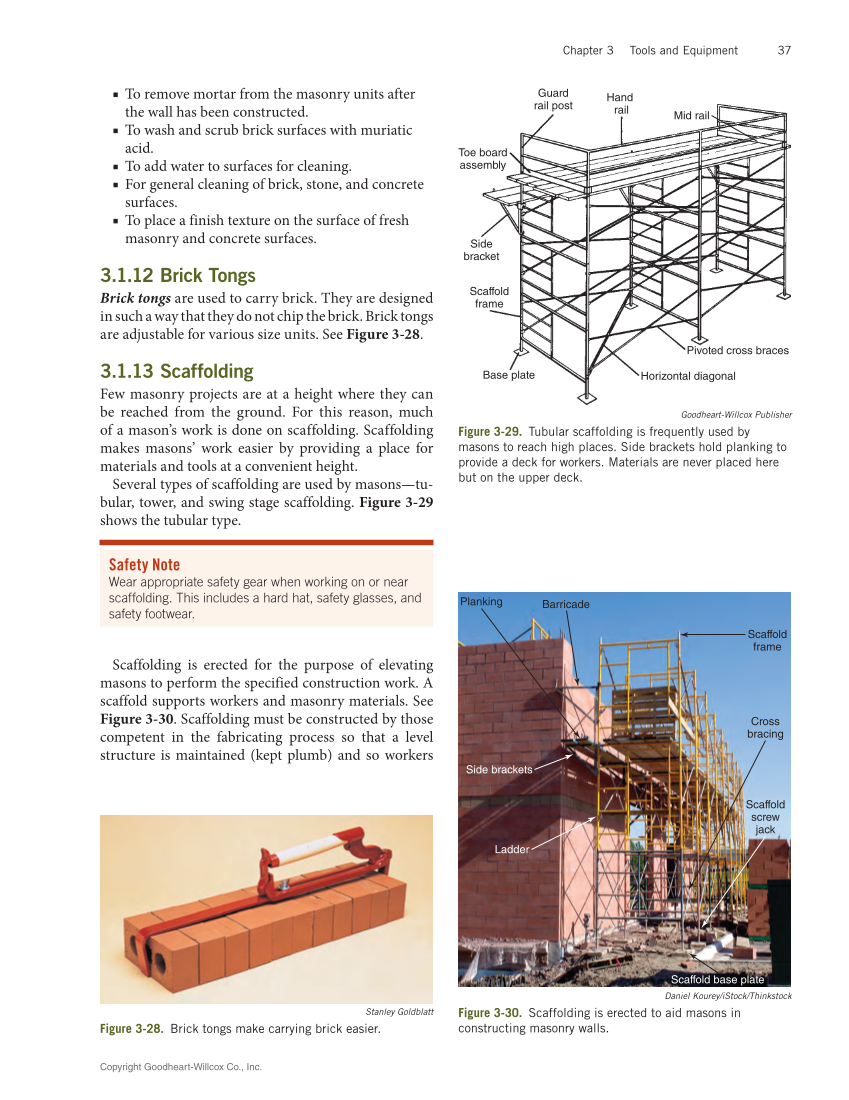

Copyright Goodheart-Willcox Co., Inc. Chapter 3 Tools and Equipment 37 ■ ■ To remove mortar from the masonry units after the wall has been constructed. ■ ■ To wash and scrub brick surfaces with muriatic acid. ■ ■■ To add water to surfaces for cleaning. ■ For general cleaning of brick, stone, and concrete surfaces. ■ ■ To place a finish texture on the surface of fresh masonry and concrete surfaces. 3.1.12 Brick Tongs Brick tongs are used to carry brick. They are designed in such a way that they do not chip the brick. Brick tongs are adjustable for various size units. See Figure 3‑28. 3.1.13 Scaffolding Few masonry projects are at a height where they can be reached from the ground. For this reason, much of a mason’s work is done on scaffolding. Scaffolding makes masons’ work easier by providing a place for materials and tools at a convenient height. Several types of scaffolding are used by masons—tu- bular, tower, and swing stage scaffolding. Figure 3‑29 shows the tubular type. Scaffolding is erected for the purpose of elevating masons to perform the specified construction work. A scaffold supports workers and masonry materials. See Figure 3‑30. Scaffolding must be constructed by those competent in the fabricating process so that a level structure is maintained (kept plumb) and so workers Safety Note Wear appropriate safety gear when working on or near scaffolding. This includes a hard hat, safety glasses, and safety footwear. Stanley Goldblatt Figure 3‑28. Brick tongs make carrying brick easier. Guard rail post Hand rail Mid rail Toe board assembly Side bracket Scaffold frame Base plate Horizontal diagonal Pivoted cross braces Goodheart-Willcox Publisher Figure 3‑29. Tubular scaffolding is frequently used by masons to reach high places. Side brackets hold planking to provide a deck for workers. Materials are never placed here but on the upper deck. Scaffold frame Cross bracing Scaffold screw jack Barricade Planking Side brackets Ladder Scaffold base plate Daniel Kourey/iStock/Thinkstock Figure 3‑30. Scaffolding is erected to aid masons in constructing masonry walls.
