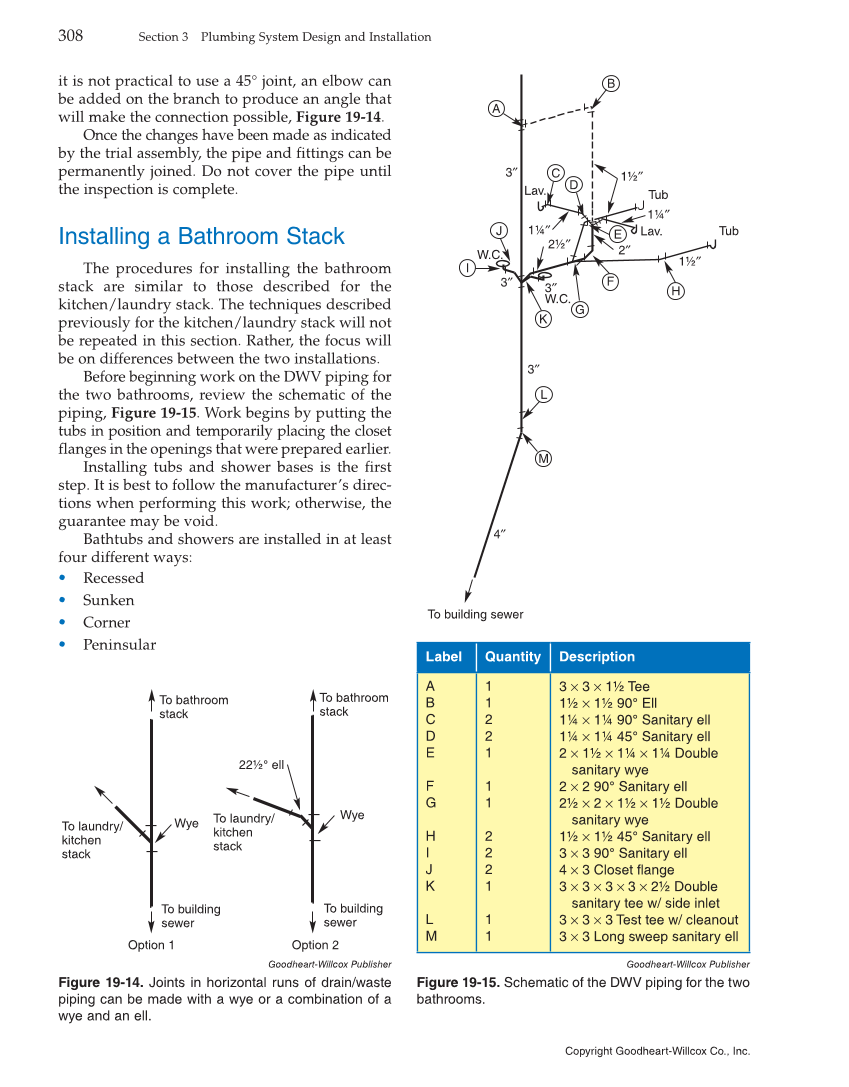

it is not practical to use a 45° joint, an elbow can be added on the branch to produce an angle that will make the connection possible, Figure 19-14. Once the changes have been made as indicated by the trial assembly, the pipe and fittings can be permanently joined. Do not cover the pipe until the inspection is complete. Installing a Bathroom Stack The procedures for installing the bathroom stack are similar to those described for the kitchen/laundry stack. The techniques described previously for the kitchen/laundry stack will not be repeated in this section. Rather, the focus will be on differences between the two installations. Before beginning work on the DWV piping for the two bathrooms, review the schematic of the piping, Figure 19-15. Work begins by putting the tubs in position and temporarily placing the closet flanges in the openings that were prepared earlier. Installing tubs and shower bases is the first step. It is best to follow the manufacturer’s direc- tions when performing this work otherwise, the guarantee may be void. Bathtubs and showers are installed in at least four different ways: • Recessed • Sunken • Corner • Peninsular Wye To bathroom stack To laundry/ kitchen stack Wye To bathroom stack To laundry/ kitchen stack 22½° ell To building sewer To building sewer Option 1 Option 2 Goodheart-Willcox Publisher Figure 19-14. Joints in horizontal runs of drain/waste piping can be made with a wye or a combination of a wye and an ell. Goodheart-Willcox Publisher Figure 19-15. Schematic of the DWV piping for the two bathrooms. Label Quantity Description A B C D E F G H I J K L M 1 1 2 2 1 1 1 2 2 2 1 1 1 3 × 3 × 1½ Tee 1½ × 1½ 90° Ell 1¼ × 1¼ 90° Sanitary ell 1¼ × 1¼ 45° Sanitary ell 2 × 1½ × 1¼ × 1¼ Double sanitary wye 2 × 2 90° Sanitary ell 2½ × 2 × 1½ × 1½ Double sanitary wye 1½ × 1½ 45° Sanitary ell 3 × 3 90° Sanitary ell 4 × 3 Closet flange 3 × 3 × 3 × 3 × 2½ Double sanitary tee w/ side inlet 3 × 3 × 3 Test tee w/ cleanout 3 × 3 Long sweep sanitary ell Lav. Lav. Tub Tub W.C. W.C. 1½″ 1½″ 1¼″ 1¼″ 2½″ 2″ 3″ 3″ 3″ 4″ To building sewer 3″ A B C D E F G H J K L M I 308 Section 3 Plumbing System Design and Installation Copyright Goodheart-Willcox Co., Inc.
