Section 2 Installation
allows the utility to remove the meter without
having to detach any cables. The meter socket
is contained inside the meter enclosure, which
is the box that attaches to the service conduit.
The meter socket and enclosure are usually sold
together and referred to as a meter socket. See
Figure 10-15.
Service conductors enter the enclosure and
are secured to the line-side lugs of the socket.
Note that the neutral conductor is always
connected to the center contact and continues
essentially uninterrupted through the meter
socket on its journey to the service main discon-
nect or panel. The meter itself will be installed
by the utility when the service drop or lateral
is completed.
Service
entrance
conductors
Insulators
Roof
Service head
Mast
Rain boot
Stud
Sheathing
Pipe clamp
with lag screw
into structure
Siding
Conduit
Watertight
hub
Meter socket
Insulator is mounted
on the mast
Insulator is mounted
on the building
Service head
Service insulator
bracket is mounted
to the building
Service
entrance
conductors
Service
entrance
conductors
Cable clamps
W.P. connector
Meter
socket

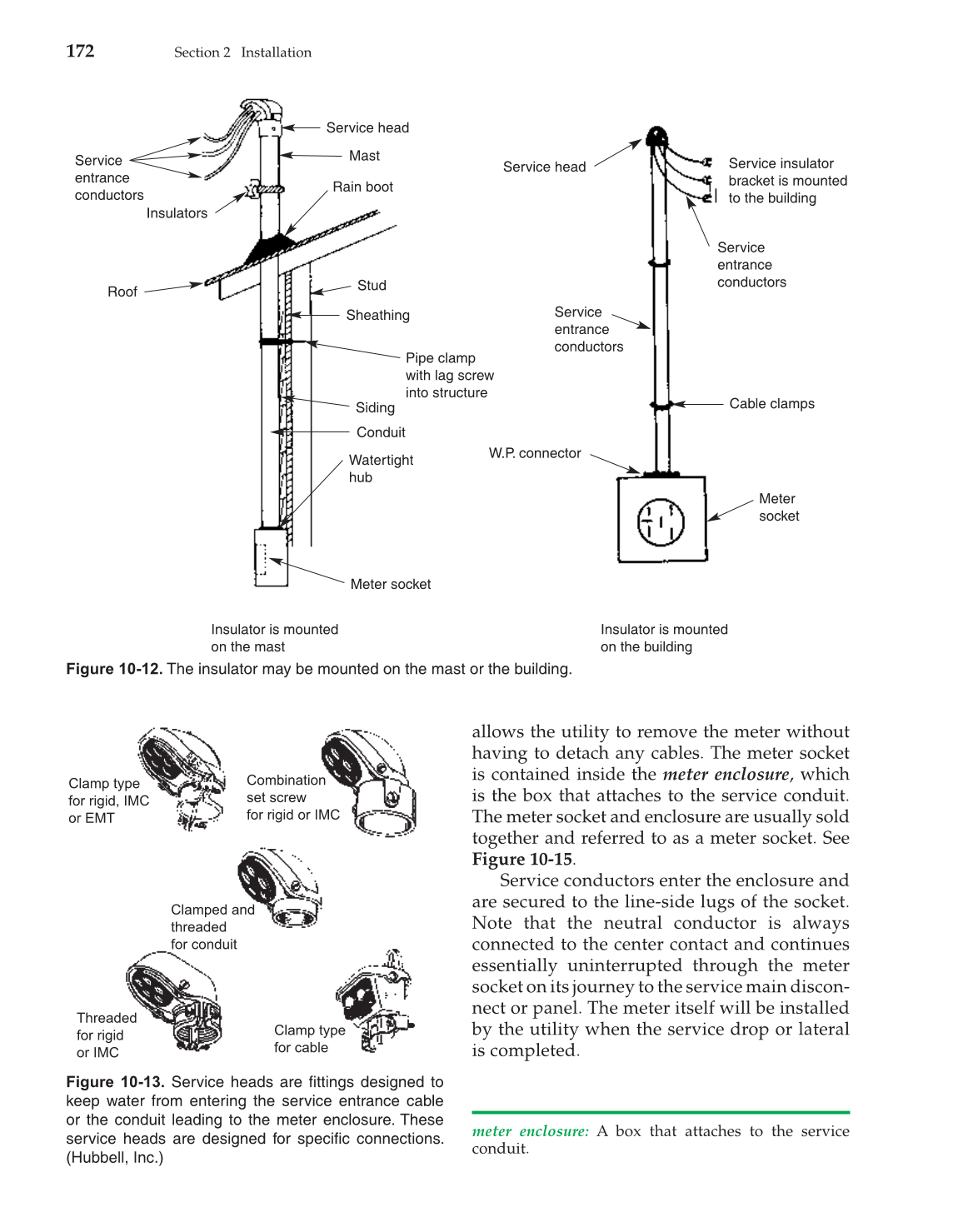

Figure 10-12. The insulator may be mounted on the mast or the building.
Clamp type
for rigid, IMC
or EMT
Combination
set screw
for rigid or IMC
Clamped and
threaded
for conduit
Threaded
for rigid
or IMC
Clamp type
for cable
Figure 10-13. Service heads are fi ttings designed to
keep water from entering the service entrance cable
or the conduit leading to the meter enclosure. These
service heads are designed for specifi c connections.
(Hubbell, Inc.)
meter enclosure: A box that attaches to the service
conduit.
