Chapter 4 Wiring Systems
79
Copyright Goodheart-Willcox Co., Inc.

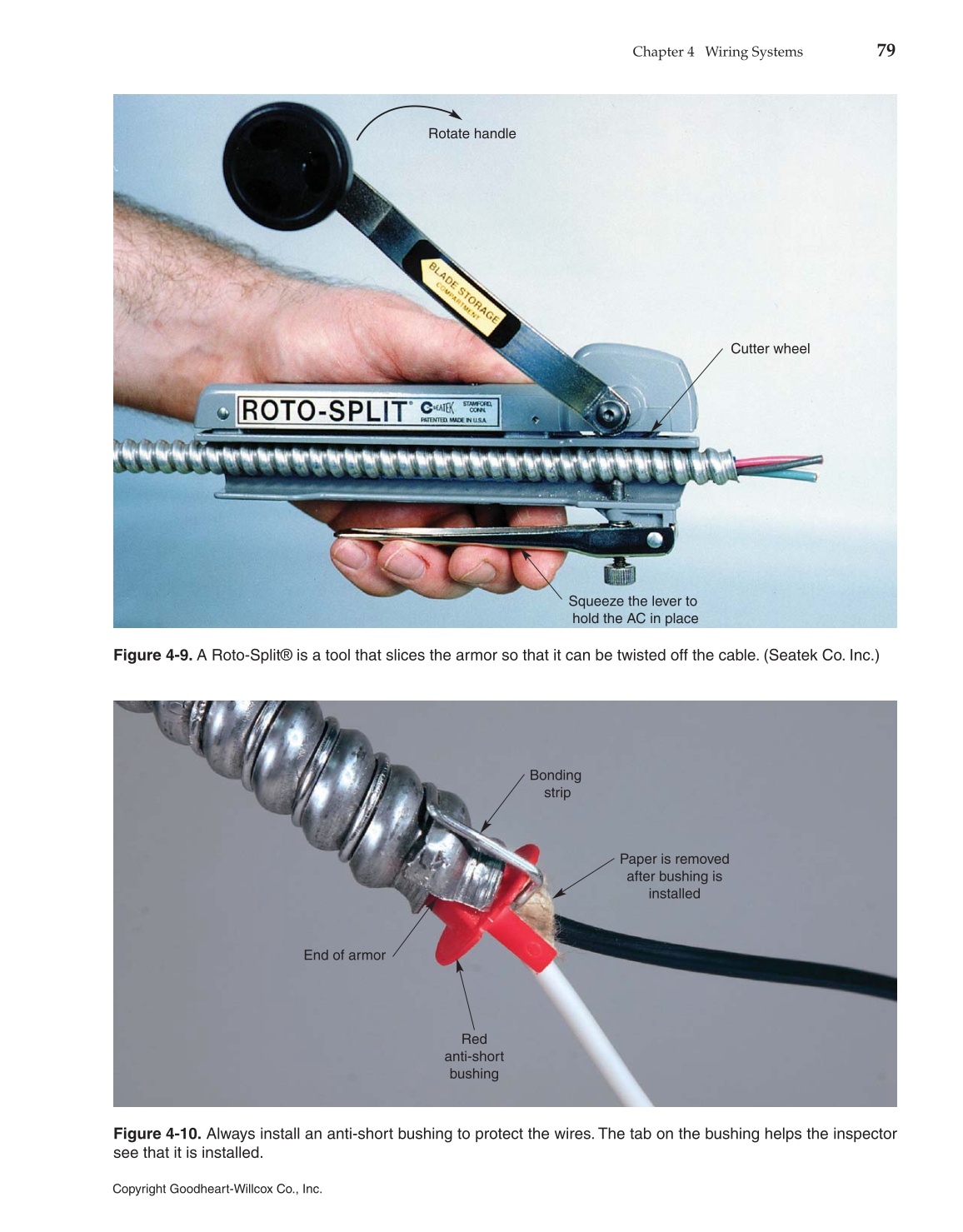

Figure 4-9. A Roto-Split® is a tool that slices the armor so that it can be twisted off the cable. (Seatek Co. Inc.)
Figure 4-10. Always install an anti-short bushing to protect the wires. The tab on the bushing helps the inspector
see that it is installed.
Rotate handle
Cutter wheel
Squeeze the lever to
hold the AC in place
Bonding
strip
End of armor
Red
anti-short
bushing
Paper is removed
after bushing is
installed
