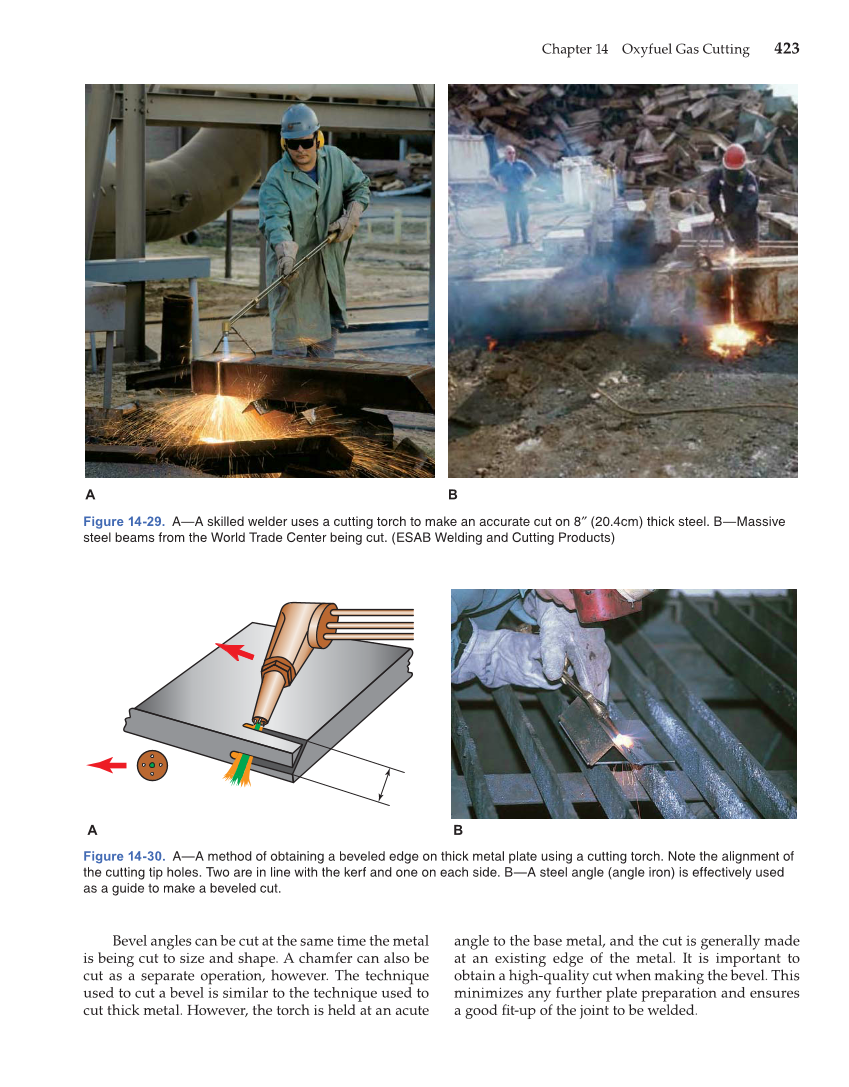

Chapter 14 Oxyfuel Gas Cutting 423 Bevel angles can be cut at the same time the metal is being cut to size and shape. A chamfer can also be cut as a separate operation, however. The technique used to cut a bevel is similar to the technique used to cut thick metal. However, the torch is held at an acute angle to the base metal, and the cut is generally made at an existing edge of the metal. It is important to obtain a high-quality cut when making the bevel. This minimizes any further plate preparation and ensures a good fi t-up of the joint to be welded. Figure 14-29. A—A skilled welder uses a cutting torch to make an accurate cut on 8″ (20.4cm) thick steel. B—Massive steel beams from the World Trade Center being cut. (ESAB Welding and Cutting Products) A B Figure 14-30. A—A method of obtaining a beveled edge on thick metal plate using a cutting torch. Note the alignment of the cutting tip holes. Two are in line with the kerf and one on each side. B—A steel angle (angle iron) is effectively used as a guide to make a beveled cut. A B
