Unit 10 Foundation Prints 181

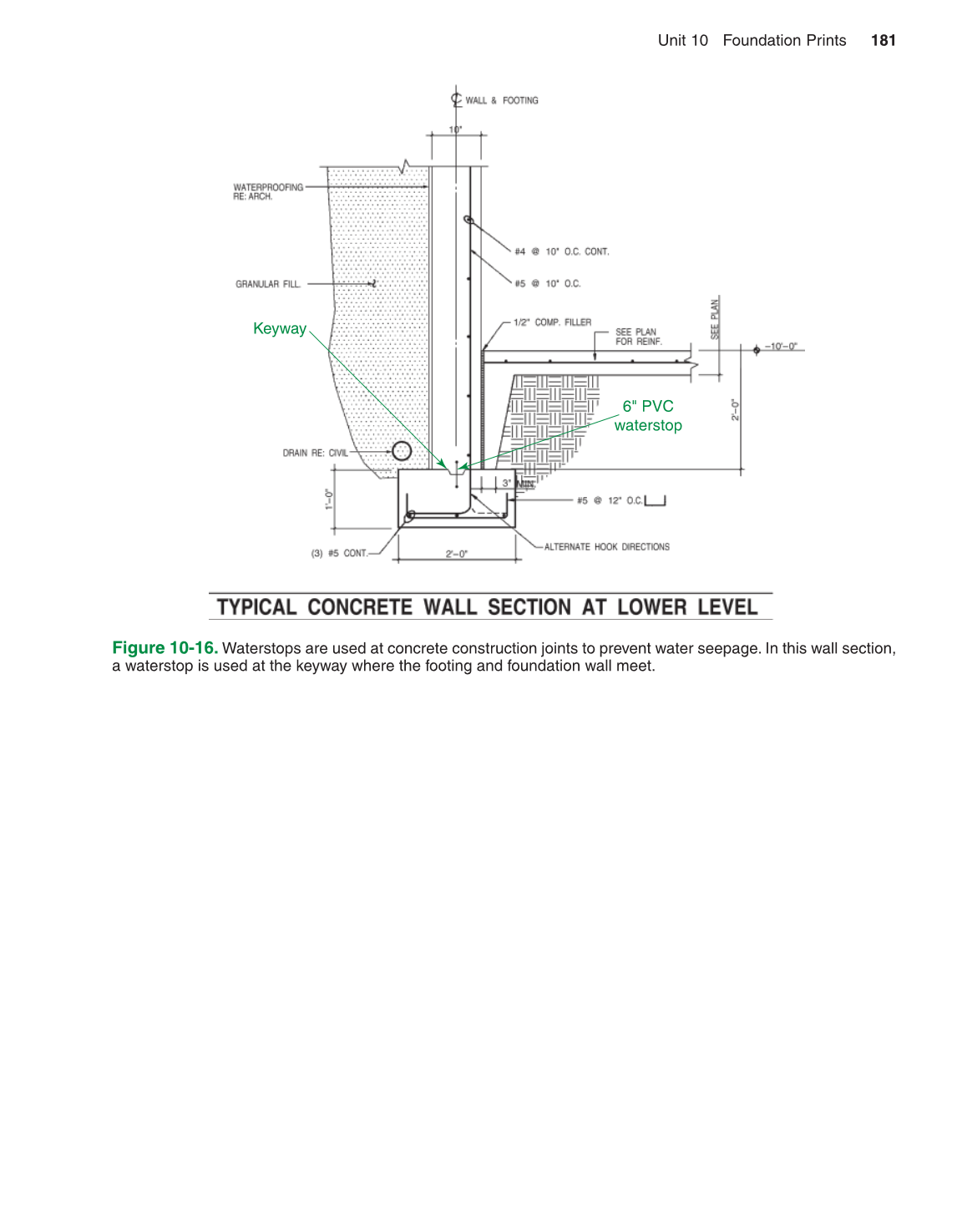

Figure 10-16.
Waterstops are used at concrete construction joints to prevent water seepage. In this wall section,
a waterstop is used at the keyway where the footing and foundation wall meet.
Keyway
6" PVC
waterstop
