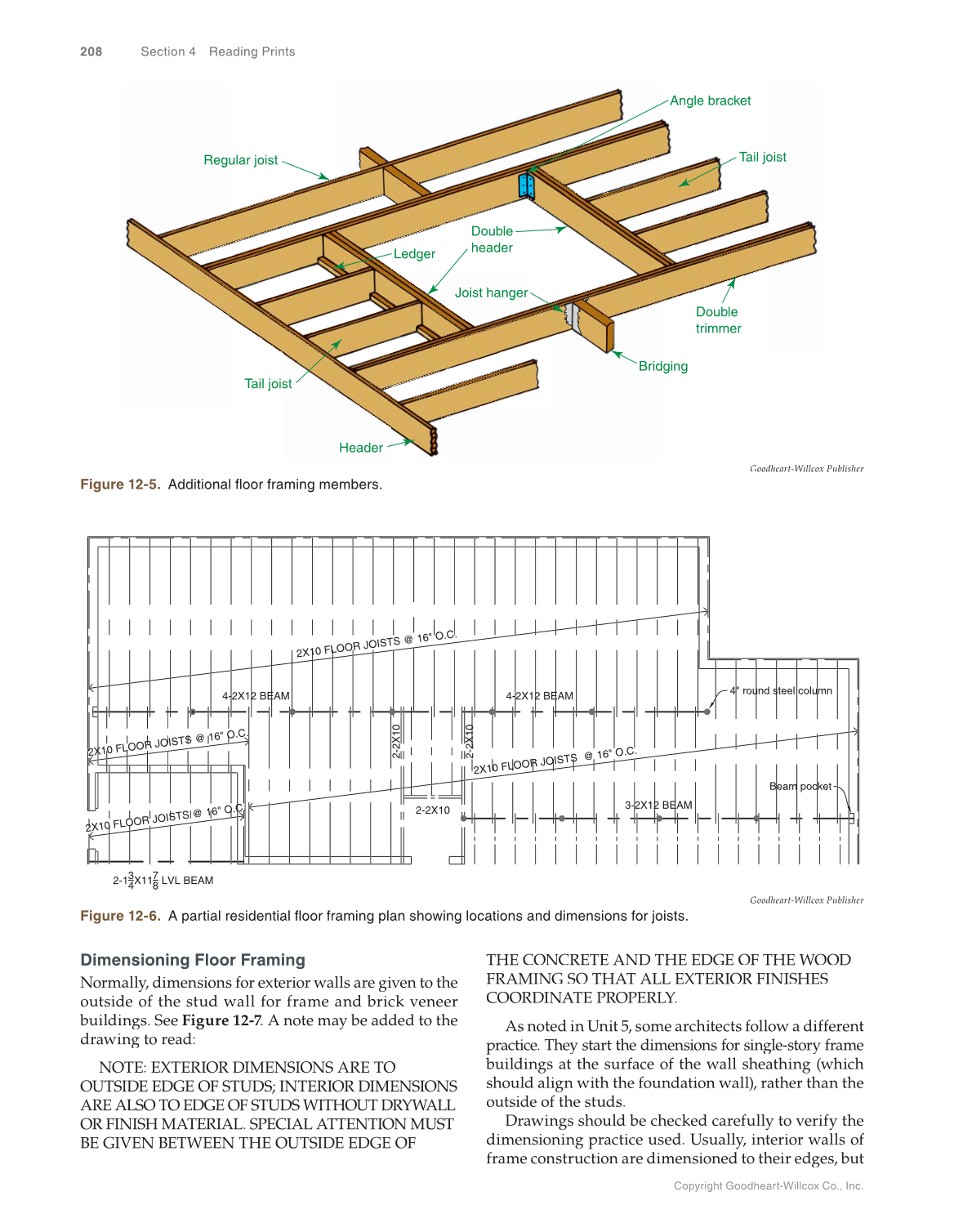

Copyright Goodheart-Willcox Co., Inc. 208 Section 4 Reading Prints THE CONCRETE AND THE EDGE OF THE WOOD FRAMING SO THAT ALL EXTERIOR FINISHES COORDINATE PROPERLY. As noted in Unit 5, some architects follow a different practice. They start the dimensions for single-story frame buildings at the surface of the wall sheathing (which should align with the foundation wall), rather than the outside of the studs. Drawings should be checked carefully to verify the dimensioning practice used. Usually, interior walls of frame construction are dimensioned to their edges, but Dimensioning Floor Framing Normally, dimensions for exterior walls are given to the outside of the stud wall for frame and brick veneer buildings. See Figure 12-7. A note may be added to the 7 7 drawing to read: NOTE: EXTERIOR DIMENSIONS ARE TO OUTSIDE EDGE OF STUDS INTERIOR DIMENSIONS ARE ALSO TO EDGE OF STUDS WITHOUT DRYWALL OR FINISH MATERIAL. SPECIAL ATTENTION MUST BE GIVEN BETWEEN THE OUTSIDE EDGE OF Header Angle bracket Tail joist Ledger Joist hanger Regular joist Double header Tail joist Bridging Double trimmer Goodheart-Willcox Publisher Figure 12-5. Additional floor framing members. 2X10 FLOOR JOISTS @ 16" O.C. 4-2X12 BEAM 2X10 FLOOR JOISTS @ 16" O.C. 2X10 FLOOR JOISTS @ 16" O.C. 4-2X12 BEAM 2-13X117 4 8 LVL BEAM 2X10 FLOOR JOISTS @ 16" O.C. 2-2X10 2-2X10 2-2X10 4" round steel column 3-2X12 BEAM Beam pocket Goodheart-Willcox Publisher Figure 12-6. A partial residential floor framing plan showing locations and dimensions for joists.
