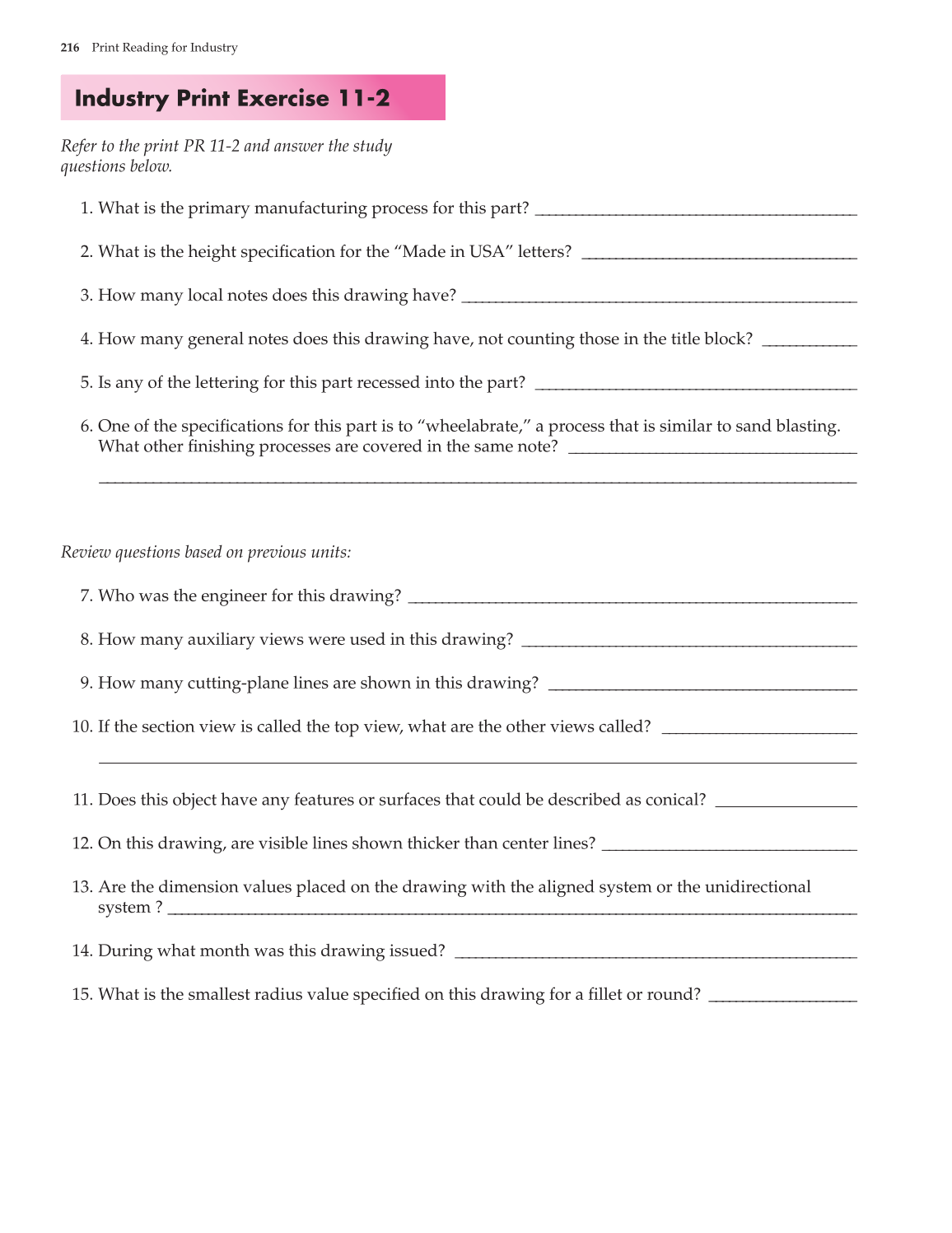

216 Print Reading for Industry
Refer to the print PR 11-2 and answer the study
questions below.
Industry Print Exercise 11-2
1. What is the primary manufacturing process for this part? ________________________________________________
2. What is the height specification for the “Made in USA” letters? _________________________________________
3. How many local notes does this drawing have? ___________________________________________________________
4. How many general notes does this drawing have, not counting those in the title block? ______________
5. Is any of the lettering for this part recessed into the part? ________________________________________________
6. One of the specifications for this part is to “wheelabrate,” a process that is similar to sand blasting.
What other finishing processes are covered in the same note? ___________________________________________
___________________________________________________________________________________________________
Review questions based on previous units:
7. Who was the engineer for this drawing? ___________________________________________________________________
8. How many auxiliary views were used in this drawing? __________________________________________________
9. How many cutting-plane lines are shown in this drawing? ______________________________________________
10. If the section view is called the top view, what are the other views called? _____________________________
___________________________________________________________________________________________________
11. Does this object have any features or surfaces that could be described as conical? _____________________
12. On this drawing, are visible lines shown thicker than center lines? ______________________________________
13. Are the dimension values placed on the drawing with the aligned system or the unidirectional
system ? _______________________________________________________________________________________________________
14. During what month was this drawing issued? ____________________________________________________________
15. What is the smallest radius value specified on this drawing for a fillet or round? ______________________
