Unit 5 Multiview Drawings 75
Projected points
Glass box
Top
Right side
Bottom
Front Left side Rear

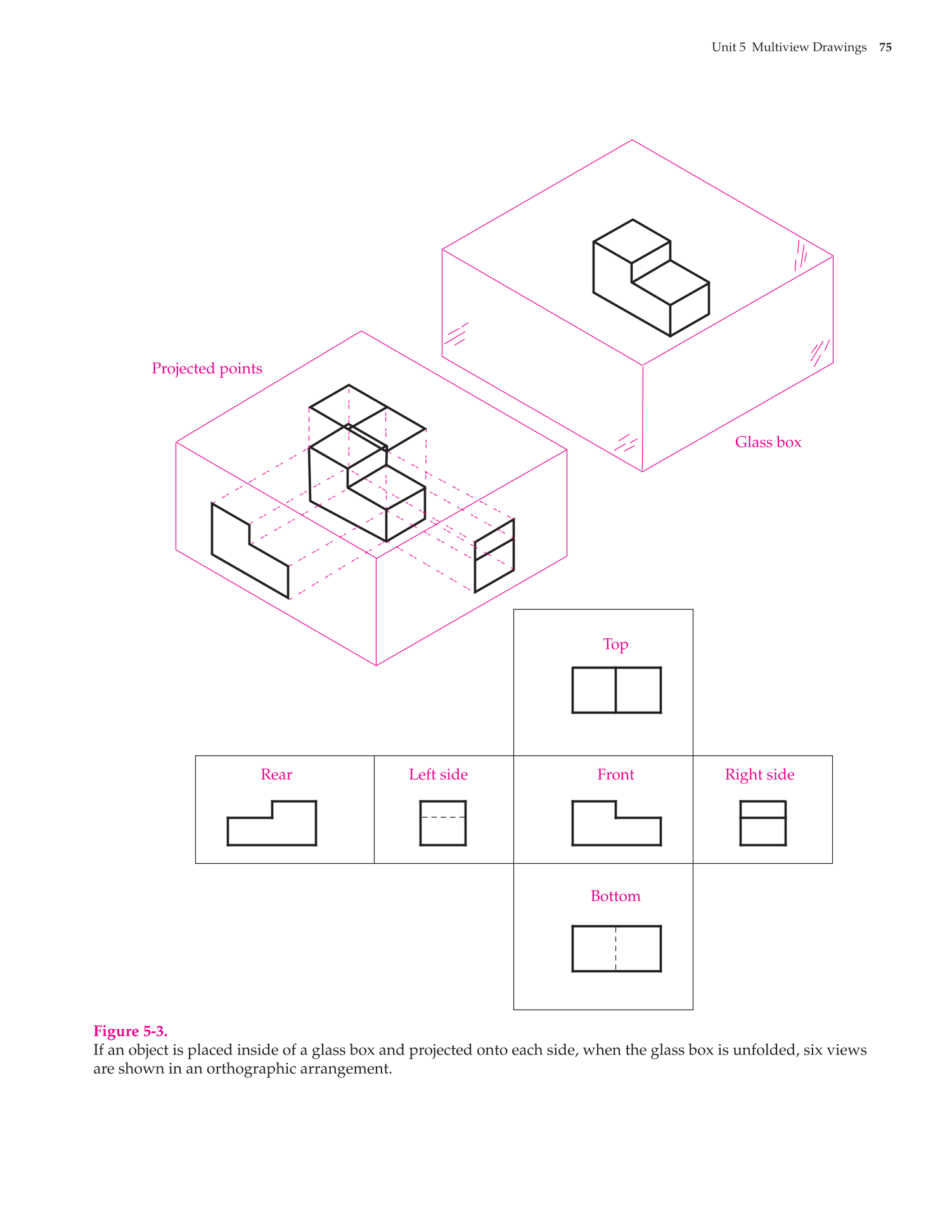

Figure 5-3.
If an object is placed inside of a glass box and projected onto each side, when the glass box is unfolded, six views
are shown in an orthographic arrangement.
