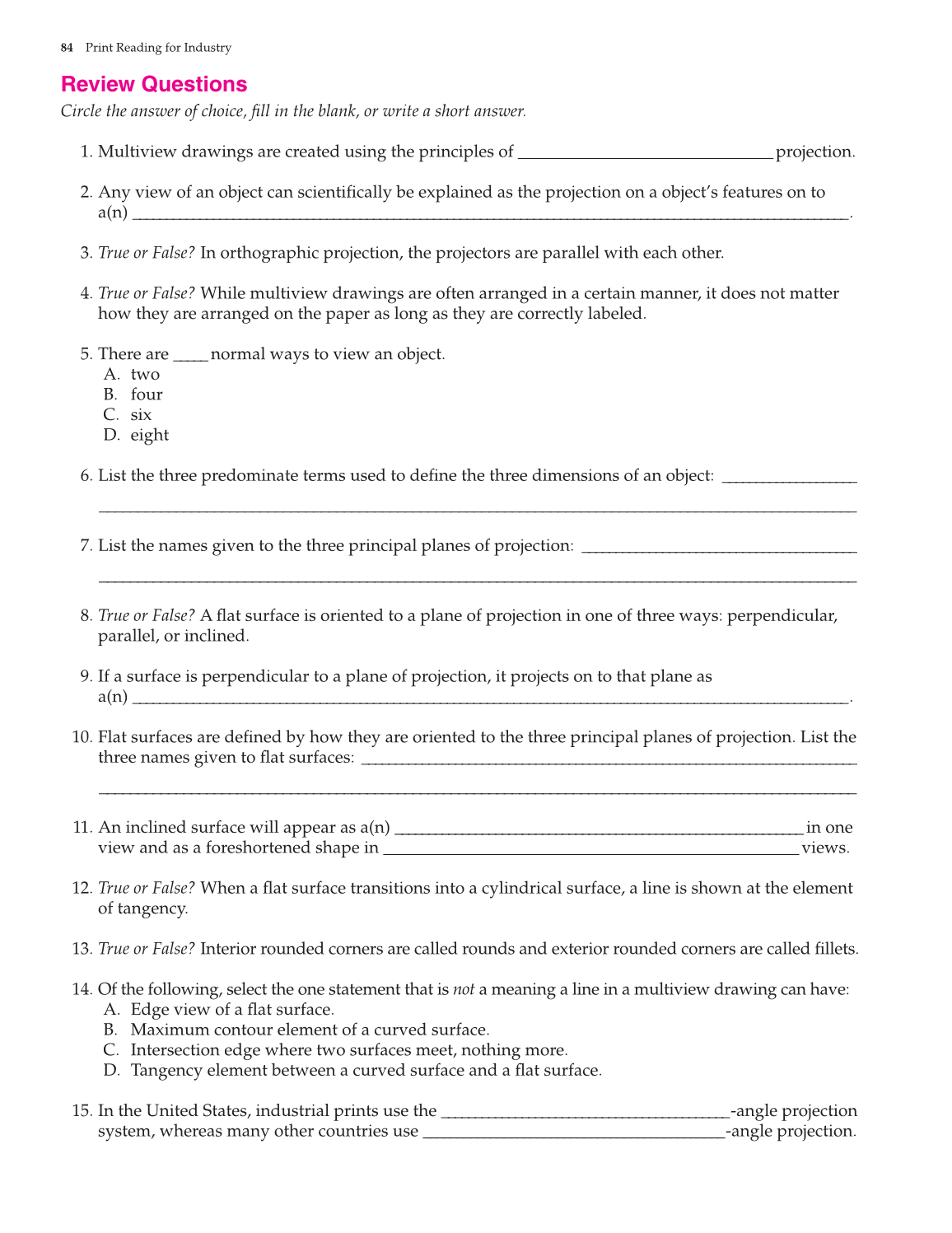

Review Questions
Circle the answer of choice, fill in the blank, or write a short answer.
1. Multiview drawings are created using the principles of ______________________________________ projection.
2. Any view of an object can scientifically be explained as the projection on a object’s features on to
a(n) ___________________________________________________________________________________________________________ .
3. True or False? In orthographic projection, the projectors are parallel with each other.
4. True or False? While multiview drawings are often arranged in a certain manner, it does not matter
how they are arranged on the paper as long as they are correctly labeled.
5. There are _____ normal ways to view an object.
A. two
B. four
C. six
D. eight
6. List the three predominate terms used to define the three dimensions of an object: ____________________
___________________________________________________________________________________________________
7. List the names given to the three principal planes of projection: _________________________________________
___________________________________________________________________________________________________
8. True or False? A flat surface is oriented to a plane of projection in one of three ways: perpendicular,
parallel, or inclined.
9. If a surface is perpendicular to a plane of projection, it projects on to that plane as
a(n) ___________________________________________________________________________________________________________ .
10. Flat surfaces are defined by how they are oriented to the three principal planes of projection. List the
three names given to flat surfaces: __________________________________________________________________________
___________________________________________________________________________________________________
11. An inclined surface will appear as a(n) _____________________________________________________________ in one
view and as a foreshortened shape in ______________________________________________________________ views.
12. True or False? When a flat surface transitions into a cylindrical surface, a line is shown at the element
of tangency.
13. True or False? Interior rounded corners are called rounds and exterior rounded corners are called fillets.
14. Of the following, select the one statement that is not a meaning a line in a multiview drawing can have:
A. Edge view of a flat surface.
B. Maximum contour element of a curved surface.
C. Intersection edge where two surfaces meet, nothing more.
D. Tangency element between a curved surface and a flat surface.
15. In the United States, industrial prints use the ___________________________________________ -angle projection
system, whereas many other countries use _____________________________________________ -angle projection.
