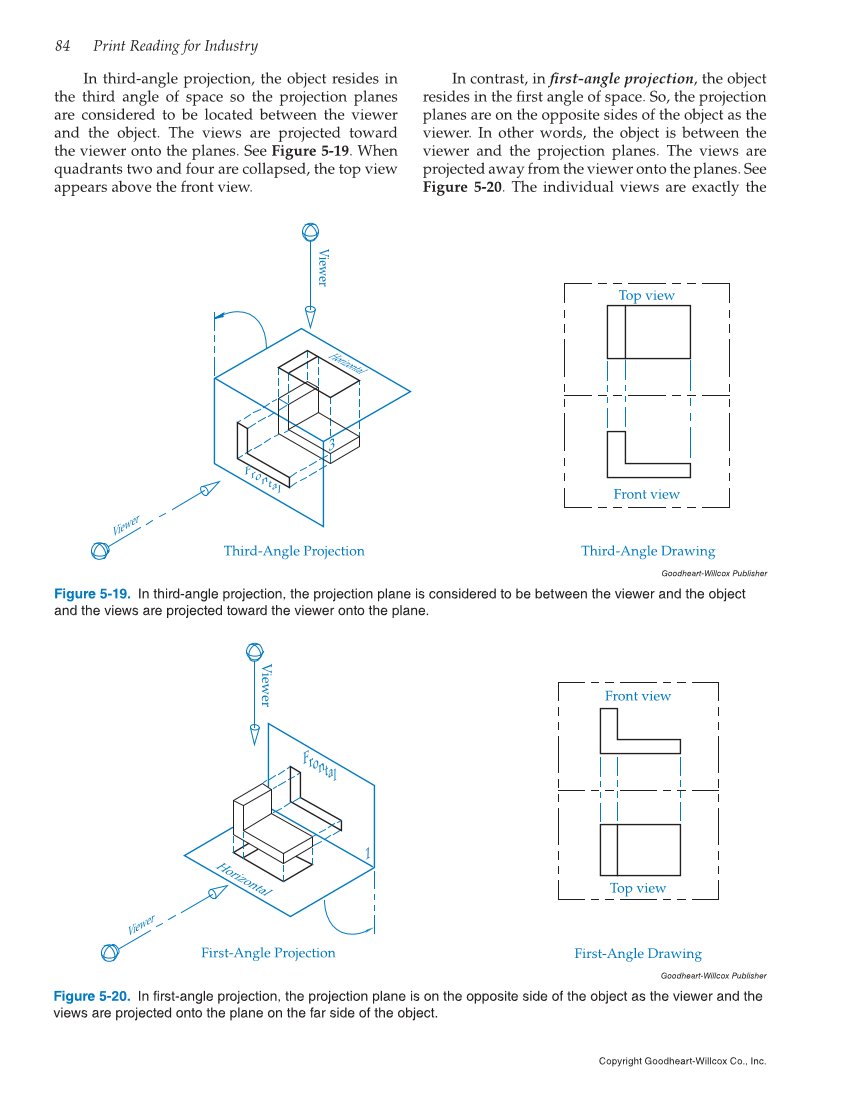

84 Print Reading for Industry Copyright Goodheart-Willcox Co., Inc. In third-angle projection, the object resides in the third angle of space so the projection planes are considered to be located between the viewer and the object. The views are projected toward the viewer onto the planes. See Figure 5-19. When quadrants two and four are collapsed, the top view appears above the front view. In contrast, in first-angle projection, the object resides in the first angle of space. So, the projection planes are on the opposite sides of the object as the viewer. In other words, the object is between the viewer and the projection planes. The views are projected away from the viewer onto the planes. See Figure 5-20. The individual views are exactly the Goodheart-Willcox Publisher Figure 5-19. In third-angle projection, the projection plane is considered to be between the viewer and the object and the views are projected toward the viewer onto the plane. 3 Third-Angle Projection Third-Angle Drawing Front view Top view V i ewe r Viewer Horizon tal Fron tal Goodheart-Willcox Publisher Figure 5-20. In first-angle projection, the projection plane is on the opposite side of the object as the viewer and the views are projected onto the plane on the far side of the object. 1 First-Angle Projection First-Angle Drawing V i ewe r Viewer Ho rizon tal Frontal Front view Top view
