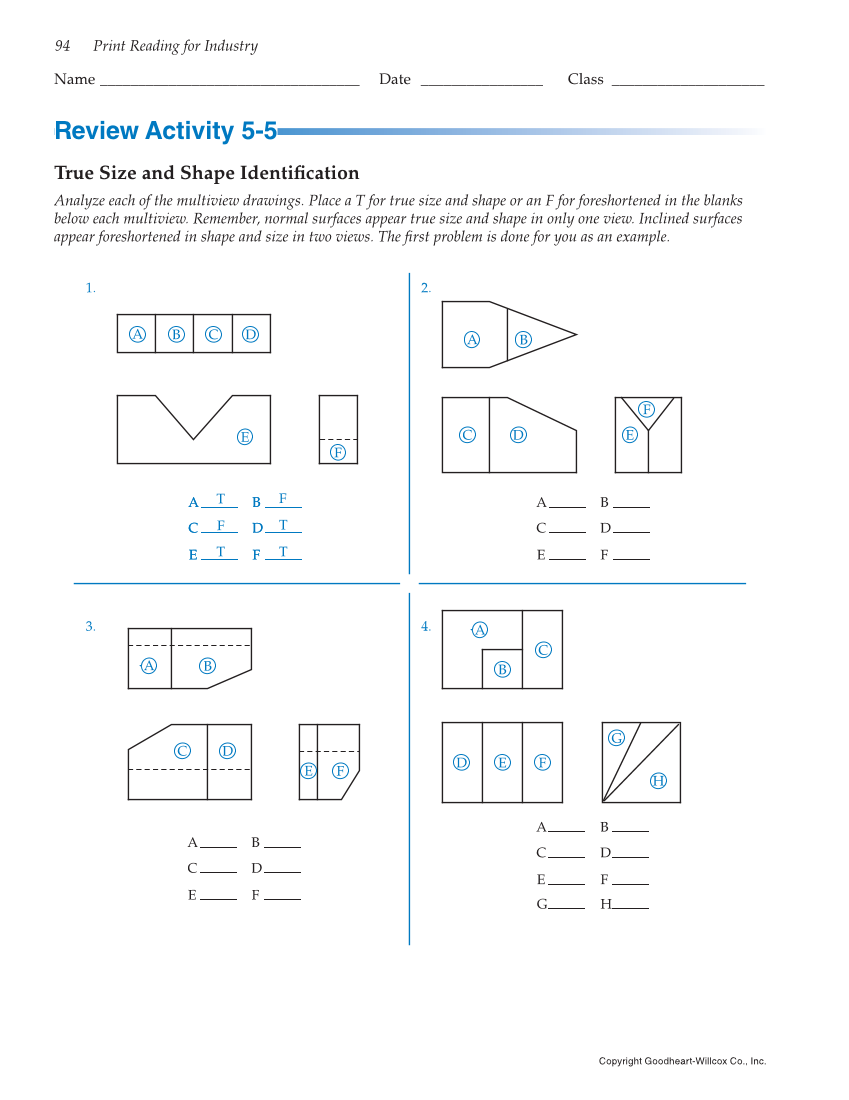

94 Print Reading for Industry Copyright Goodheart-Willcox Co., Inc. Name __________________________________ Date ________________ Class ____________________ Review Activity 5-5 True Size and Shape Identification Analyze each of the multiview drawings. Place a T for true size and shape or an F for foreshortened in the blanks below each multiview. Remember, normal surfaces appear true size and shape in only one view. Inclined surfaces appear foreshortened in shape and size in two views. The first problem is done for you as an example. 1. 3. 2. 4. A B C D E F A B C D E F D E F G H B C A A B D E F C F T T B D F T F T A C E B D F A C E B D F A C E B D F A C E B D F A C E H G
