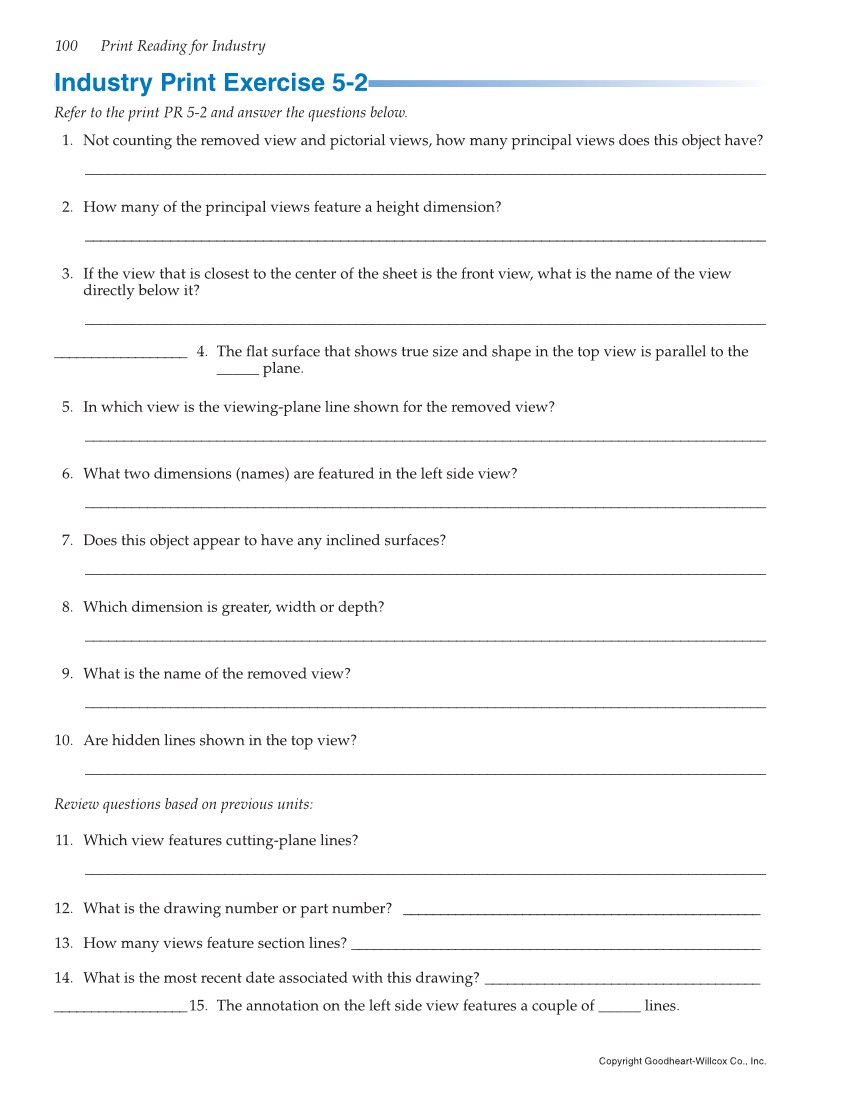

100 Print Reading for Industry Copyright Goodheart-Willcox Co., Inc. Industry Print Exercise 5-2 Refer to the print PR 5-2 and answer the questions below. 1. Not counting the removed view and pictorial views, how many principal views does this object have? ________________________________________________________________________________________ 2. How many of the principal views feature a height dimension? ________________________________________________________________________________________ 3. If the view that is closest to the center of the sheet is the front view, what is the name of the view directly below it? ________________________________________________________________________________________ __________________ 4. The flat surface that shows true size and shape in the top view is parallel to the _____ plane. 5. In which view is the viewing-plane line shown for the removed view? ________________________________________________________________________________________ 6. What two dimensions (names) are featured in the left side view? ________________________________________________________________________________________ 7. Does this object appear to have any inclined surfaces? ________________________________________________________________________________________ 8. Which dimension is greater, width or depth? ________________________________________________________________________________________ 9. What is the name of the removed view? ________________________________________________________________________________________ 10. Are hidden lines shown in the top view? ________________________________________________________________________________________ Review questions based on previous units: 11. Which view features cutting-plane lines? ________________________________________________________________________________________ 12. What is the drawing number or part number? ________________________________________________ 13. How many views feature section lines? _______________________________________________________ 14. What is the most recent date associated with this drawing? _____________________________________ __________________ 15. The annotation on the left side view features a couple of _____ lines.
