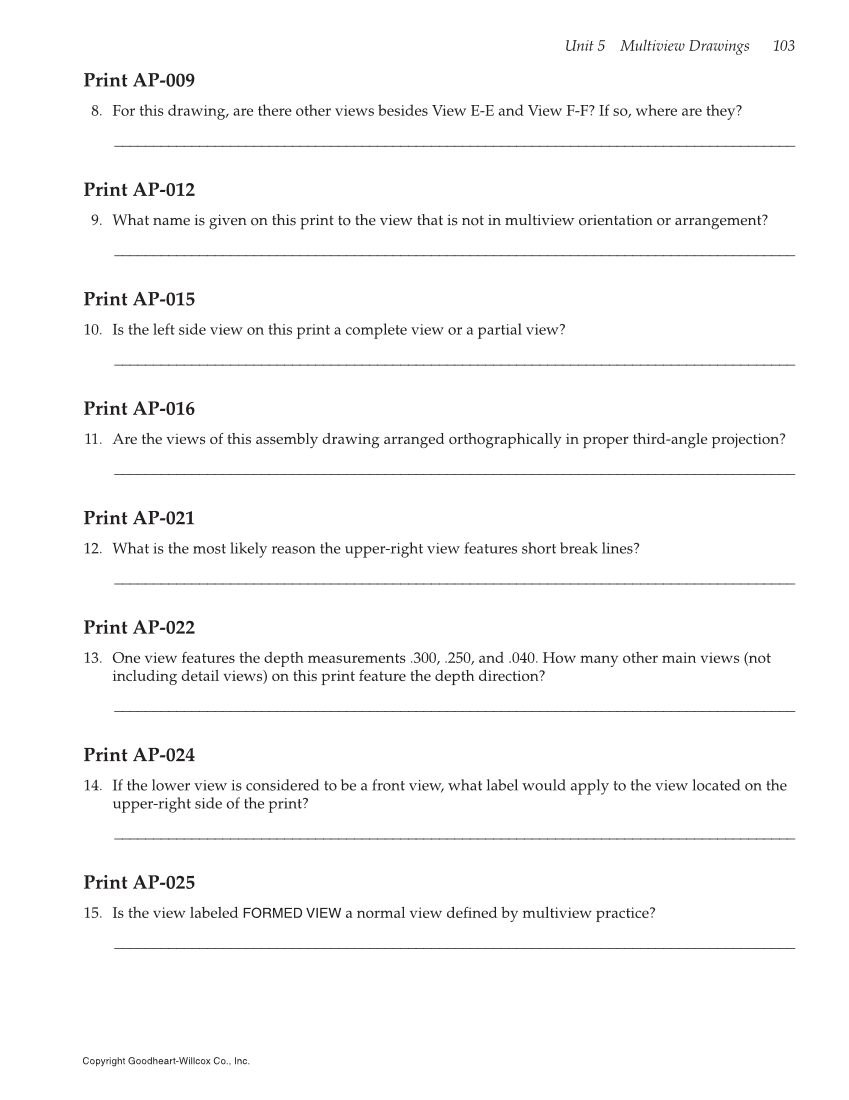

Unit 5 Multiview Drawings 103 Copyright Goodheart-Willcox Co., Inc. Print AP-009 8. For this drawing, are there other views besides View E-E and View F-F? If so, where are they? ________________________________________________________________________________________ Print AP-012 9. What name is given on this print to the view that is not in multiview orientation or arrangement? ________________________________________________________________________________________ Print AP-015 10. Is the left side view on this print a complete view or a partial view? ________________________________________________________________________________________ Print AP-016 11. Are the views of this assembly drawing arranged orthographically in proper third-angle projection? ________________________________________________________________________________________ Print AP-021 12. What is the most likely reason the upper-right view features short break lines? ________________________________________________________________________________________ Print AP-022 13. One view features the depth measurements .300, .250, and .040. How many other main views (not including detail views) on this print feature the depth direction? ________________________________________________________________________________________ Print AP-024 14. If the lower view is considered to be a front view, what label would apply to the view located on the upper-right side of the print? ________________________________________________________________________________________ Print AP-025 15. Is the view labeled FORMED VIEW a normal view defined by multiview practice? ________________________________________________________________________________________
