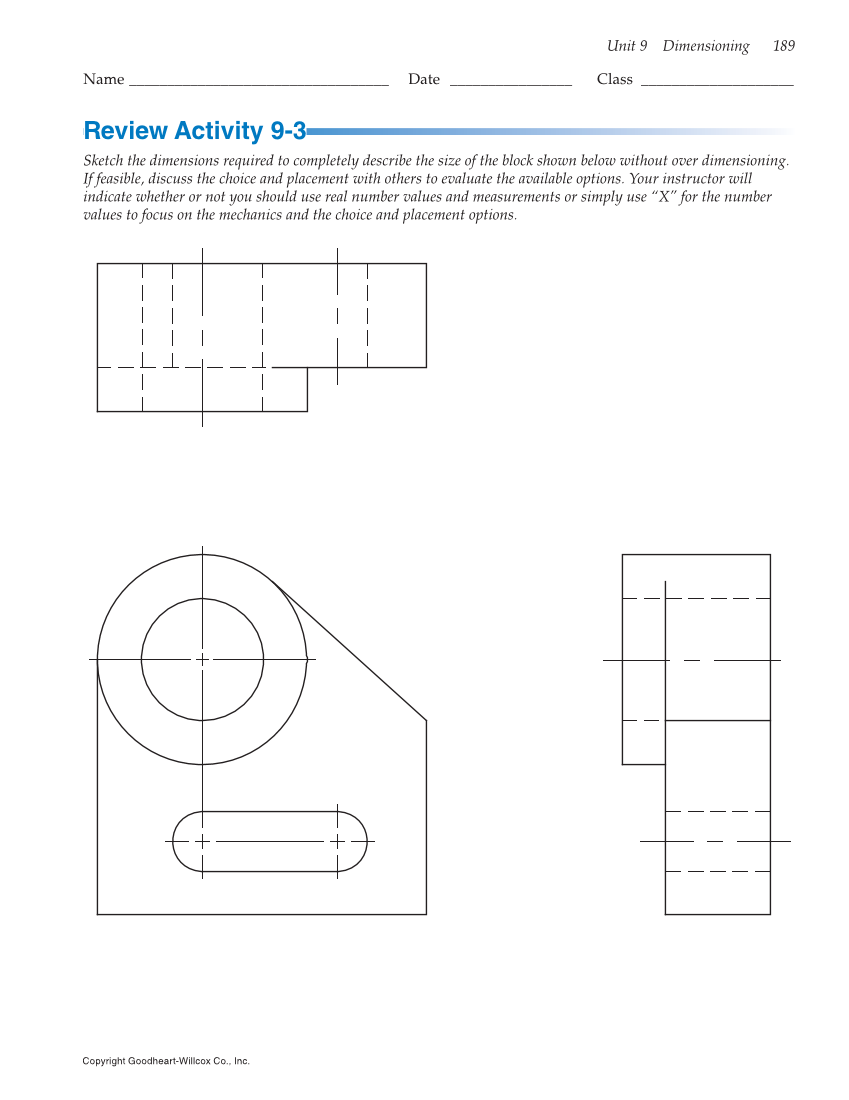

Unit 9 Dimensioning 189 Copyright Goodheart-Willcox Co., Inc. Name __________________________________ Date ________________ Class ____________________ Review Activity 9-3 Sketch the dimensions required to completely describe the size of the block shown below without over dimensioning. If feasible, discuss the choice and placement with others to evaluate the available options. Your instructor will indicate whether or not you should use real number values and measurements or simply use “X” for the number values to focus on the mechanics and the choice and placement options.
