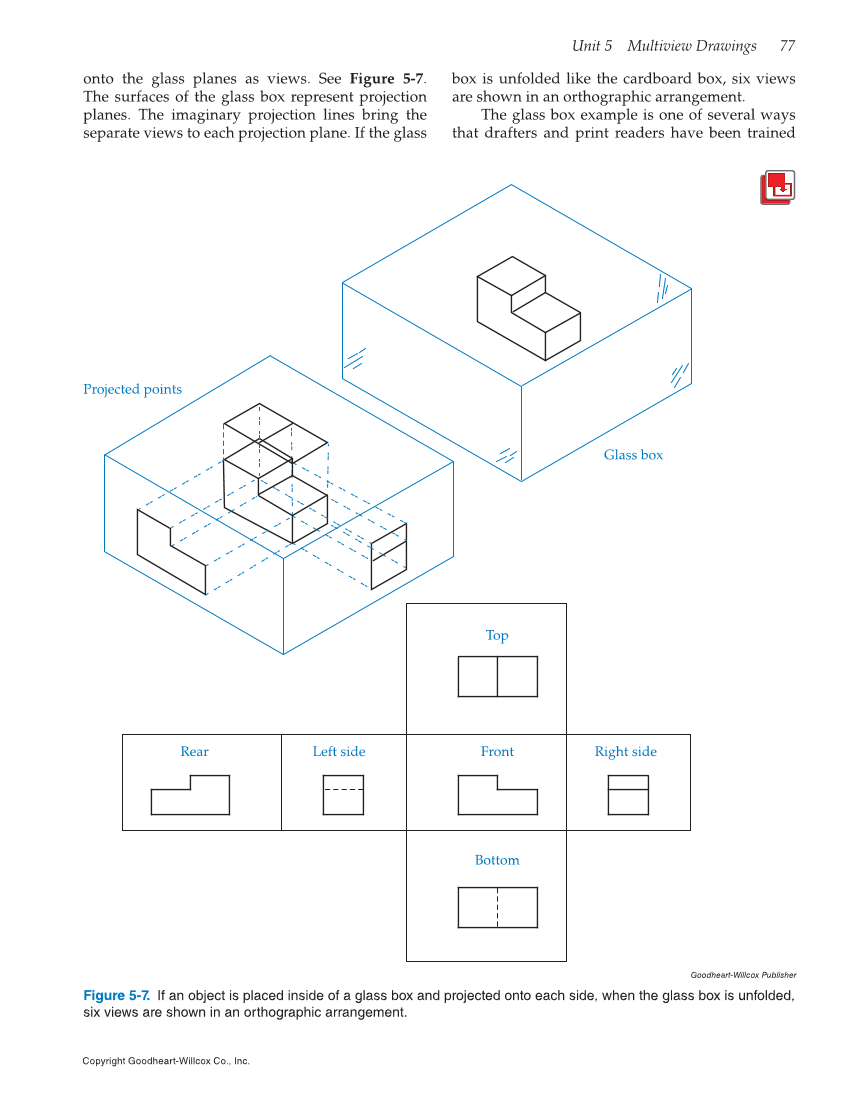

Unit 5 Multiview Drawings 77 Copyright Goodheart-Willcox Co., Inc. onto the glass planes as views. See Figure 5-7. The surfaces of the glass box represent projection planes. The imaginary projection lines bring the separate views to each projection plane. If the glass box is unfolded like the cardboard box, six views are shown in an orthographic arrangement. The glass box example is one of several ways that drafters and print readers have been trained Goodheart-Willcox Publisher Figure 5-7. If an object is placed inside of a glass box and projected onto each side, when the glass box is unfolded, six views are shown in an orthographic arrangement. Projected points Glass box Top Right side Bottom Front Left side Rear
