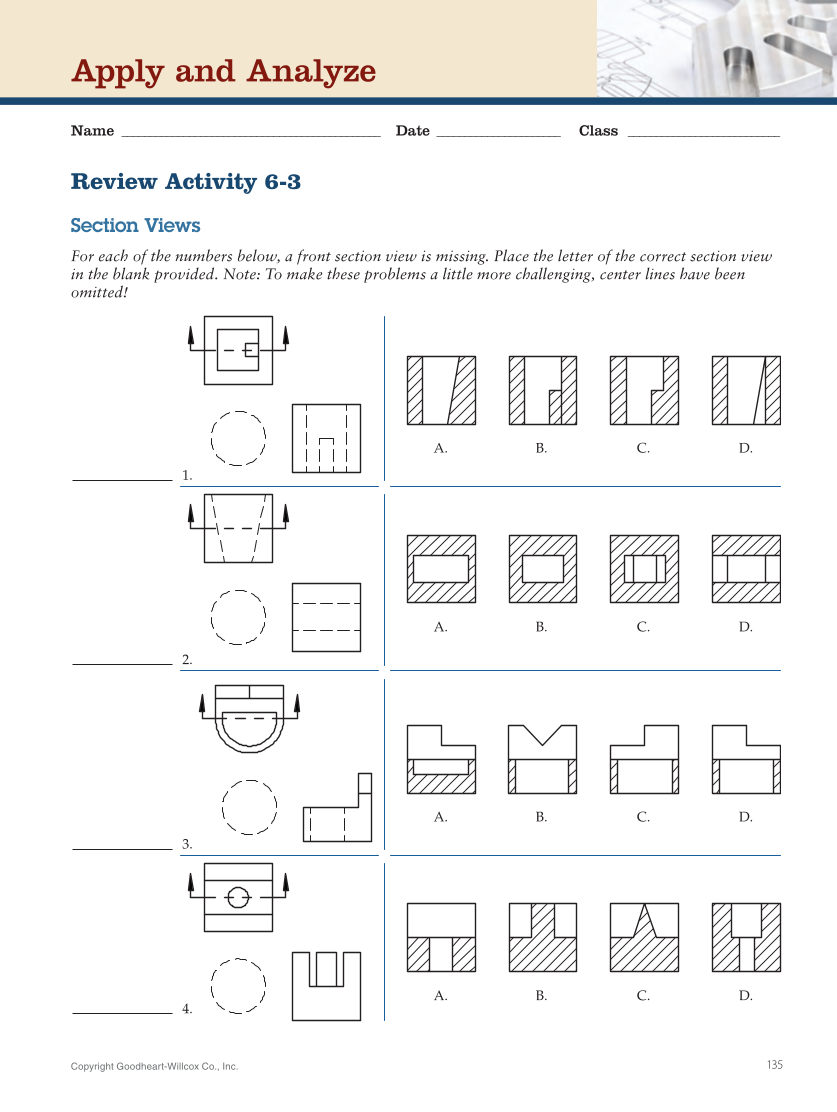

Copyright Goodheart-Willcox Co., Inc. 135 Review Activity 6-3 Section Views For each of the numbers below, a front section view is missing. Place the letter of the correct section view in the blank provided. Note: To make these problems a little more challenging, center lines have been omitted! Apply and Analyze Name _ ______________________________________________ Date _______________________ Class _ ___________________________ A. B. C. D. A. B. C. D. A. B. C. D. 1. 2. 3. A. B. C. D. 4.
Print Reading for Industry 11e, Online Textbook Page 135 (149 of 637)
Powered by Tizra® |
Extracted Text (may have errors)
Copyright Goodheart-Willcox Co., Inc. 135 Review Activity 6-3 Section Views For each of the numbers below, a front section view is missing. Place the letter of the correct section view in the blank provided. Note: To make these problems a little more challenging, center lines have been omitted! Apply and Analyze Name _ ______________________________________________ Date _______________________ Class _ ___________________________ A. B. C. D. A. B. C. D. A. B. C. D. 1. 2. 3. A. B. C. D. 4.
