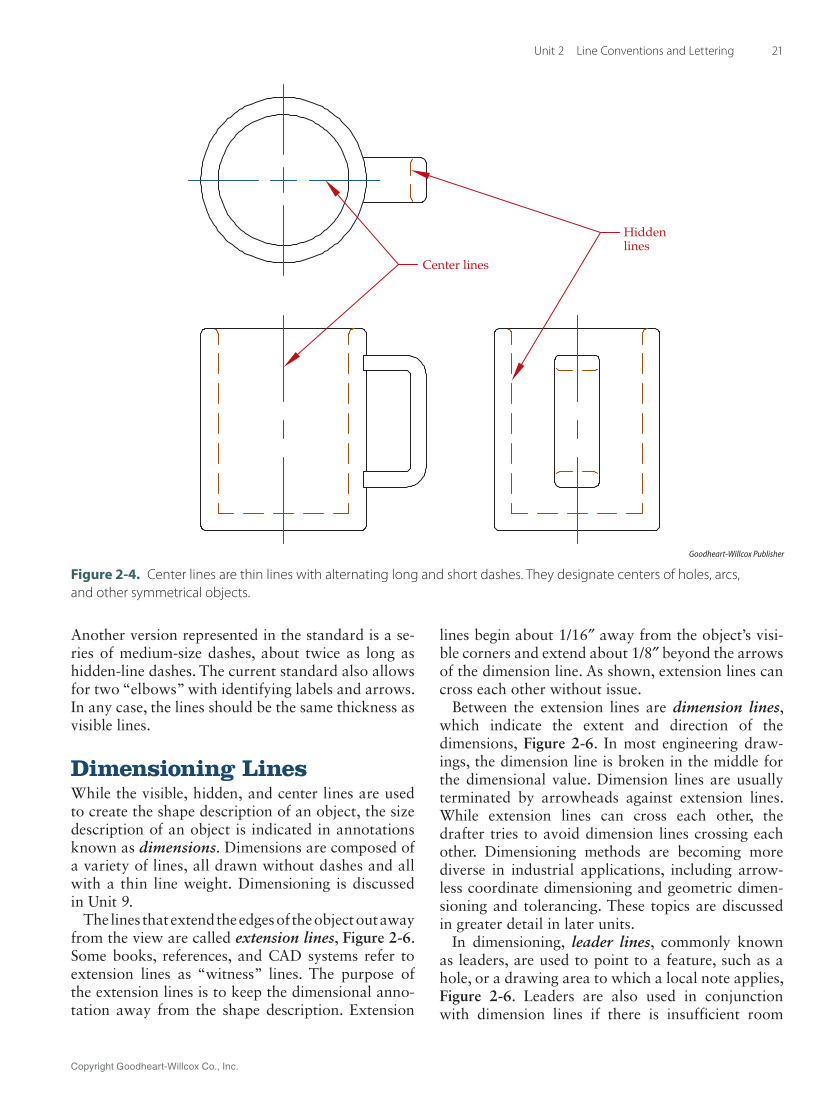

Copyright  Goodheart-Willcox  Co.,  Inc.  Unit  2  Line  Conventions  and  Lettering  21  Another  version  represented  in  the  standard  is  a  se-  ries  of  medium-size  dashes,  about  twice  as  long  as  hidden-line  dashes.  The  current  standard  also  allows  for  two  “elbows”  with  identifying  labels  and  arrows.  In  any  case,  the  lines  should  be  the  same  thickness  as  visible  lines.  Dimensioning  Lines  While  the  visible,  hidden,  and  center  lines  are  used  to  create  the  shape  description  of  an  object,  the  size  description  of  an  object  is  indicated  in  annotations  known  as  dimensions.  Dimensions  are  composed  of  a  variety  of  lines,  all  drawn  without  dashes  and  all  with  a  thin  line  weight.  Dimensioning  is  discussed  in  Unit  9.  The  lines  that  extend  the  edges  of  the  object  out  away  from  the  view  are  called  extension  lines,  Figure  2‑6.  Some  books,  references,  and  CAD  systems  refer  to  extension  lines  as  “witness”  lines.  The  purpose  of  the  extension  lines  is  to  keep  the  dimensional  anno-  tation  away  from  the  shape  description.  Extension  lines  begin  about  1/16″  away  from  the  object’s  visi-  ble  corners  and  extend  about  1/8″  beyond  the  arrows  of  the  dimension  line.  As  shown,  extension  lines  can  cross  each  other  without  issue.  Between  the  extension  lines  are  dimension  lines,  which  indicate  the  extent  and  direction  of  the  dimensions,  Figure  2‑6.  In  most  engineering  draw-  ings,  the  dimension  line  is  broken  in  the  middle  for  the  dimensional  value.  Dimension  lines  are  usually  terminated  by  arrowheads  against  extension  lines.  While  extension  lines  can  cross  each  other,  the  drafter  tries  to  avoid  dimension  lines  crossing  each  other.  Dimensioning  methods  are  becoming  more  diverse  in  industrial  applications,  including  arrow-  less  coordinate  dimensioning  and  geometric  dimen-  sioning  and  tolerancing.  These  topics  are  discussed  in  greater  detail  in  later  units.  In  dimensioning,  leader  lines,  commonly  known  as  leaders,  are  used  to  point  to  a  feature,  such  as  a  hole,  or  a  drawing  area  to  which  a  local  note  applies,  Figure  2‑6.  Leaders  are  also  used  in  conjunction  with  dimension  lines  if  there  is  insufficient  room  Goodheart-Willcox  Publisher  Figure  2‑4.  Center  lines  are  thin  lines  with  alternating  long  and  short  dashes.  They  designate  centers  of  holes,  arcs,  and  other  symmetrical  objects.  Center  lines  Hidden  lines
