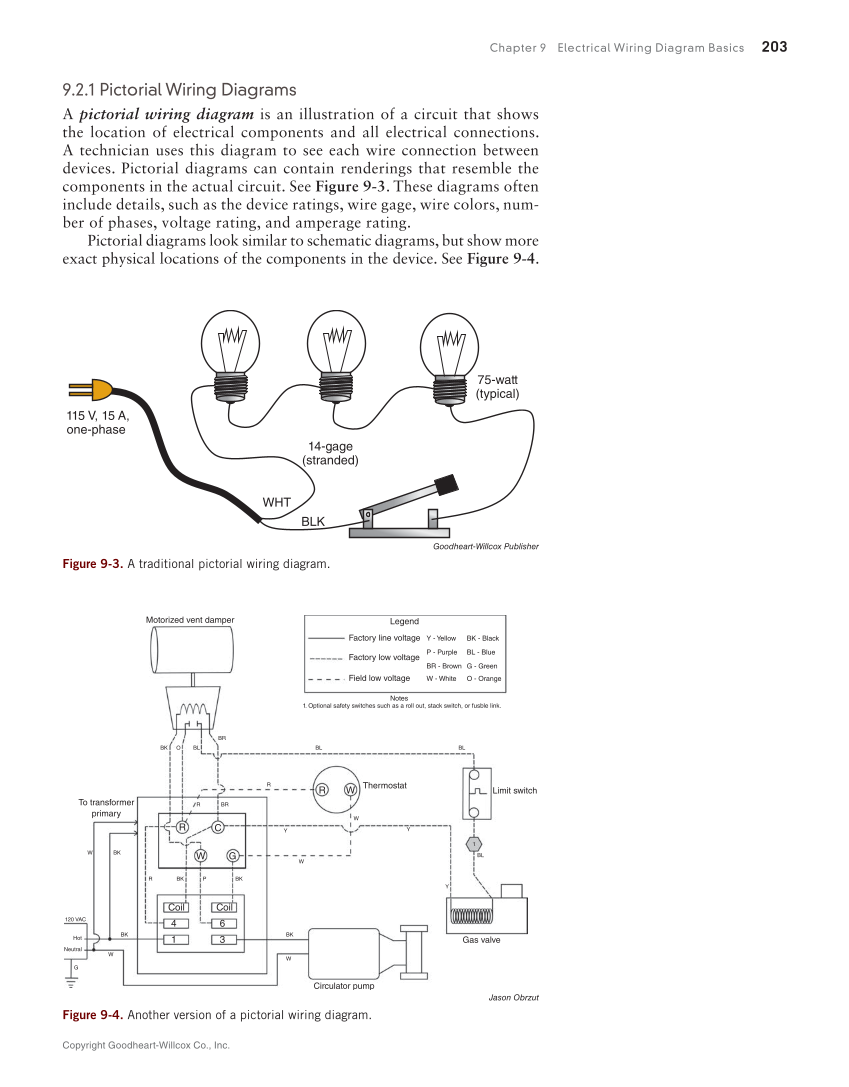

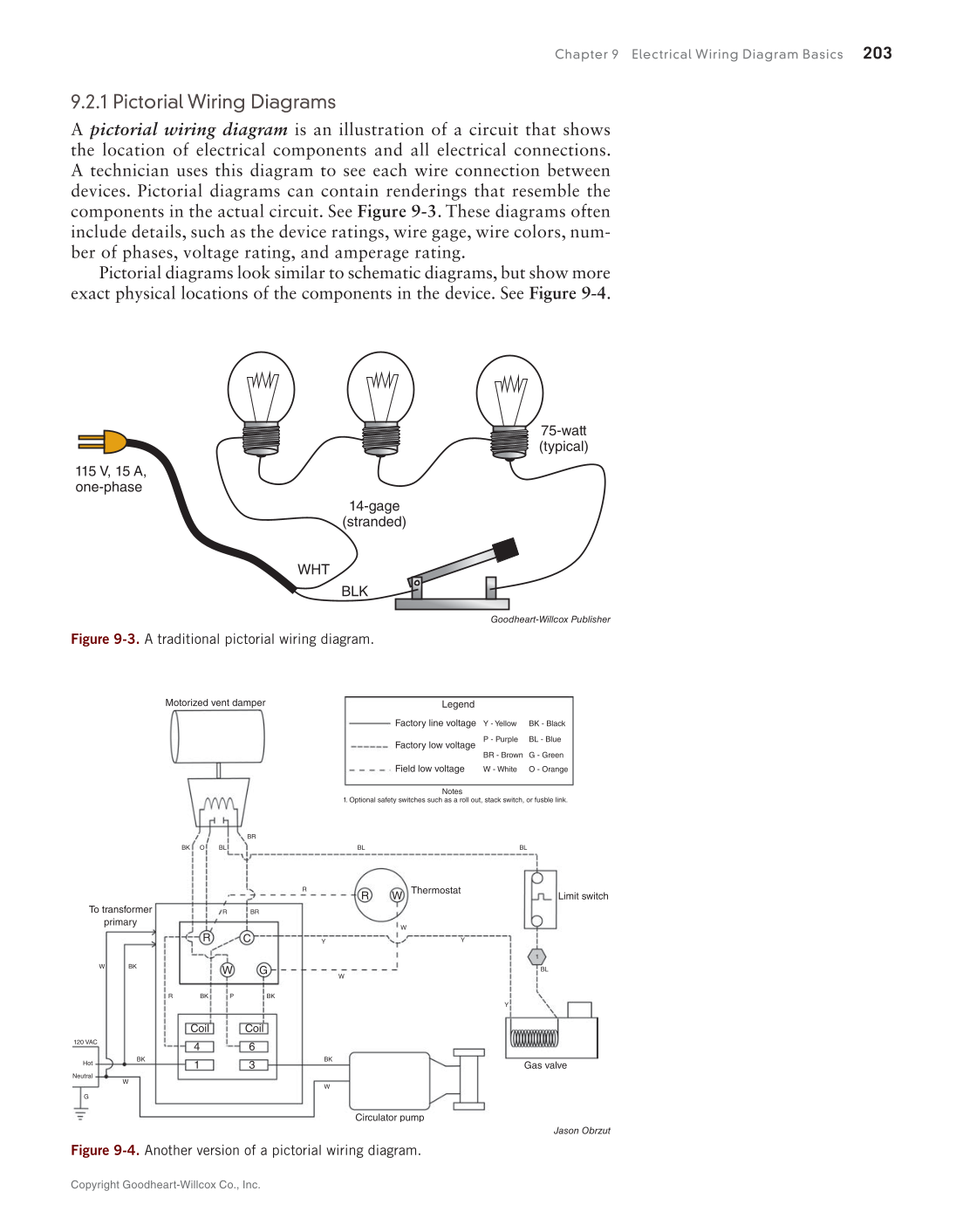

9.2.1 Pictorial Wiring Diagrams
A pictorial wiring diagram is an illustration of a circuit that shows
the location of electrical components and all electrical connections.
A technician uses this diagram to see each wire connection between
devices. Pictorial diagrams can contain renderings that resemble the
components in the actual circuit. See Figure 9-3. These diagrams often
include details, such as the device ratings, wire gage, wire colors, num-
ber of phases, voltage rating, and amperage rating.
Pictorial diagrams look similar to schematic diagrams, but show more
exact physical locations of the components in the device. See Figure 9-4.
