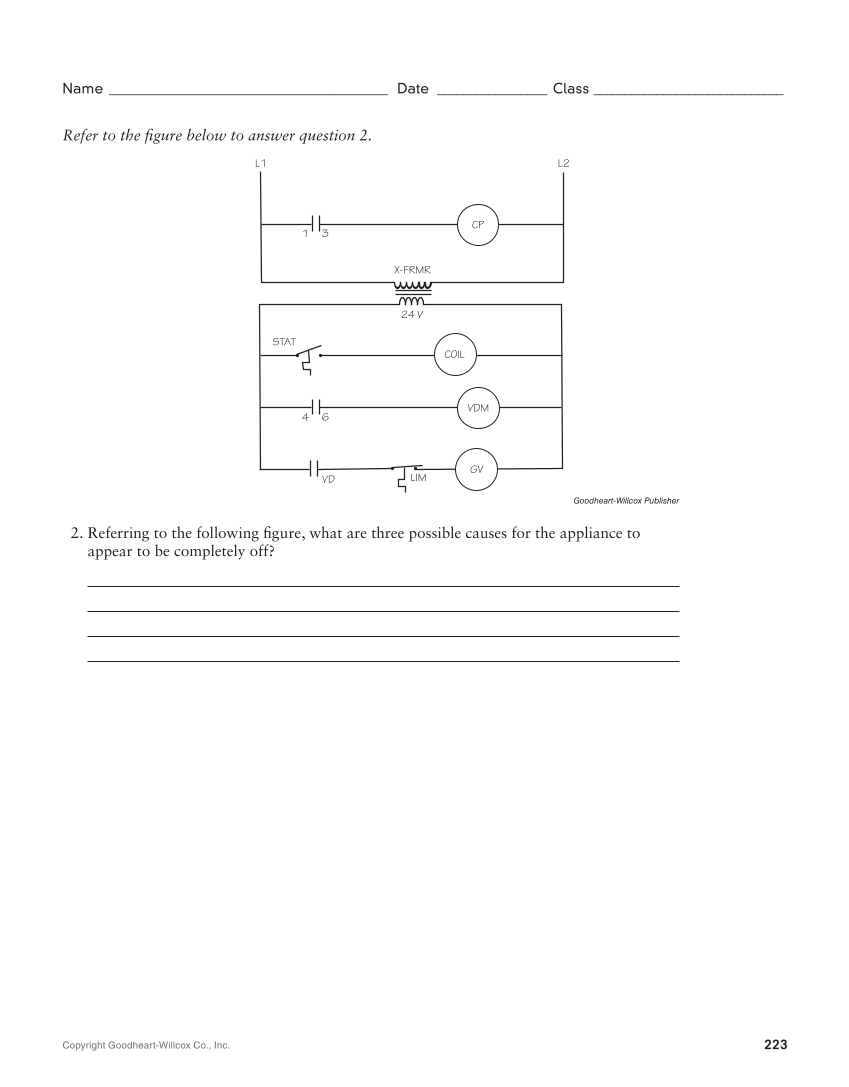

Refer to the fi gure below to answer question 2.
L1 L2
X-FRMR
1
CP
COIL
VDM
VD
GV
STAT
LIM
24 V
3
4 6
Goodheart-Willcox Publisher
2. Referring to the following fi gure, what are three possible causes for the appliance to
appear to be completely off?
