When a rung is scanned, its input and output addresses are
updated. However, because the scanning takes place from left to right
across each rung, and from the top to bottom rungs, sometimes spe-
cific inputs or outputs may not be updated in time.
For example, assume the scan time for a ladder program is six milli-
seconds, but the status of an input port changes every three milliseconds.
This results in missing the status of that input port every other time.
In order to correct this problem, an instruction called immediate
input with mask (IIM) is placed in the middle of the program. The
critical input port is then read twice within a six milliseconds period.
There is a similar instruction called immediate output with mask
(IOM) that can be placed for the output port(s).
6.6 PLC Program and Data Files
A programmable logic controller project consists of the ladder
logic diagram file and its associated data files. These files are shown in
Figure 6-20 in the project tree area of the RSLogix 500 software pro-
gram. Notice that the project area is divided into two areas:
Program
Files
and
Data
Files.
There are at least three program file icons in the
Program Files
area.
The
SYS0
program file is used by the PLC processor to keep track of its
internal register settings. The
SYS1
program file is reserved. Therefore,
these two system files are not available to the RSLogix 500 software user.
PLC programmers have access to at least one program file called
the main program file. The main program file (LAD2) holds the main
PLC ladder logic diagram.
In a PLC project, there may be more than one program file. This
means that there might be several subroutine program files in addi-
tion to the main program file. These subroutine program files are
called on or accessed from the main program file. Subroutine files and
Output scan
Input scan
Program scan

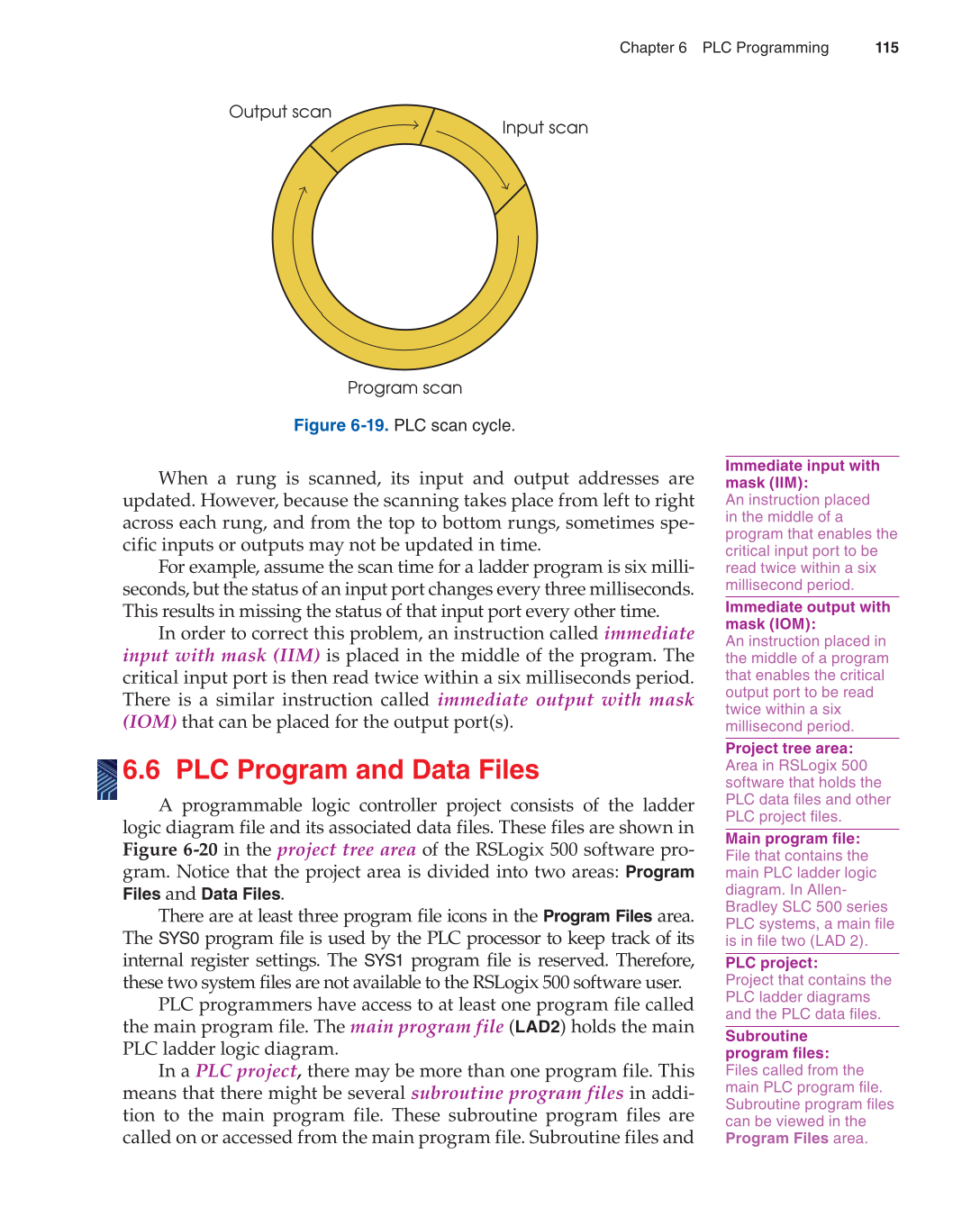

Figure 6-19. PLC scan cycle.
