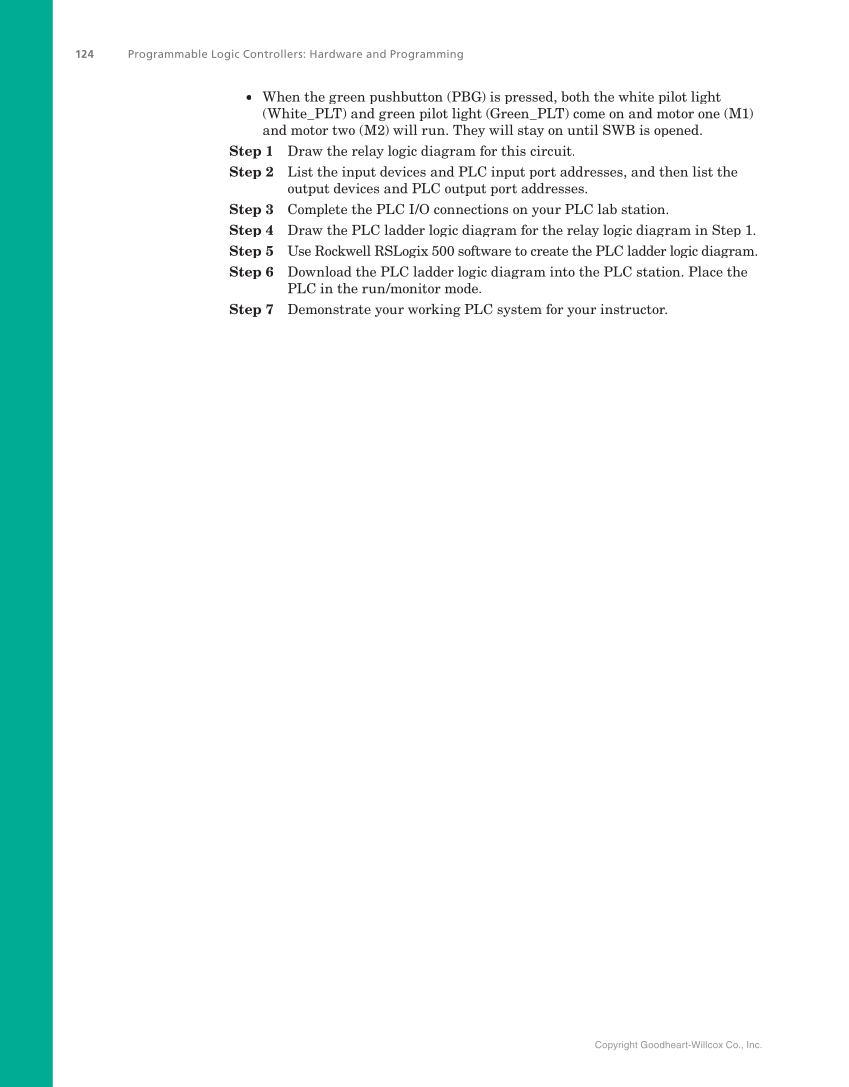

Copyright Goodheart-Willcox Co., Inc. 124 Programmable Logic Controllers: Hardware and Programming • When the green pushbutton (PBG) is pressed, both the white pilot light (White_PLT) and green pilot light (Green_PLT) come on and motor one (M1) and motor two (M2) will run. They will stay on until SWB is opened. Step 1 Draw the relay logic diagram for this circuit. Step 2 List the input devices and PLC input port addresses, and then list the output devices and PLC output port addresses. Step 3 Complete the PLC I/O connections on your PLC lab station. Step 4 Draw the PLC ladder logic diagram for the relay logic diagram in Step 1. Step 5 Use Rockwell RSLogix 500 software to create the PLC ladder logic diagram. Step 6 Download the PLC ladder logic diagram into the PLC station. Place the PLC in the run/monitor mode. Step 7 Demonstrate your working PLC system for your instructor.
