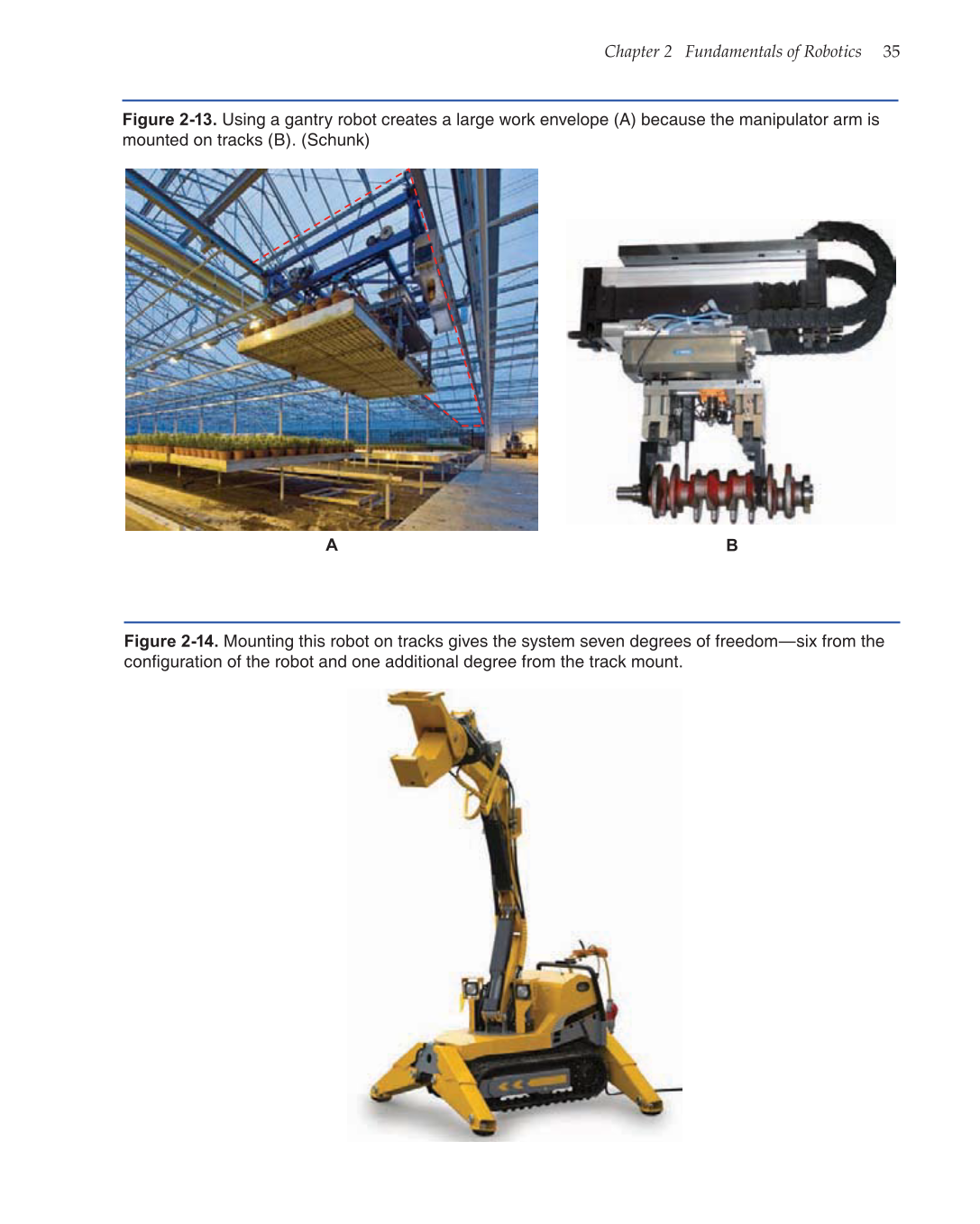

Figure 2-13. Using a gantry robot creates a large work envelope (A) because the manipulator arm is
mounted on tracks (B). (Schunk)
Figure 2-14. Mounting this robot on tracks gives the system seven degrees of freedom—six from the
confi guration of the robot and one additional degree from the track mount.
