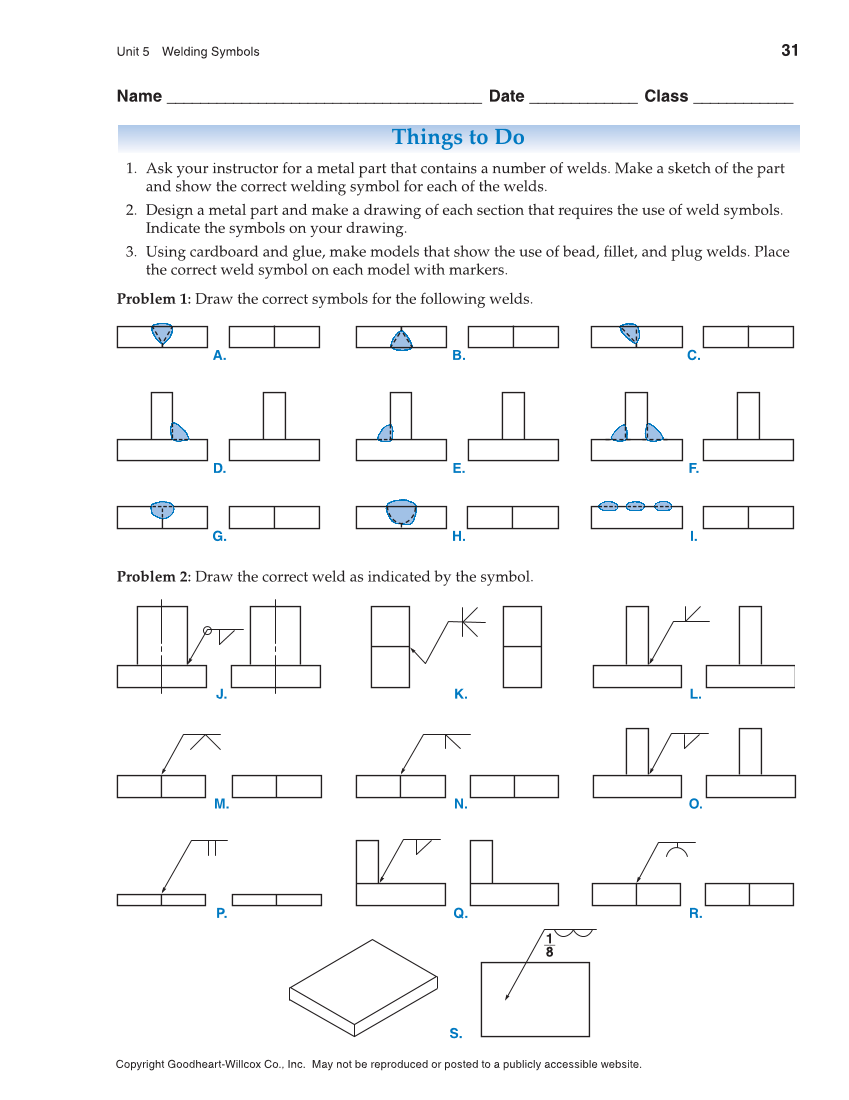

Unit 5 Welding Symbols 31 Copyright Goodheart-Willcox Co., Inc. May not be reproduced or posted to a publicly accessible website. Name ______________________________________ Date _____________ Class ____________ Things to Do 1. Ask your instructor for a metal part that contains a number of welds. Make a sketch of the part and show the correct welding symbol for each of the welds. 2. Design a metal part and make a drawing of each section that requires the use of weld symbols. Indicate the symbols on your drawing. 3. Using cardboard and glue, make models that show the use of bead, fi llet, and plug welds. Place the correct weld symbol on each model with markers. Problem 1: Draw the correct symbols for the following welds. A. B. C. D. E. F. G. H. I. Problem 2: Draw the correct weld as indicated by the symbol. J. K. L. M. N. O. P. Q. S. R.
