Chapter 3 Communicating Design Ideas
73

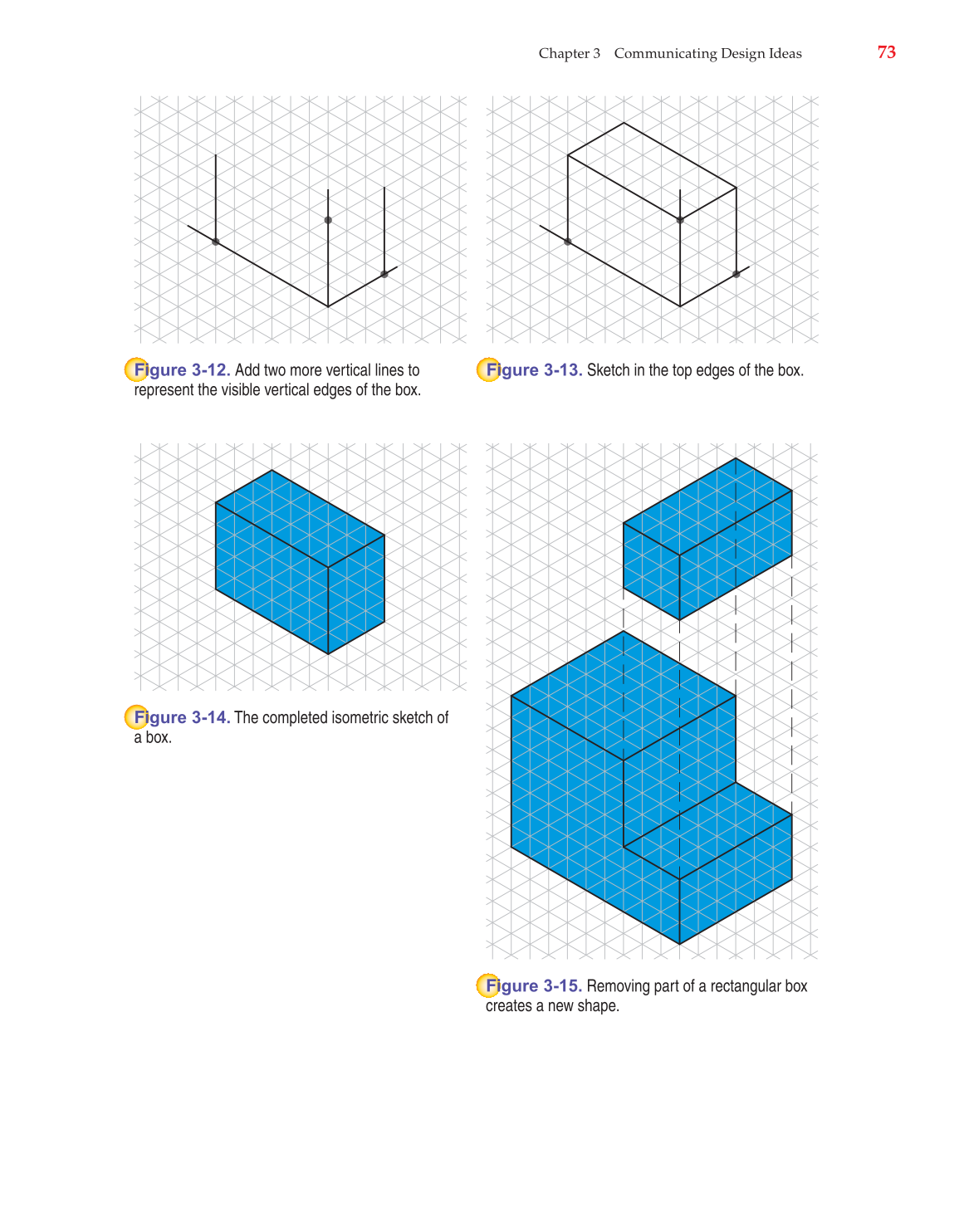

gure 3-12. Add two more vertical lines to
represent the visible vertical edges of the box.
gure 3-13. Sketch in the top edges of the box.
gure 3-14. The completed isometric sketch of
a box.
gure 3-15. Removing part of a rectangular box
creates a new shape.
