Chapter 3 Communicating Design Ideas
75

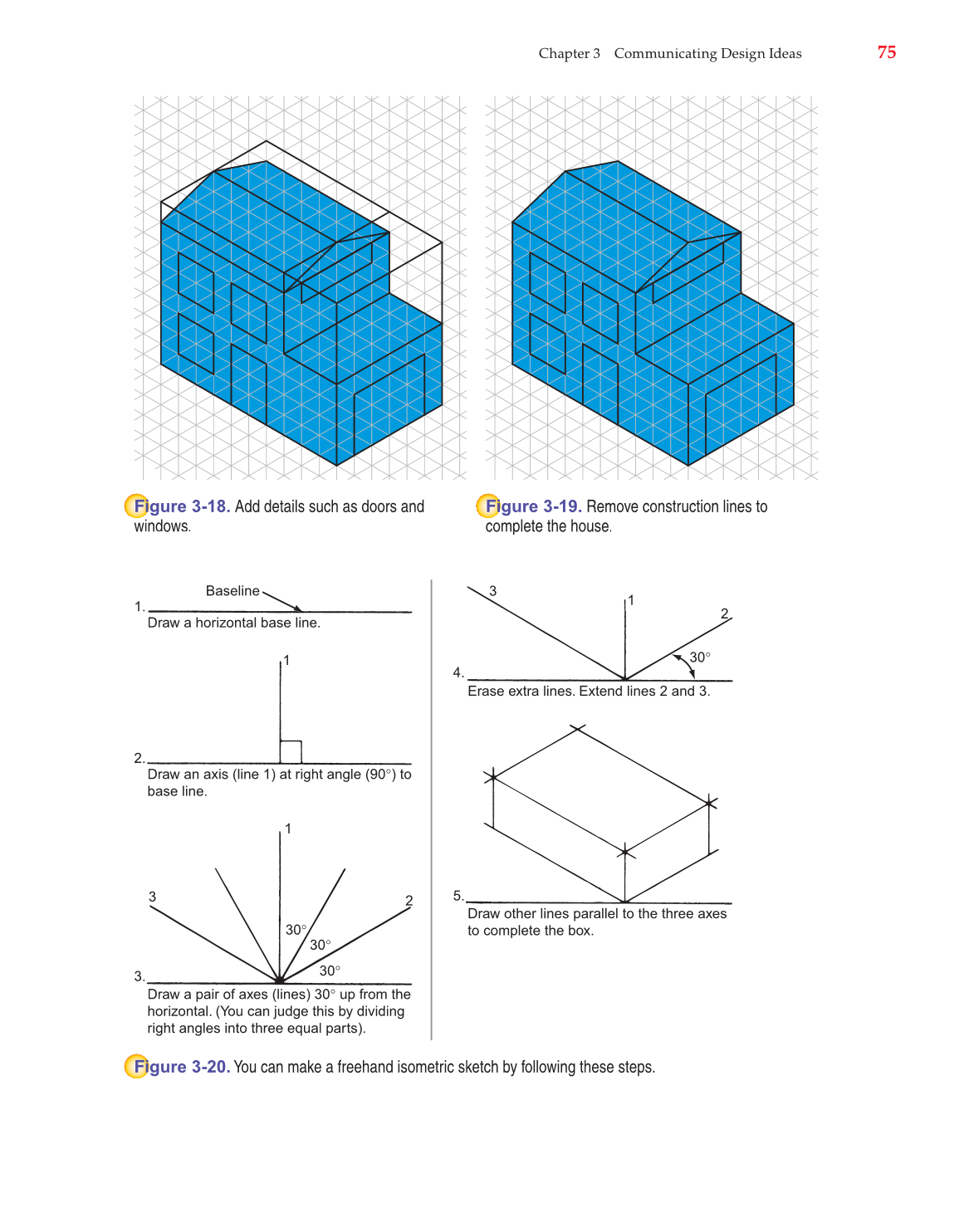

gure 3-18. Add details such as doors and
windows.
gure 3-19. Remove construction lines to
complete the house.
Draw a horizontal base line.
Draw an axis (line 1) at right angle (90°) to
base line.
Draw a pair of axes (lines) 30° up from the
horizontal. (You can judge this by dividing
right angles into three equal parts).
Erase extra lines. Extend lines 2 and 3.
Draw other lines parallel to the three axes
to complete the box.
Baseline
1
1
2
3
3
1
2
30°
30°
30°
30°
1.
2.
3.
4.
5.
gure 3-20. You can make a freehand isometric sketch by following these steps.

Previous Page Next Page

Resources and Downloads

Attachments

Extracted Text (may have errors)

Chapter 3 Communicating Design Ideas
75
gure 3-18. Add details such as doors and
windows.
gure 3-19. Remove construction lines to
complete the house.
Draw a horizontal base line.
Draw an axis (line 1) at right angle (90°) to
base line.
Draw a pair of axes (lines) 30° up from the
horizontal. (You can judge this by dividing
right angles into three equal parts).
Erase extra lines. Extend lines 2 and 3.
Draw other lines parallel to the three axes
to complete the box.
Baseline
1
1
2
3
3
1
2
30°
30°
30°
30°
1.
2.
3.
4.
5.
gure 3-20. You can make a freehand isometric sketch by following these steps.

Help

76
Technology: Engineering Our World

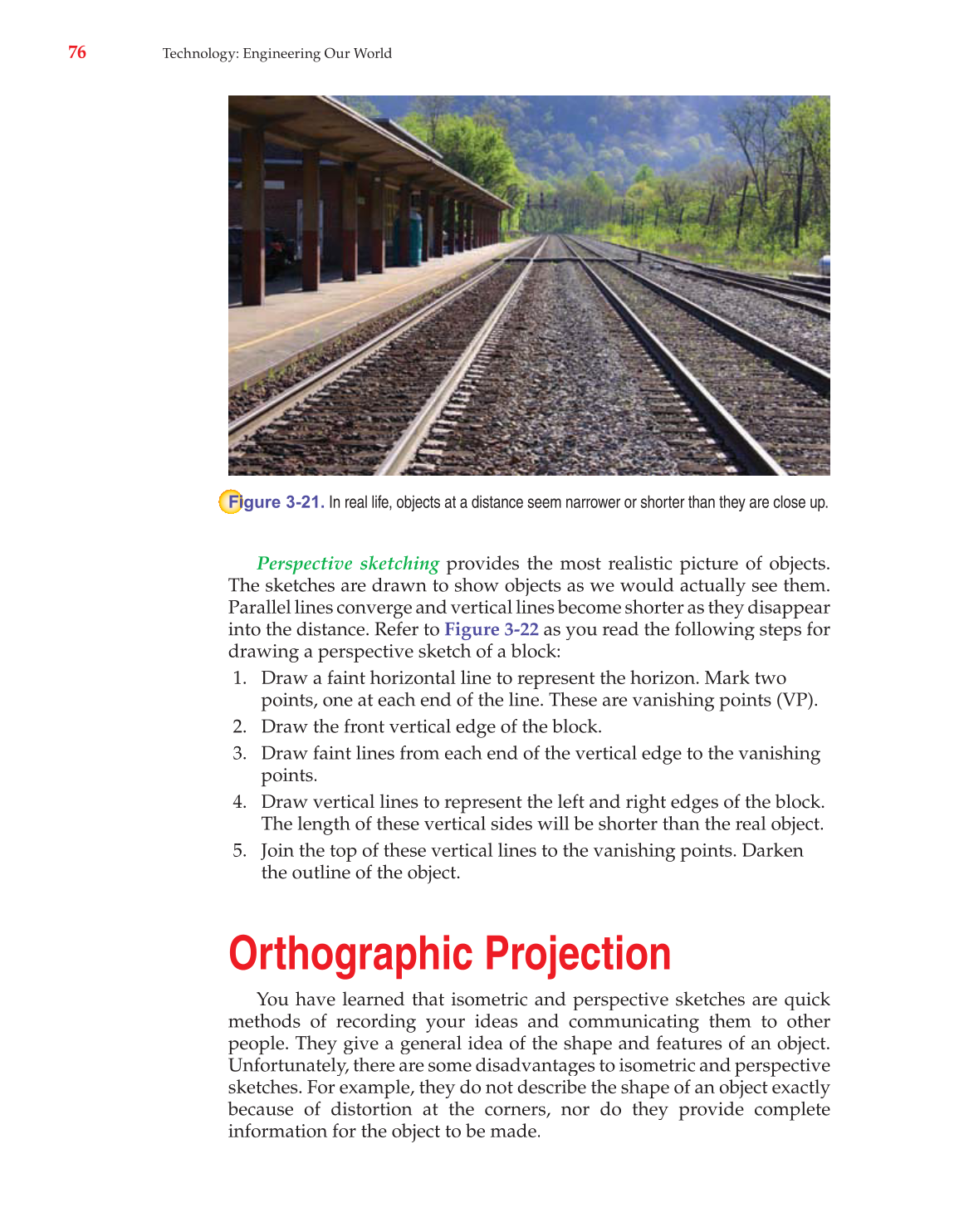

Perspective sketching provides the most realistic picture of objects. g
The sketches are drawn to show objects as we would actually see them.
Parallel lines converge and vertical lines become shorter as they disappear
into the distance. Refer to Figure 3-22 as you read the following steps for
drawing a perspective sketch of a block:
1. Draw a faint horizontal line to represent the horizon. Mark two
points, one at each end of the line. These are vanishing points (VP).
2. Draw the front vertical edge of the block.
3. Draw faint lines from each end of the vertical edge to the vanishing
points.
4. Draw vertical lines to represent the left and right edges of the block.
The length of these vertical sides will be shorter than the real object.
5. Join the top of these vertical lines to the vanishing points. Darken
the outline of the object.
Orthographic Projection
You have learned that isometric and perspective sketches are quick
methods of recording your ideas and communicating them to other
people. They give a general idea of the shape and features of an object.
Unfortunately, there are some disadvantages to isometric and perspective
sketches. For example, they do not describe the shape of an object exactly
because of distortion at the corners, nor do they provide complete
information for the object to be made.
gure 3-21. In real life, objects at a distance seem narrower or shorter than they are close up.

Previous Page Next Page

Resources and Downloads

74
Technology: Engineering Our World

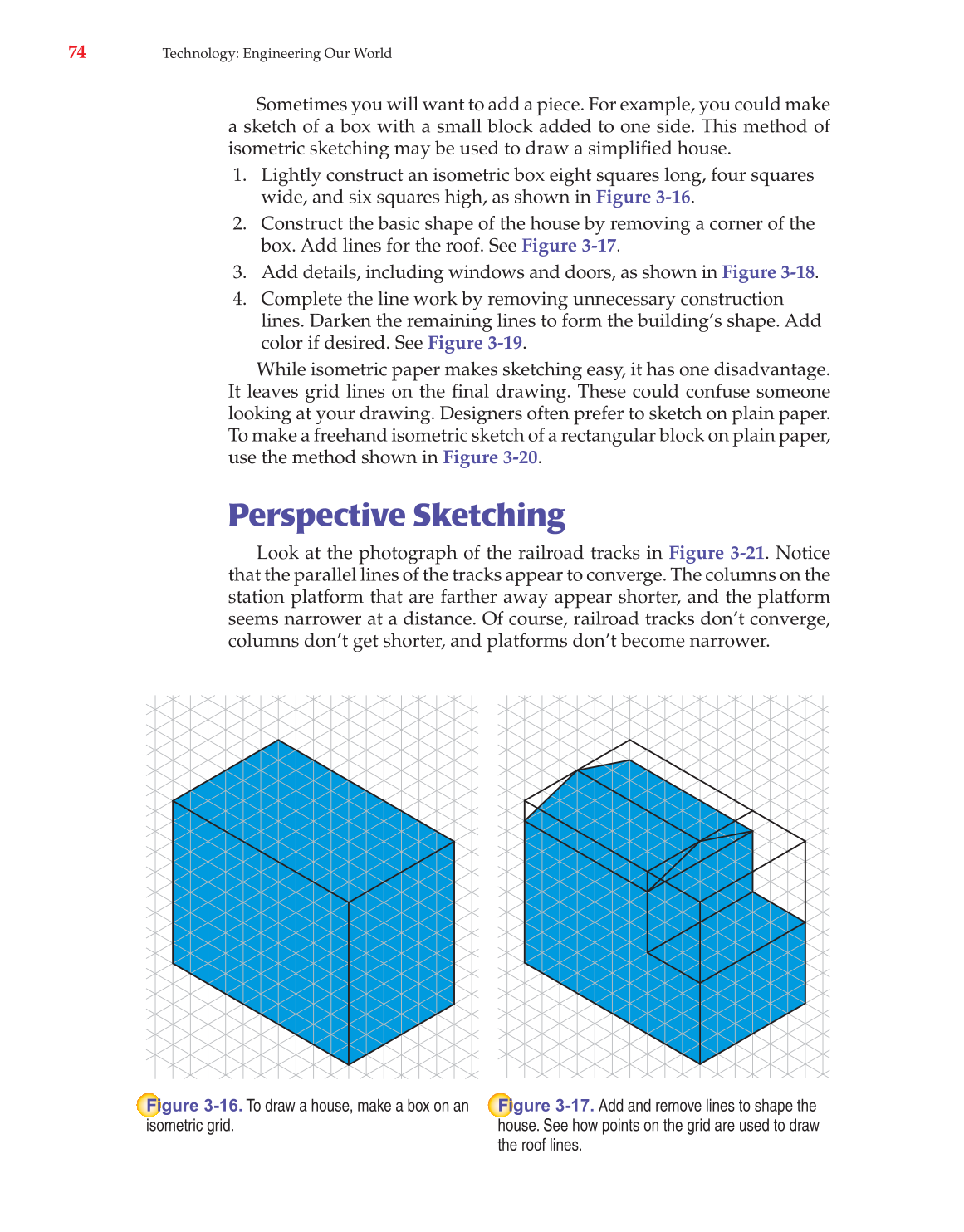

Sometimes you will want to add a piece. For example, you could make
