common type of camera support, Figure 3-2. The camera is attached to a
large, single column on wheels that is pneumatically or hydraulically con-
trolled. Due to the size, weight, and mount of studio cameras, they should
not be taken out of the studio.
Goodheart-Willcox Publisher
Tripod leg
Dolly

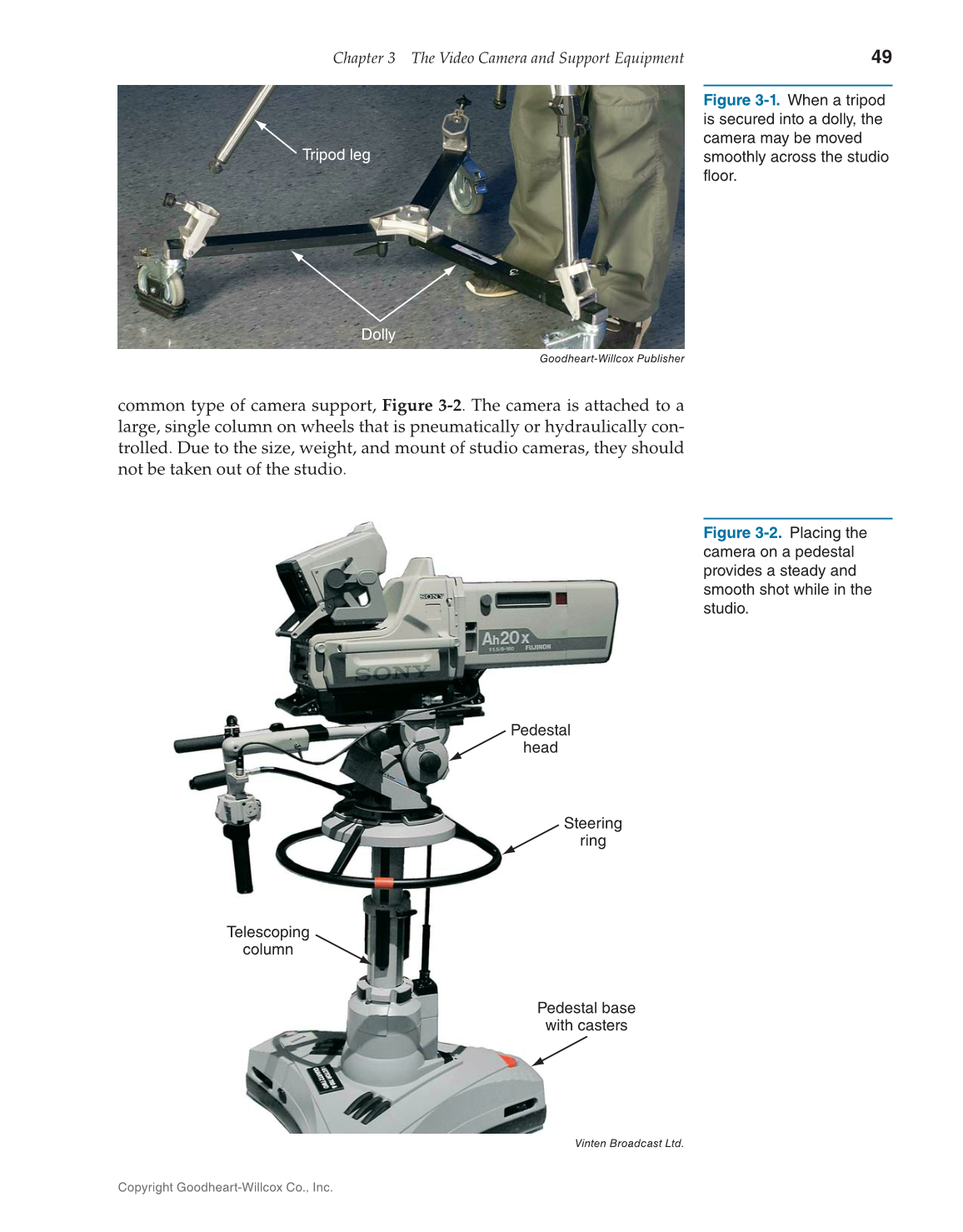

Figure 3-1. When a tripod
is secured into a dolly, the
camera may be moved
smoothly across the studio
floor.
Telescoping
column
Pedestal
head
Steering
ring
Pedestal base
with casters
Vinten Broadcast Ltd.
Figure 3-2. Placing the
camera on a pedestal
provides a steady and
smooth shot while in the
studio.
