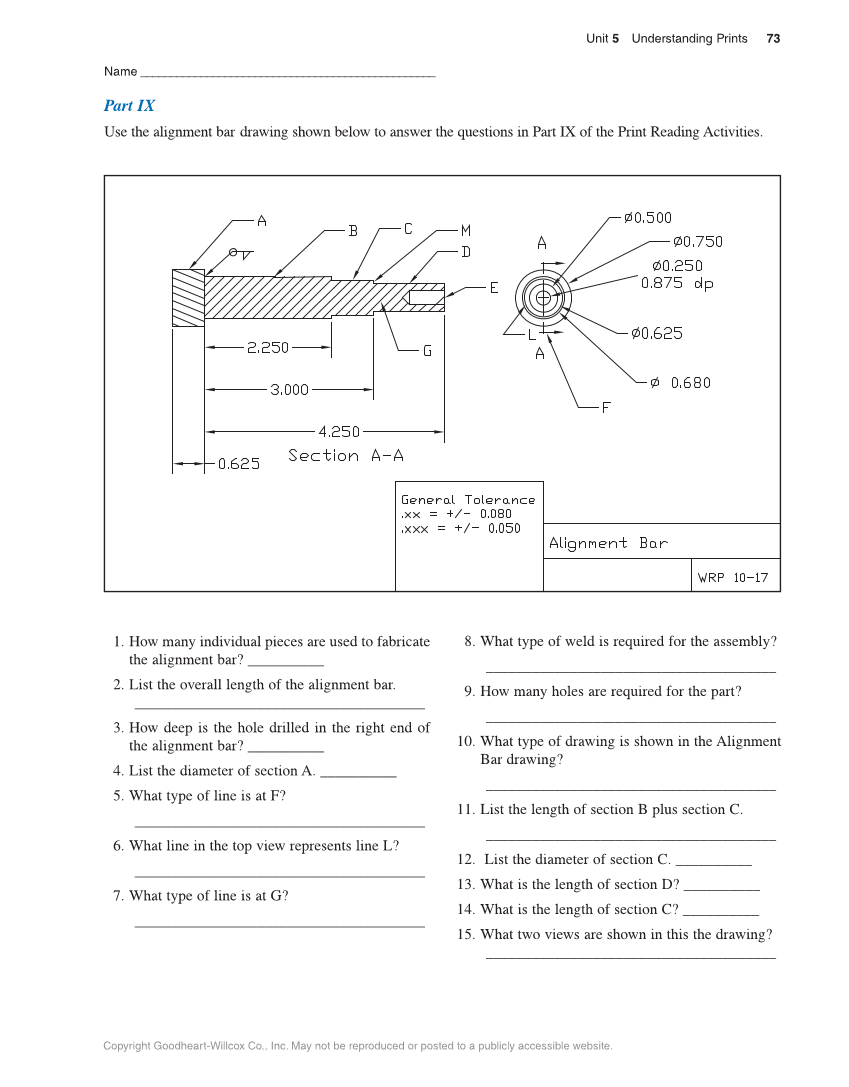

Unit 5 Understanding Prints 73 Name _________________________________________________ Copyright Goodheart-Willcox Co., Inc. May not be reproduced or posted to a publicly accessible website. Part IX Use the alignment bar drawing shown below to answer the questions in Part IX of the Print Reading Activities. 1. How many individual pieces are used to fabricate the alignment bar? __________ 2. List the overall length of the alignment bar. ______________________________________ 3. How deep is the hole drilled in the right end of the alignment bar? __________ 4. List the diameter of section A. __________ 5. What type of line is at F? ______________________________________ 6. What line in the top view represents line L? ______________________________________ 7. What type of line is at G? ______________________________________ 8. What type of weld is required for the assembly? ______________________________________ 9. How many holes are required for the part? ______________________________________ 10. What type of drawing is shown in the Alignment Bar drawing? ______________________________________ 11. List the length of section B plus section C. ______________________________________ 12. List the diameter of section C. __________ 13. What is the length of section D? __________ 14. What is the length of section C? __________ 15. What two views are shown in this the drawing? ______________________________________
