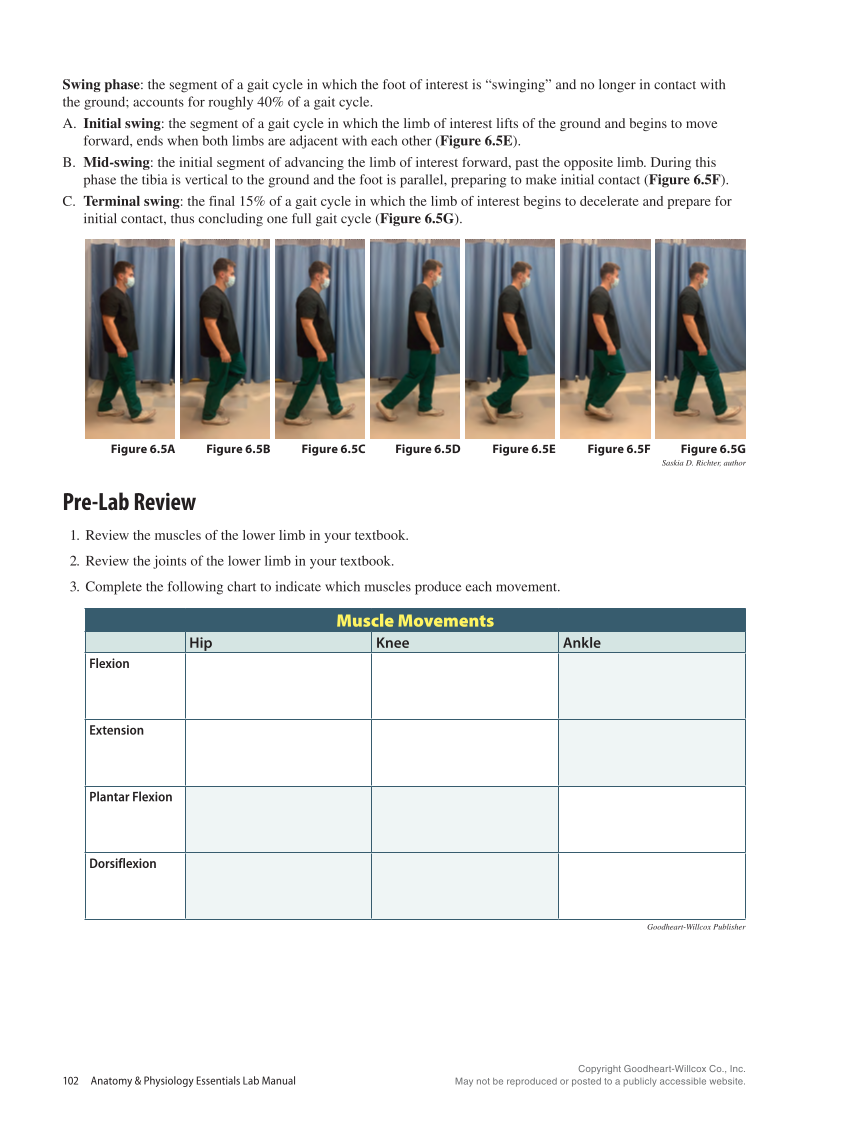

Copyright Goodheart-Willcox Co., Inc. May not be reproduced or posted to a publicly accessible website. 102 Anatomy & Physiology Essentials Lab Manual Swing phase: the segment of a gait cycle in which the foot of interest is “swinging” and no longer in contact with the ground accounts for roughly 40% of a gait cycle. A. Initial swing: the segment of a gait cycle in which the limb of interest lifts of the ground and begins to move forward, ends when both limbs are adjacent with each other (Figure 6.5E). B. Mid-swing: the initial segment of advancing the limb of interest forward, past the opposite limb. During this phase the tibia is vertical to the ground and the foot is parallel, preparing to make initial contact (Figure 6.5F). C. Terminal swing: the final 15% of a gait cycle in which the limb of interest begins to decelerate and prepare for initial contact, thus concluding one full gait cycle (Figure 6.5G). Figure 6.5A Figure 6.5B Figure 6.5C Figure 6.5D Figure 6.5E Figure 6.5F Figure 6.5G Saskia D. Richter, author Pre-Lab Review 1. Review the muscles of the lower limb in your textbook. 2. Review the joints of the lower limb in your textbook. 3. Complete the following chart to indicate which muscles produce each movement. Muscle Movements Hip Knee Ankle Flexion Extension Plantar Flexion Dorsiflexion Goodheart-Willcox Publisher
