Designing with
CADD
The design of bedroom and bathroom
spaces may be developed easily and rapidly
using modern CADD systems. Many of the
elements used in the design of these rooms
and furniture arrangements are commonly
available as symbols. Often, manufacturers
can supply CADD symbols of their specific
products. Custom symbols can also be devel-
oped for use when needed. In addition,
proposed designs can be rendered and shown
to clients. Figure 7-2 shows a CADD-generated
rendering of a large bathroom.
130
Section III Room and Space Planning
Living Area
Service Area
Sleeping Area
GARAGE
DINING ROOM
EATING
AREA
KITCHEN
LIVING ROOM
MASTER
BEDROOM
BEDROOM BEDROOM
BATH
CLOSET
CLOSET
BATH
STORAGE
LIN CL
PATIO

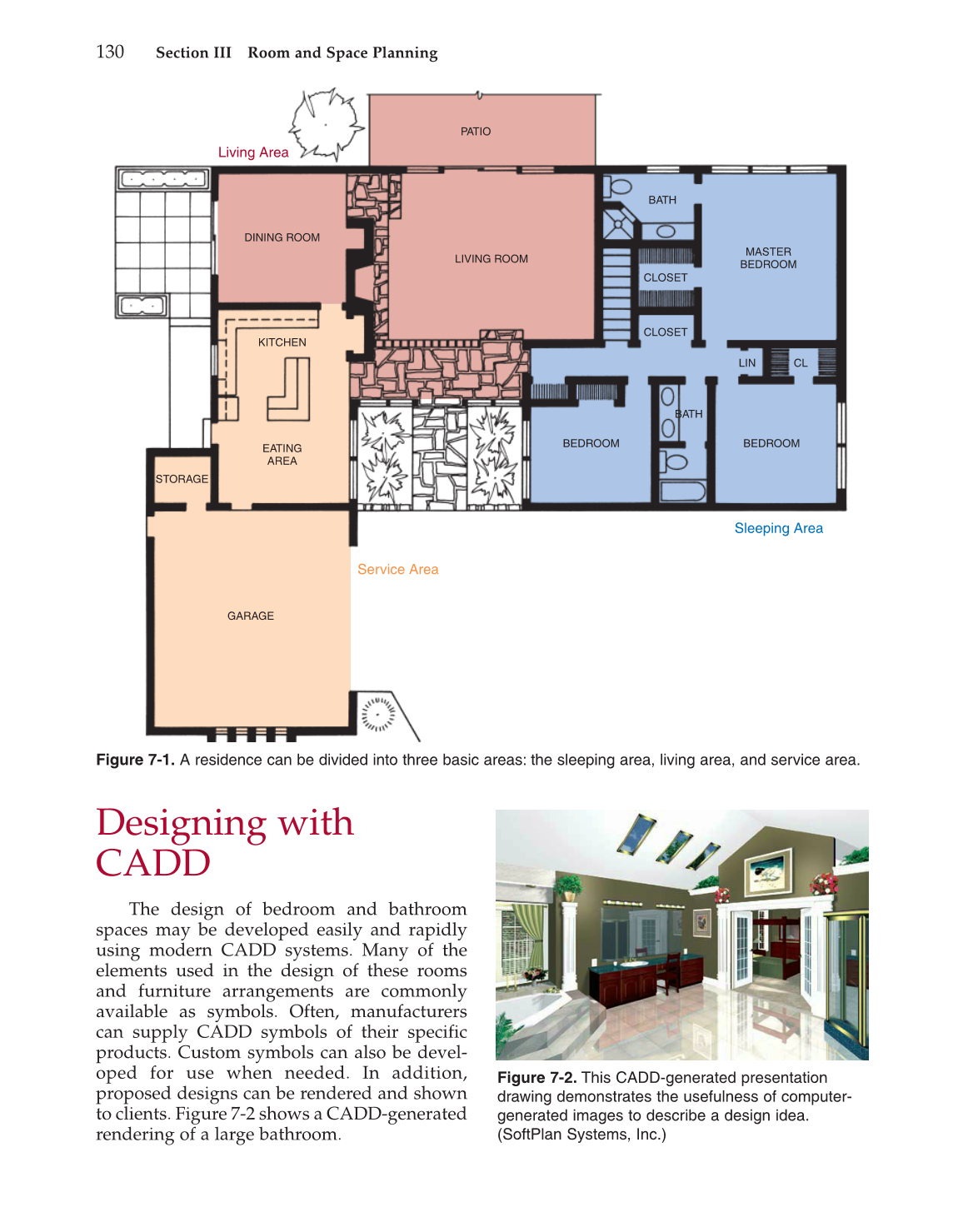

Figure 7-1. A residence can be divided into three basic areas: the sleeping area, living area, and service area.
Figure 7-2. This CADD-generated presentation
drawing demonstrates the usefulness of computer-
generated images to describe a design idea.
(SoftPlan Systems, Inc.)
