Section III Room and Space Planning
BED 2
11 × 12
BED 3
11 × 11
BED 4
11 × 15
BED 1
16 × 16
BATH
2
FAMILY
18 × 20
BATH 1
KITCHEN
11 × 21
DINING
12 × 16
LIVING
18 × 22
UTILITY
BATH
3
BAR
3 CAR GARAGE
FOYER

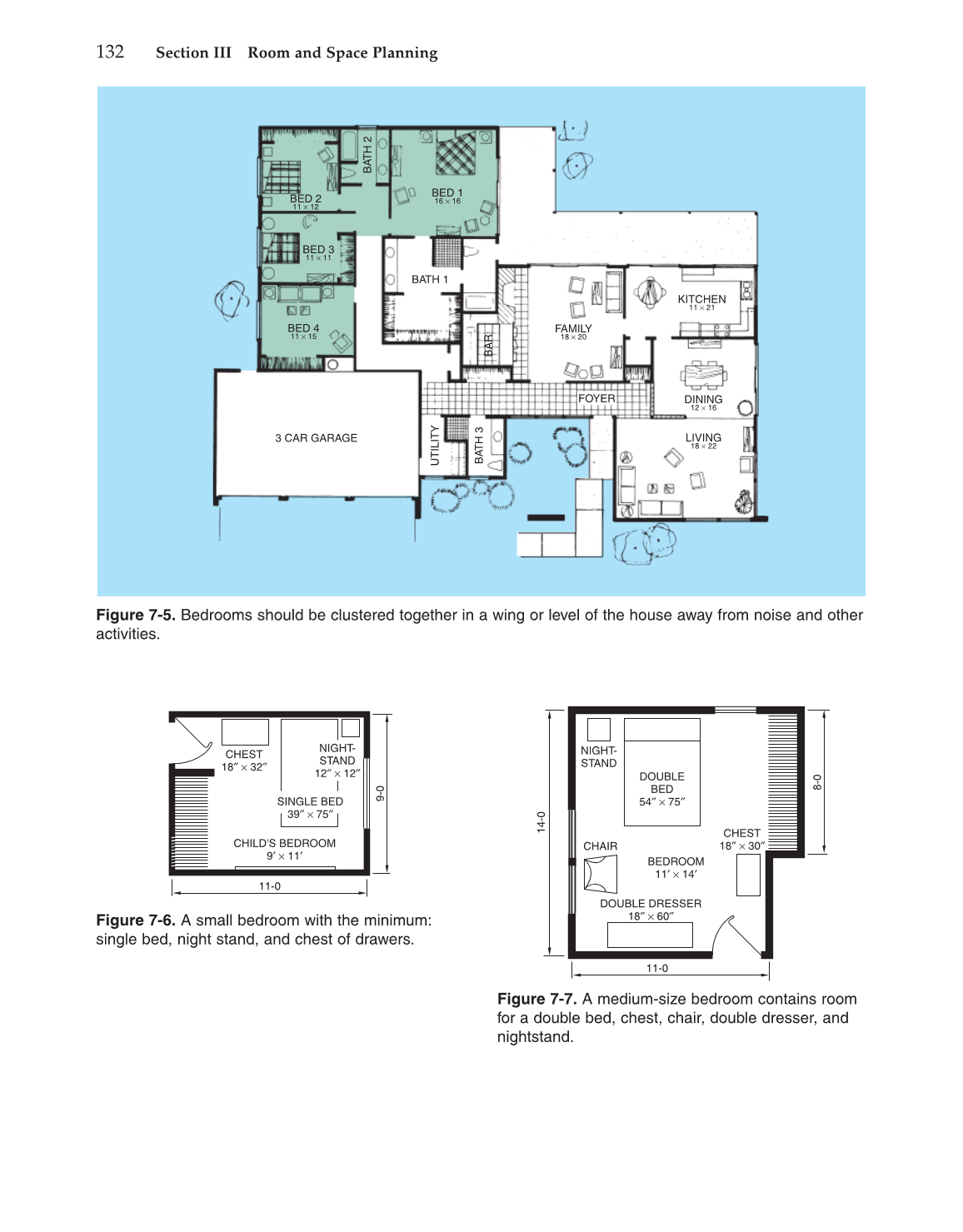

Figure 7-5. Bedrooms should be clustered together in a wing or level of the house away from noise and other
activities.
CHEST
18″ × 32″
SINGLE BED
39″ × 75″
NIGHT-
STAND
12″ × 12″
CHILD'S BEDROOM
9′ × 11′
11-0
9-0
Figure 7-6. A small bedroom with the minimum:
single bed, night stand, and chest of drawers.
11-0
14-0
8-0
NIGHT-
STAND
DOUBLE
BED
54″ × 75″
BEDROOM
11′ × 14′
CHAIR
DOUBLE DRESSER
18″ × 60″
CHEST
18″ × 30″
Figure 7-7. A medium-size bedroom contains room
for a double bed, chest, chair, double dresser, and
nightstand.
