dresser, and other small pieces of furniture. A
large bedroom has over 175 square feet of floor
space, Figure 7-8. A room of this size provides
space for additional furniture. A desk, chair, or
television set may be included as bedroom
furniture. The largest bedroom is usually
considered to be the master bedroom. It may
have its own private bath.
Bedroom design is directly related to
furniture size and arrangement. First, deter-
mine common furniture sizes, Figure 7-9.
Then, design the bedroom with a specific
arrangement in mind. Figure 7-10 shows using
CADD to plan a bedroom based on a specific
furniture arrangement. The steps are simple:
(1) Determine the size of furniture to be used;
(2) Draw or insert an appropriate symbol to
Chapter 7 Room Planning—Sleeping Area and Bath Facilities
133
16-0
NIGHT-
STAND
KING-SIZE BED
76″ × 80″
MASTER BEDROOM
WITH BATH
16′ × 21′
NIGHT-
STAND
CHEST
18″ × 36″
21-0
14-0 7-0
WALK-IN
CLOSET
CLOSET
TRIPLE DRESSER
18″ × 72″
DESK
18″ × 30″

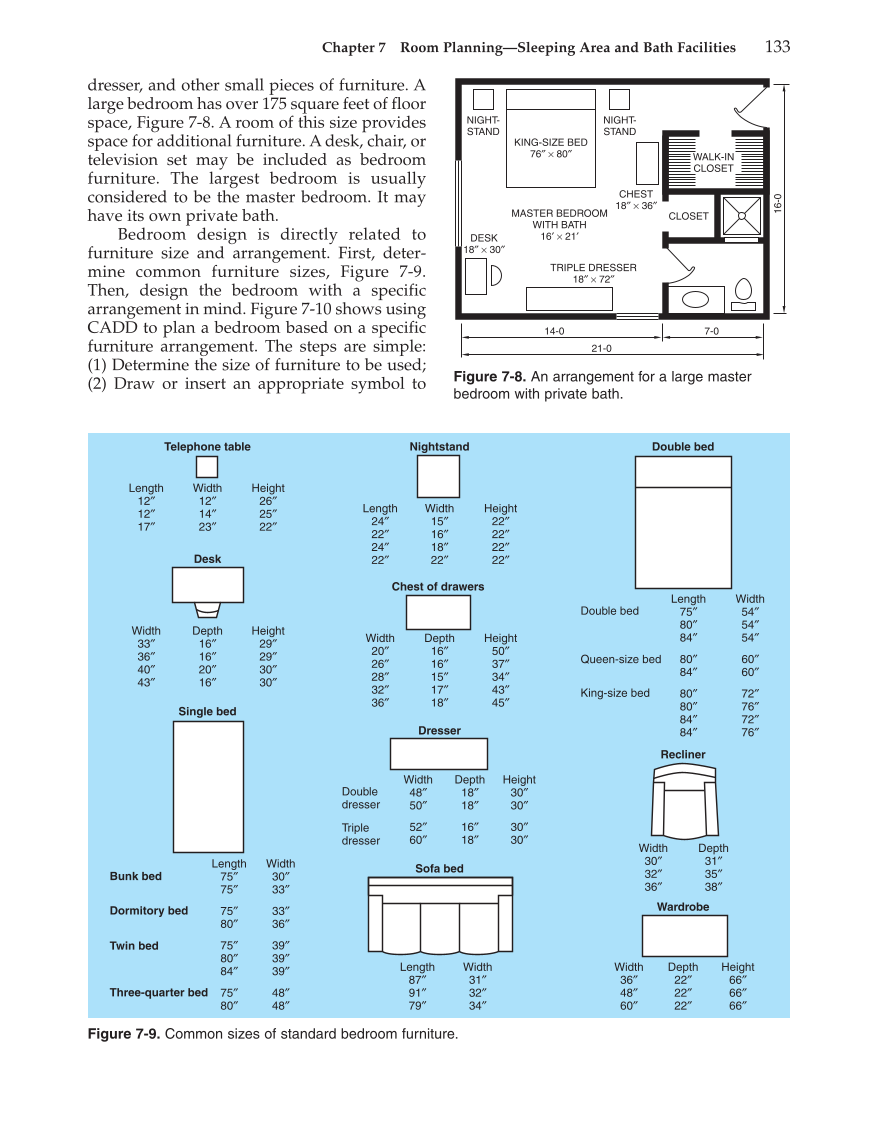

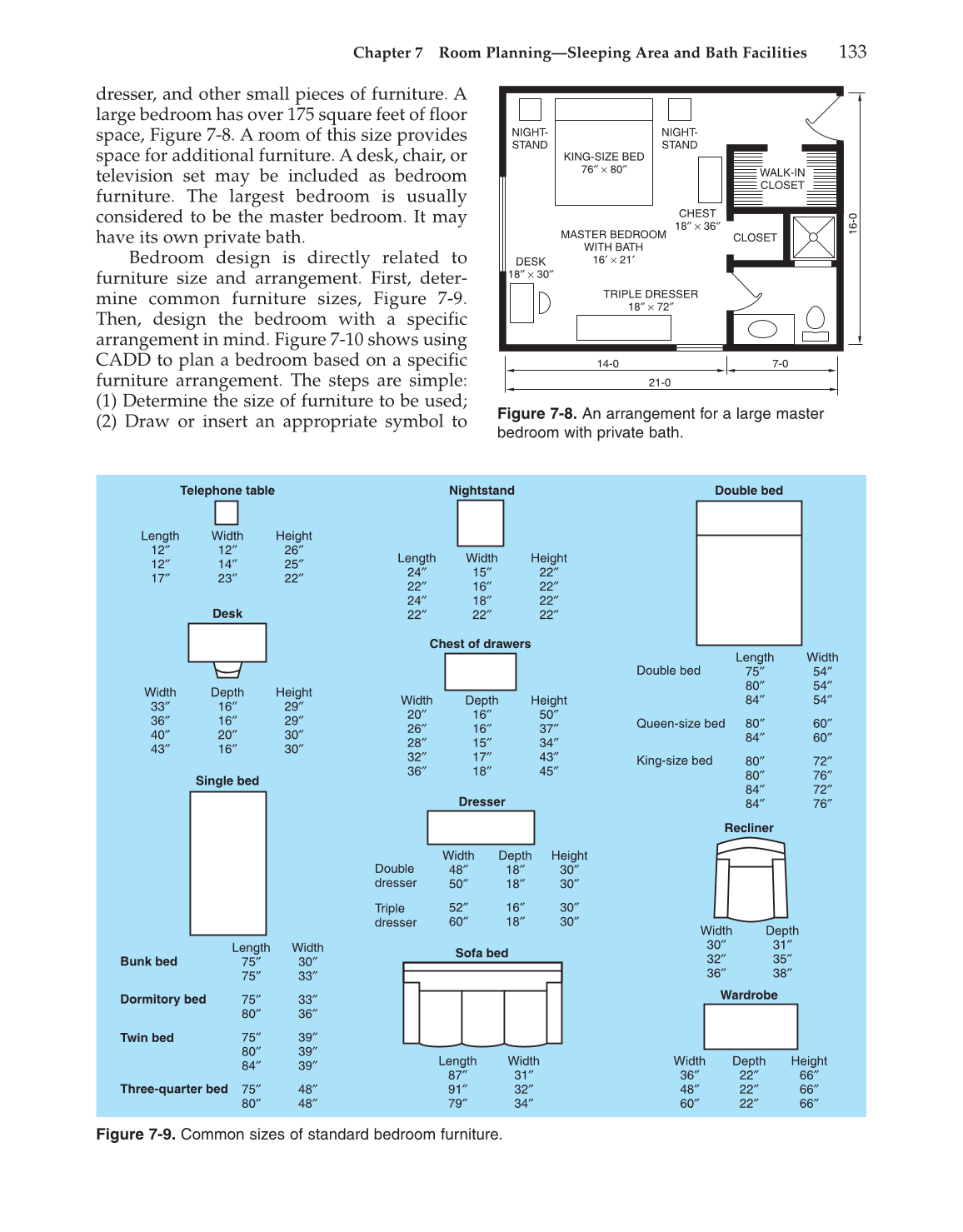

Figure 7-8. An arrangement for a large master
bedroom with private bath.
Telephone table
Length
12″
12″
17″
Width
12″
14″
23″
Height
26″
25″
22″
Nightstand Double bed
Length
24″
22″
24″
22″
Width
15″
16″
18″
22″
Height
22″
22″
22″
22″
Chest of drawers
Desk
Width
33″
36″
40″
43″
Depth
16″
16″
20″
16″
Height
29″
29″
30″
30″
Single bed
Dresser
Width
48″
50″
52″
60″
Depth
18″
18″
16″
18″
Height
30″
30″
30″
30″
Double
dresser
Triple
dresser
Width
20″
26″
28″
32″
36″
Depth
16″
16″
15″
17″
18″
Height
50″
37″
34″
43″
45″
Length
75″
80″
84″
80″
84″
80″
80″
84″
84″
Width
54″
54″
54″
60″
60″
72″
76″
72″
76″
Double bed
Queen-size bed
King-size bed
Recliner
Width
30″
32″
36″
Depth
31″
35″
38″
Wardrobe
Width
36″
48″
60″
Depth
22″
22″
22″
Height
66″
66″
66″
Length
87″
91″
79″
Width
31″
32″
34″
Length
75″
75″
75″
80″
75″
80″
84″
75″
80″
Width
30″
33″
33″
36″
39″
39″
39″
48″
48″
Bunk bed
Dormitory bed
Twin bed
Three-quarter bed
Sofa bed
Figure 7-9. Common sizes of standard bedroom furniture.
