Bathroom doors are ordinarily not as wide
as bedroom doors. A door width of 2′-6″ or
even 2′-4″ is usually sufficient. If provisions
are being made for wheelchair use, then the
door should be a minimum of 2′-8″ wide.
Doors should swing into the bathroom and not
interfere with any fixtures. In some instances,
a pocket door is used to subdivide the bath
into two or more areas, as in a two-compart-
ment bath, Figure 7-21.
Primary Fixtures
The three primary fixtures found in most
bathrooms are the lavatory, water closet
(toilet), and tub or shower. The arrangement of
the fixtures determines whether or not the bath
is truly functional. For example, avoid locating
the lavatory or water closet under a window.
Provide ample space for each fixture in the
room. Bathroom fixtures vary in size as shown
in Figure 7-22. Check the manufacturer’s specifi-
cations and code requirements for placement
of each of the fixtures.
A mirror should be placed above the sink,
Figure 7-23. Arrange the mirror so it will be
well lighted and away from the tub to prevent
fogging. The mirror should be tilted slightly
downward for full viewing or be mounted low
enough for a wheelchair user to see. Another
140
Section III Room and Space Planning
5-0
2-8
2-0
8-0
2-0
4-0
2-6
11-0
1-6 1-6 2-6 3-0

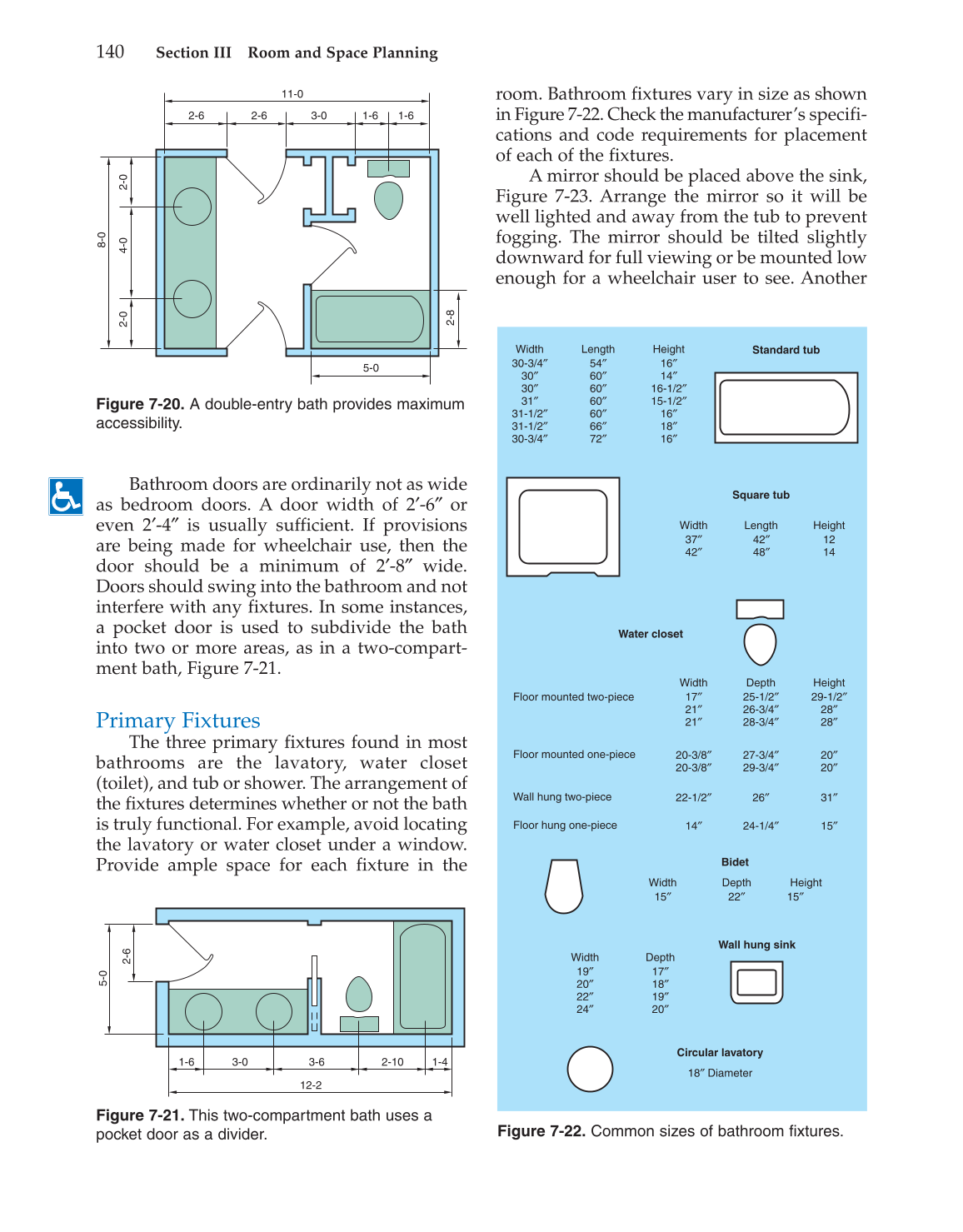

Figure 7-20. A double-entry bath provides maximum
accessibility.
1-6
12-2
3-0 3-6 2-10 1-4
5-0
2-6
Figure 7-21. This two-compartment bath uses a
pocket door as a divider.
Floor mounted two-piece 17″
21″
21″
Width
Floor mounted one-piece
Wall hung two-piece
Floor hung one-piece
Water closet
25-1/2″
26-3/4″
28-3/4″
Depth
29-1/2″
28″
28″
20-3/8″
20-3/8″
27-3/4″
29-3/4″
20″
20″
Height
37″
42″
Width
42″
48″
Length
Square tub
12
14
Height
Standard tub
30-3/4″
30″
30″
31″
31-1/2″
31-1/2″
30-3/4″
Width
54″
60″
60″
60″
60″
66″
72″
Length
16″
14″
16-1/2″
15-1/2″
16″
18″
16″
Height
22-1/2″ 26″ 31″
14″ 24-1/4″ 15″
15″
Width
22″
Depth
15″
Height
Bidet
Wall hung sink
19″
20″
22″
24″
Width
17″
18″
19″
20″
Depth
18″ Diameter
Circular lavatory
Figure 7-22. Common sizes of bathroom fixtures.
