Chapter 19 Parking Brake Service 339

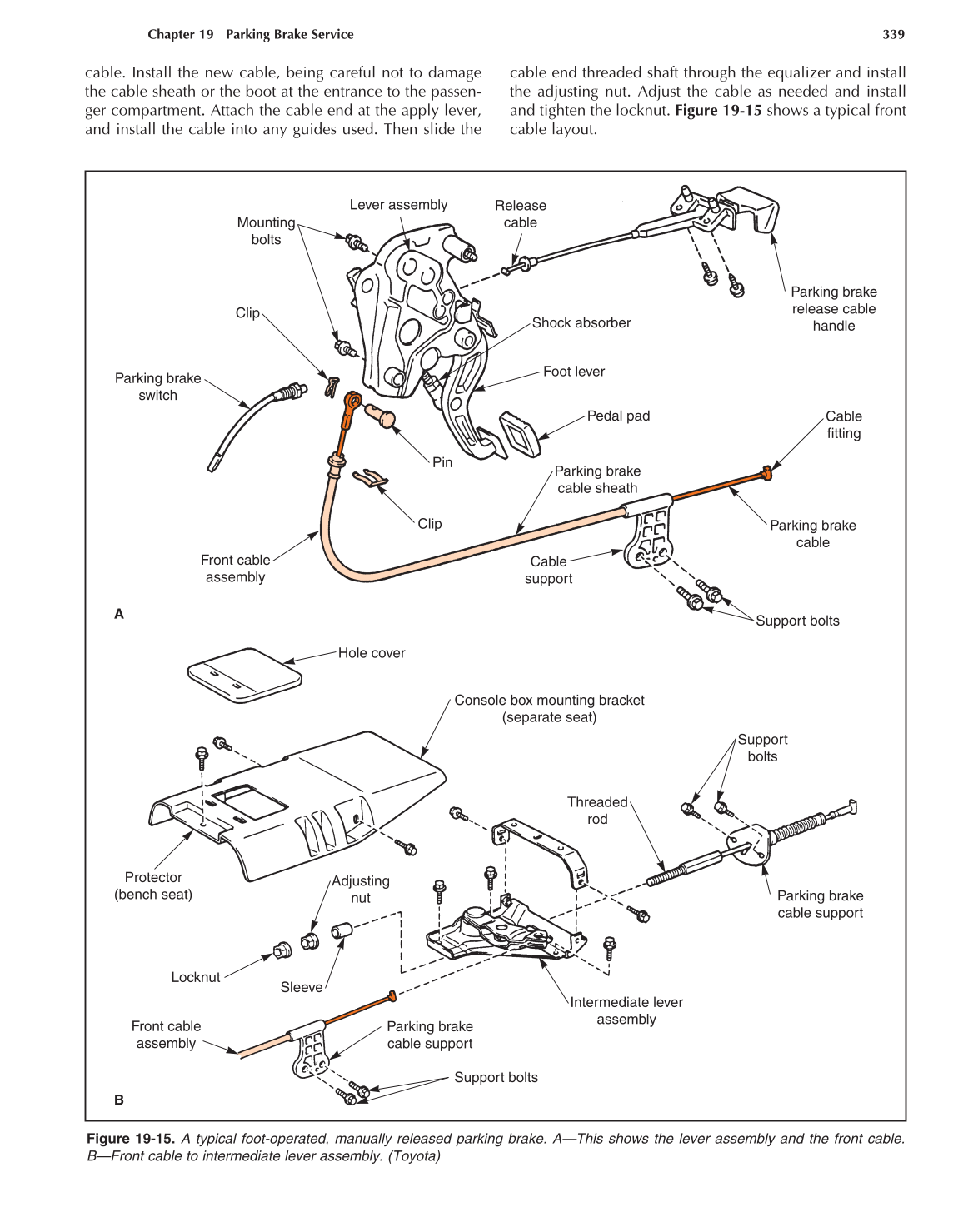

Figure 19-15. A typical foot-operated, manually released parking brake. A—This shows the lever assembly and the front cable.
B—Front cable to intermediate lever assembly. (Toyota)
Lever assembly Release
cable Mounting
bolts
A
B
Clip
Parking brake
switch
Front cable
assembly
Parking brake
cable sheath
Cable
support
Clip
Pin
Hole cover
Console box mounting bracket
(separate seat)
Pedal pad
Foot lever
Shock absorber
Parking brake
release cable
handle
Cable
fitting
Parking brake
cable
Front cable
assembly
Support bolts
Parking brake
cable support
Support bolts
Threaded
rod
Support
bolts
Parking brake
cable support
Intermediate lever
assembly
Sleeve
Locknut
Adjusting
nut
Protector
(bench seat)
cable. Install the new cable, being careful not to damage
the cable sheath or the boot at the entrance to the passen-
ger compartment. Attach the cable end at the apply lever,
and install the cable into any guides used. Then slide the
cable end threaded shaft through the equalizer and install
the adjusting nut. Adjust the cable as needed and install
and tighten the locknut. Figure 19-15 shows a typical front
cable layout.
