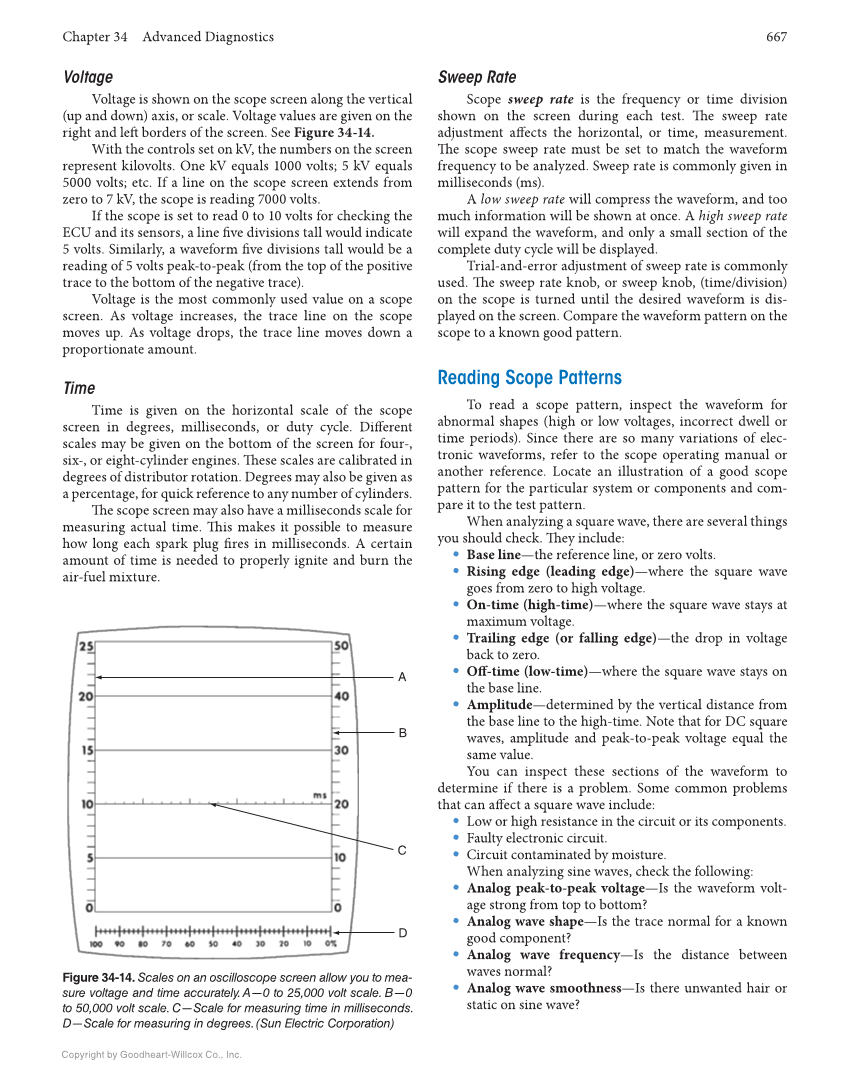

Chapter  34  Advanced  Diagnostics  667  Copyright  by  Goodheart-Willcox  Co.,  Inc.  Voltage  Voltage  is  shown  on  the  scope  screen  along  the  vertical  (up  and  down)  axis,  or  scale.  Voltage  values  are  given  on  the  right  and  left  borders  of  the  screen.  See  Figure  34-14.  With  the  controls  set  on  kV,  the  numbers  on  the  screen  represent  kilovolts.  One  kV  equals  1000  volts  5  kV  equals  5000  volts  etc.  If  a  line  on  the  scope  screen  extends  from  zero  to  7  kV,  the  scope  is  reading  7000  volts.  If  the  scope  is  set  to  read  0  to  10  volts  for  checking  the  ECU  and  its  sensors,  a  line  fi  ve  divisions  tall  would  indicate  5  volts.  Similarly,  a  waveform  fi  ve  divisions  tall  would  be  a  reading  of  5  volts  peak-to-peak  (from  the  top  of  the  positive  trace  to  the  bottom  of  the  negative  trace).  Voltage  is  the  most  commonly  used  value  on  a  scope  screen.  As  voltage  increases,  the  trace  line  on  the  scope  moves  up.  As  voltage  drops,  the  trace  line  moves  down  a  proportionate  amount.  Time  Time  is  given  on  the  horizontal  scale  of  the  scope  screen  in  degrees,  milliseconds,  or  duty  cycle.  Diff  erent  scales  may  be  given  on  the  bottom  of  the  screen  for  four-,  six-,  or  eight-cylinder  engines.  Th  ese  scales  are  calibrated  in  degrees  of  distributor  rotation.  Degrees  may  also  be  given  as  a  percentage,  for  quick  reference  to  any  number  of  cylinders.  Th  e  scope  screen  may  also  have  a  milliseconds  scale  for  measuring  actual  time.  Th  is  makes  it  possible  to  measure  how  long  each  spark  plug  fi  res  in  milliseconds.  A  certain  amount  of  time  is  needed  to  properly  ignite  and  burn  the  air-fuel  mixture.  Sweep  Rate  Scope  sweep  rate  is  the  frequency  or  time  division  shown  on  the  screen  during  each  test.  Th  e  sweep  rate  adjustment  aff  ects  the  horizontal,  or  time,  measurement.  Th  e  scope  sweep  rate  must  be  set  to  match  the  waveform  frequency  to  be  analyzed.  Sweep  rate  is  commonly  given  in  milliseconds  (ms).  A  low  sweep  rate  will  compress  the  waveform,  and  too  much  information  will  be  shown  at  once.  A  high  sweep  rate  will  expand  the  waveform,  and  only  a  small  section  of  the  complete  duty  cycle  will  be  displayed.  Trial-and-error  adjustment  of  sweep  rate  is  commonly  used.  Th  e  sweep  rate  knob,  or  sweep  knob,  (time/division)  on  the  scope  is  turned  until  the  desired  waveform  is  dis-  played  on  the  screen.  Compare  the  waveform  pattern  on  the  scope  to  a  known  good  pattern.  Reading  Scope  Patterns  To  read  a  scope  pattern,  inspect  the  waveform  for  abnormal  shapes  (high  or  low  voltages,  incorrect  dwell  or  time  periods).  Since  there  are  so  many  variations  of  elec-  tronic  waveforms,  refer  to  the  scope  operating  manual  or  another  reference.  Locate  an  illustration  of  a  good  scope  pattern  for  the  particular  system  or  components  and  com-  pare  it  to  the  test  pattern.  When  analyzing  a  square  wave,  there  are  several  things  you  should  check.  Th  ey  include:  •  Base  line—the  reference  line,  or  zero  volts.  •  Rising  edge  (leading  edge)—where  the  square  wave  goes  from  zero  to  high  voltage.  •  On-time  (high-time)—where  the  square  wave  stays  at  maximum  voltage.  •  Trailing  edge  (or  falling  edge)—the  drop  in  voltage  back  to  zero.  •  Off  -time  (low-time)—where  the  square  wave  stays  on  the  base  line.  •  Amplitude—determined  by  the  vertical  distance  from  the  base  line  to  the  high-time.  Note  that  for  DC  square  waves,  amplitude  and  peak-to-peak  voltage  equal  the  same  value.  You  can  inspect  these  sections  of  the  waveform  to  determine  if  there  is  a  problem.  Some  common  problems  that  can  aff  ect  a  square  wave  include:  •  Low  or  high  resistance  in  the  circuit  or  its  components.  •  Faulty  electronic  circuit.  •  Circuit  contaminated  by  moisture.  When  analyzing  sine  waves,  check  the  following:  •  Analog  peak-to-peak  voltage—Is  the  waveform  volt-  age  strong  from  top  to  bottom?  •  Analog  wave  shape—Is  the  trace  normal  for  a  known  good  component?  •  Analog  wave  frequency—Is  the  distance  between  waves  normal?  •  Analog  wave  smoothness—Is  there  unwanted  hair  or  static  on  sine  wave?  Figure  34-14.  Scales  on  an  oscilloscope  screen  allow  you  to  mea-  sure  voltage  and  time  accurately.  A—0  to  25,000  volt  scale.  B—0  to  50,000  volt  scale.  C—Scale  for  measuring  time  in  milliseconds.  D—Scale  for  measuring  in  degrees.  (Sun  Electric  Corporation)  A  B  C  D
