NOTE NOTE
After exiting the
Background
dialog box, you are returned to the
View
Manager
dialog box. Picking the
OK
button to exit the
View Manager
dialog box does not necessarily activate the view that you just created or
modifi ed. The view must be set current to see the effects of the changes
to the background. A view can be set current using the drop-down list
in the
Views
panel on the
Visualize
tab of the ribbon, the
View Controls
fl yout in the viewport controls, or the
View Manager
dialog box.
Select the
view
Pick to
change the
background
Preview
Properties
Current
location

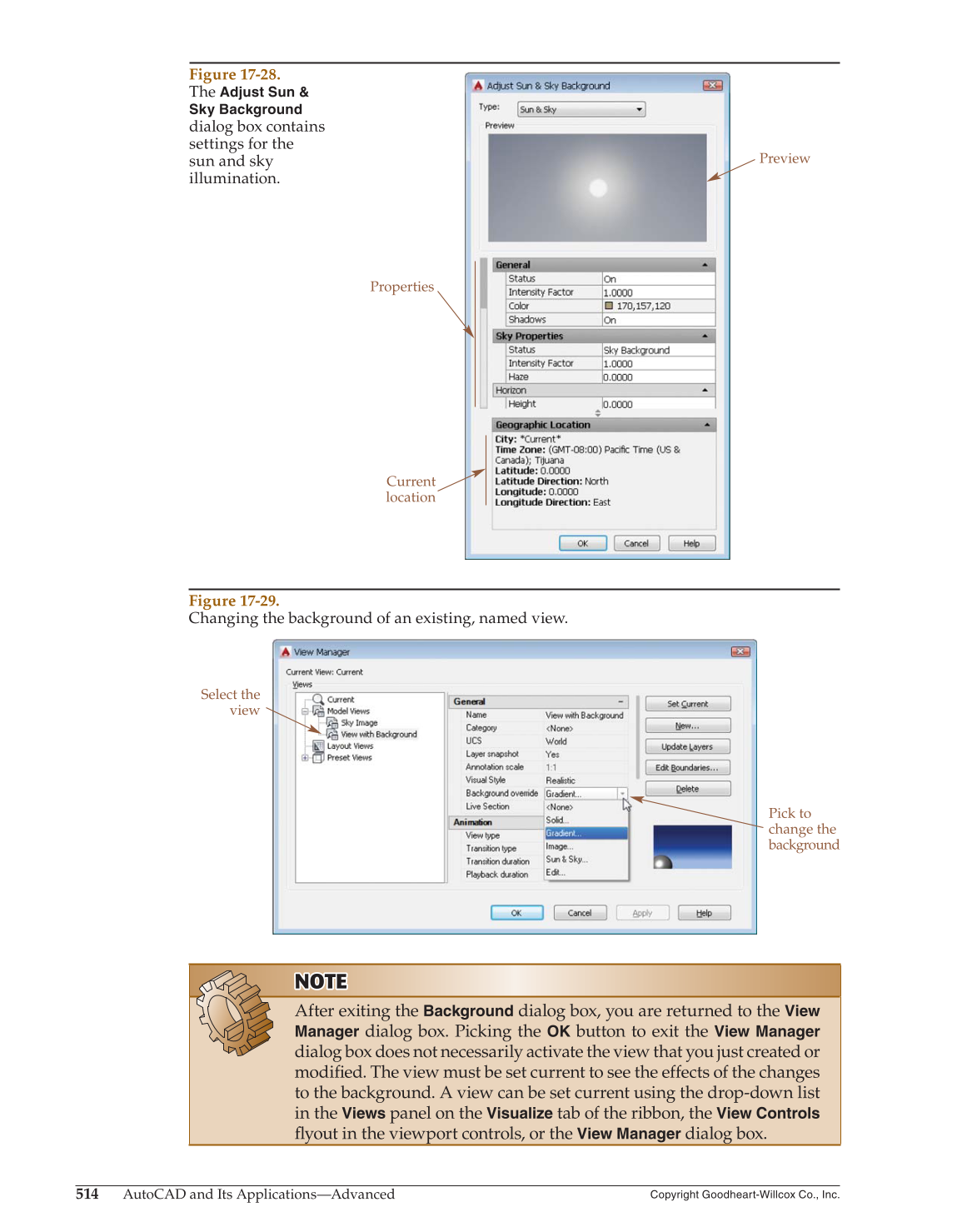

Figure 17-28.
The
Adjust Sun &
Sky Background
dialog box contains
settings for the
sun and sky
illumination.
Figure 17-29.
Changing the background of an existing, named view.
