6
AutoCAD and Its Applications—Advanced
Copyright Goodheart-Willcox Co., Inc.
A B
Pick to
pin the
panel
Not pinned Pinned
Expanded
panel displayed
Pick to
expand
the
panel

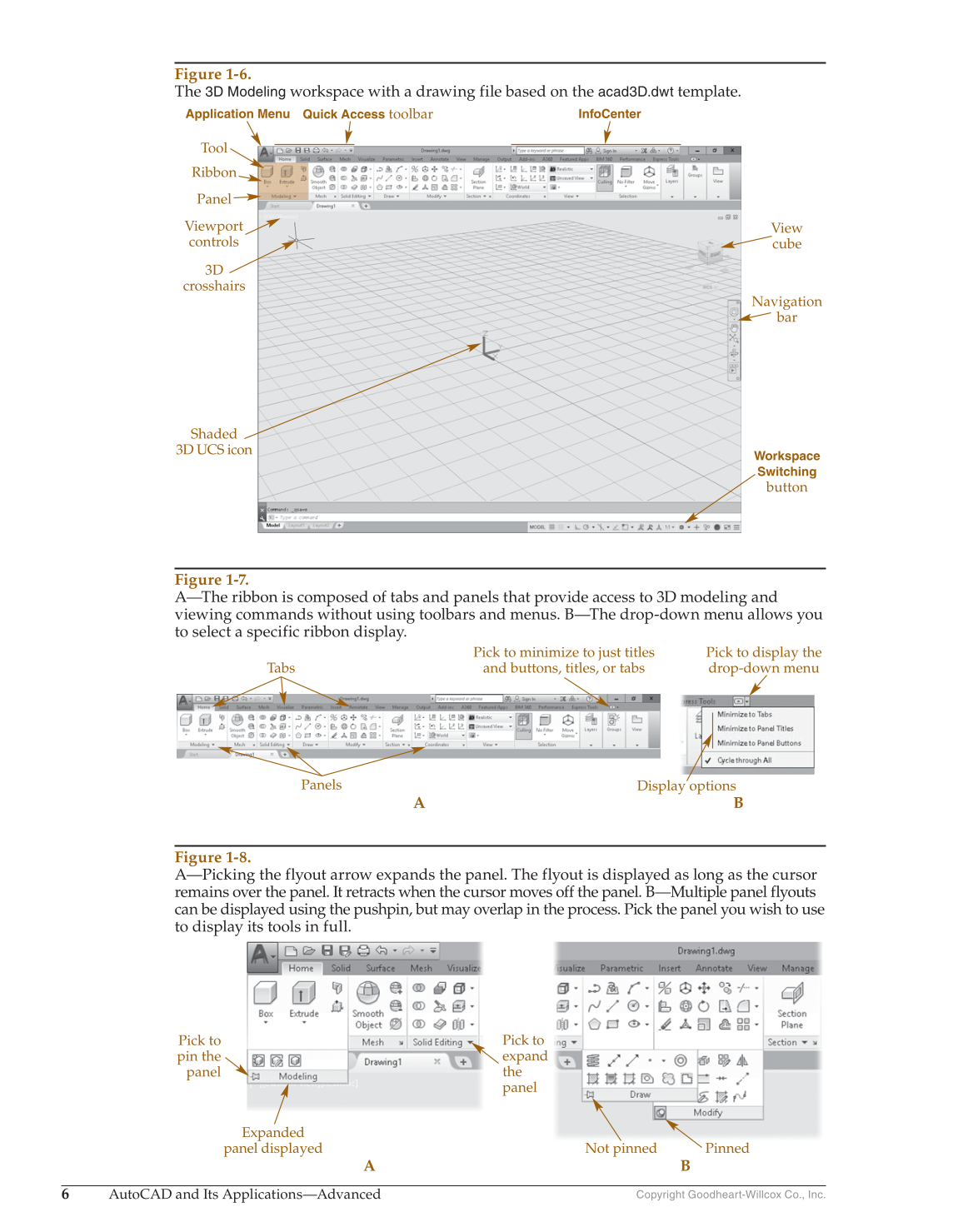

Figure 1-8.
A—Picking the flyout arrow expands the panel. The flyout is displayed as long as the cursor
remains over the panel. It retracts when the cursor moves off the panel. B—Multiple panel flyouts
can be displayed using the pushpin, but may overlap in the process. Pick the panel you wish to use
to display its tools in full.
Panels
Tabs
Pick to minimize to just titles
and buttons, titles, or tabs
Pick to display the
drop-down menu
Display options
A B
Figure 1-7.
A—The ribbon is composed of tabs and panels that provide access to 3D modeling and
viewing commands without using toolbars and menus. B—The drop-down menu allows you
to select a specific ribbon display.
Figure 1-6.
The
3D Modeling
workspace with a drawing file based on the
acad3D.dwt
template.
Shaded
3D UCS icon
3D
crosshairs
Navigation
bar
View
cube
Viewport
controls
Panel
Ribbon
Tool
Workspace
Switching
button
Quick Access
toolbar
InfoCenter Application Menu
