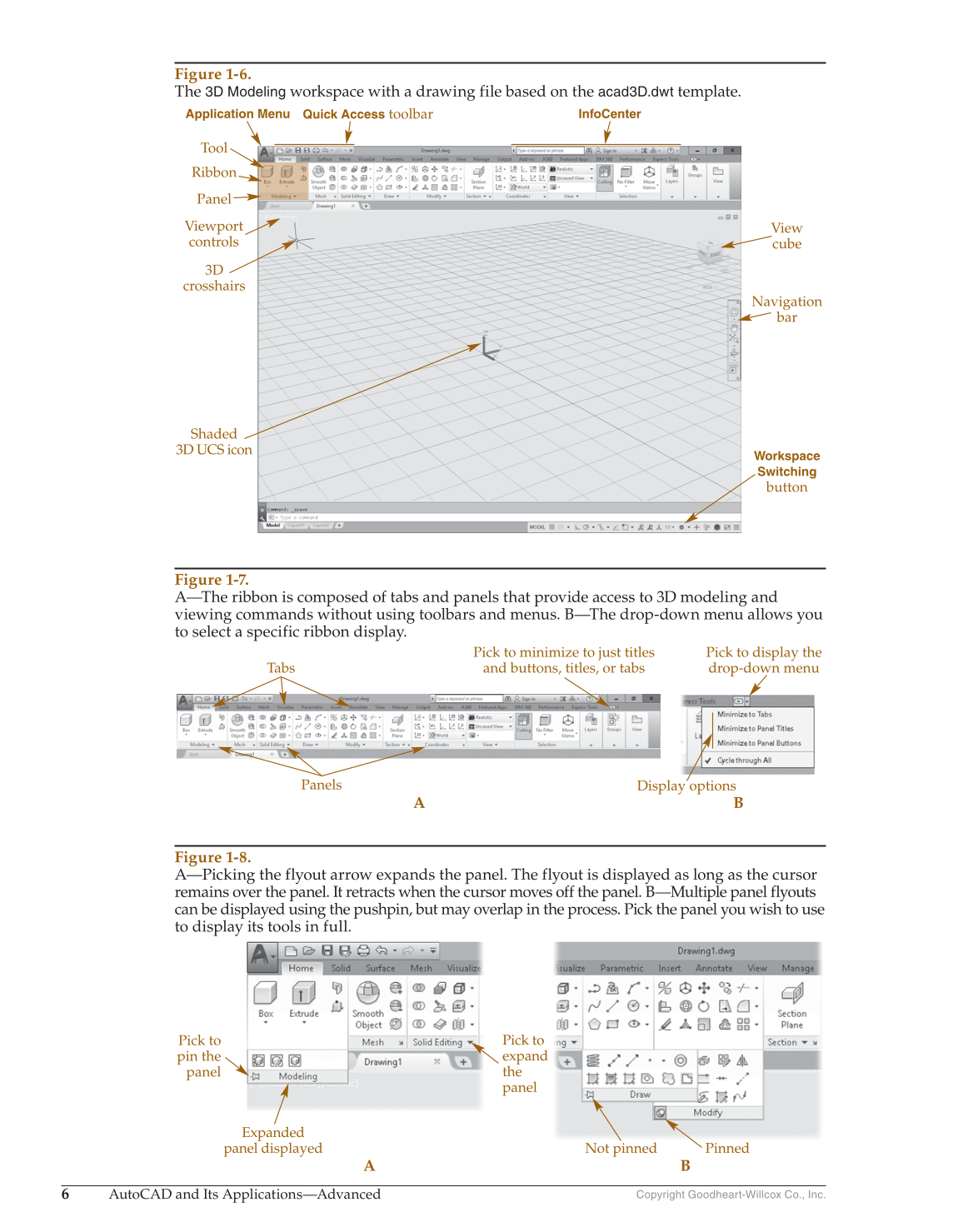

are currently displayed in the ribbon have a check mark next to their name. Select any
of the checked panels that you wish to remove from the current display. Unchecked
panels can be displayed by selecting their name. Each tab has its own set of available
panels.
Each panel contains command tools. These are discussed in detail in the appro-
priate chapters of this book.
NOTE NOTE
The
Drafting &
Annotation,
3D
Basics, and
3D Modeling
workspaces display the ribbon
by default. In each workspace, the ribbon displays a set of panels specifi cally related
to that workspace. As soon as you select a different workspace or reload the current
workspace, the panels associated with the workspace are displayed in the ribbon.
PROFESSIONAL TIP PROFESSIONAL TIP
All elements of the AutoCAD interface, including ribbon panels, toolbars, menus, and
the drawing window appearance, can be customized using the customization func-
tions in AutoCAD. In addition, custom commands can be created and assigned to
interface elements. The
Options
dialog box, accessed with the
OPTIONS
command, and
the
Customize User Interface
dialog box, accessed with the
CUI
command, are used
to make customizations in AutoCAD. The AutoCAD help system provides detailed
documentation and examples of AutoCAD customization.

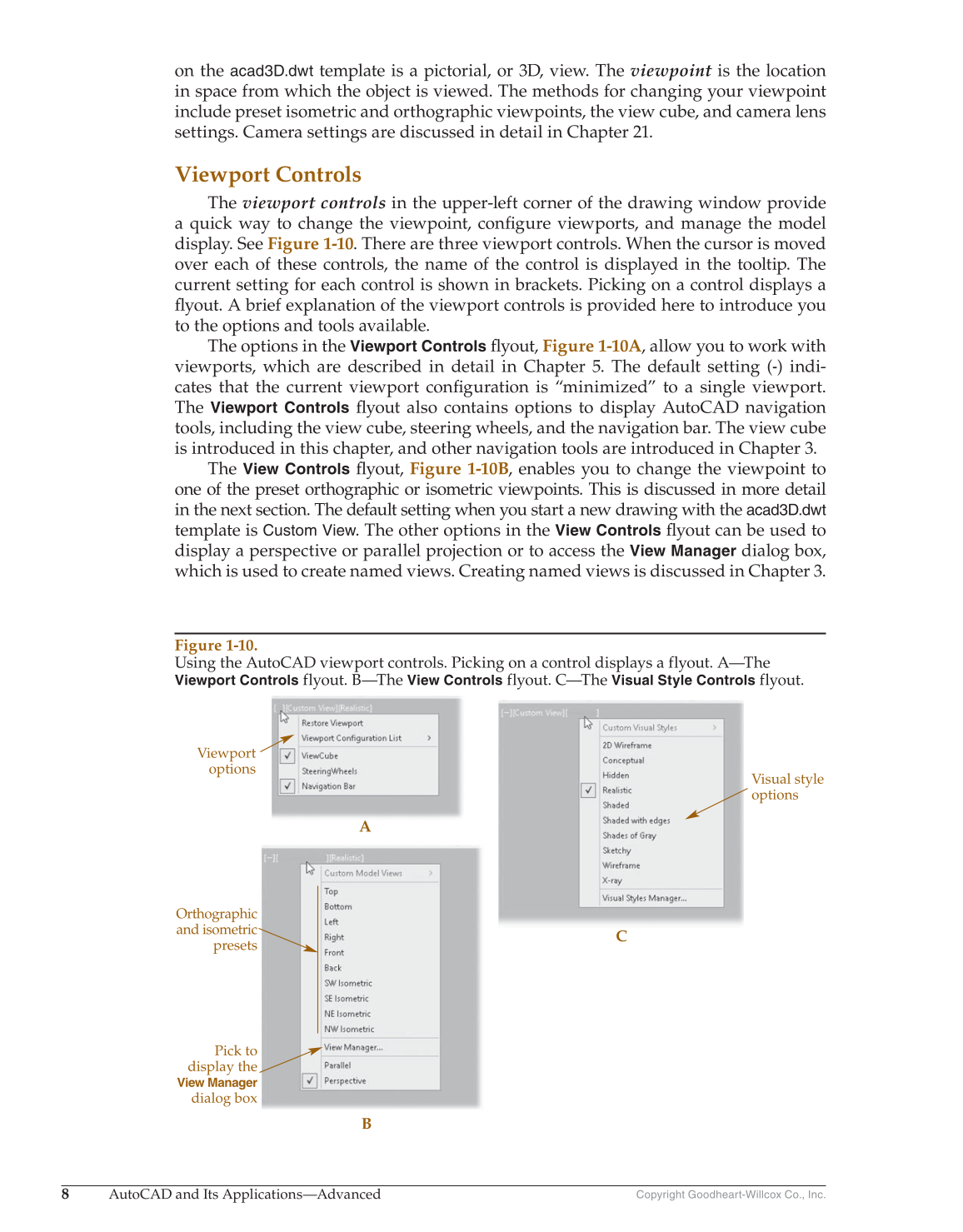

Displaying 3D Views Displaying 3D Views
AutoCAD provides several methods of changing your viewpoint to produce different
pictorial views. The default view in the 2D environment based on the
acad.dwt
template
is a plan, or top, view of the XY plane. The default view in the 3D environment based
OPTIONS
Application Menu
Options
Type
OPTIONS
OP
CUI
Ribbon
Manage
Customization
User Interface
Type
CUI
Right-click
Available
panels

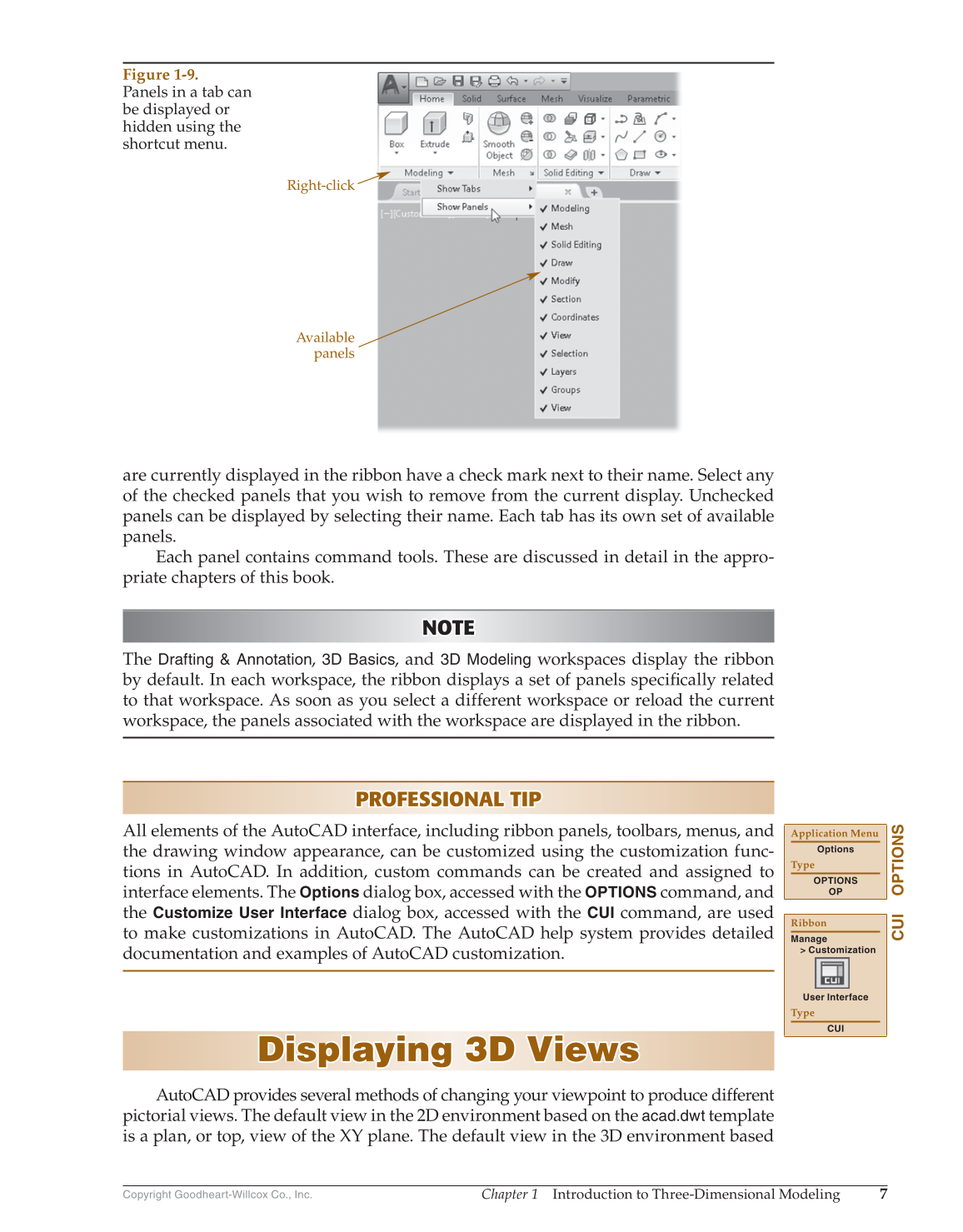

Figure 1-9.
Panels in a tab can
be displayed or
hidden using the
shortcut menu.
