Drawing
Problems
-
Chapter
8
Copyright Goodheart-Willcox Co., Inc.
210
AutoCAD and Its Applications—Advanced
Problems 4–7. These problems require you to use a variety of solid modeling functions to con-
struct the objects. Use all of the solid modeling and editing commands you have learned so far
to assist in construction. Create new UCSs as needed and use a dynamic UCS when practi-
cal. Use
SOLIDHIST
and
SHOWHIST
to record and view the steps used to create the solid
models. Create copies of the completed models and split them as required to show the internal
features visible in the section views. Do not add dimensions to the models. For objects that have
dimensions with tolerances, use the base dimension from which the upper and lower limits are
calculated to create the model. Save each drawing as P8-(problem number).

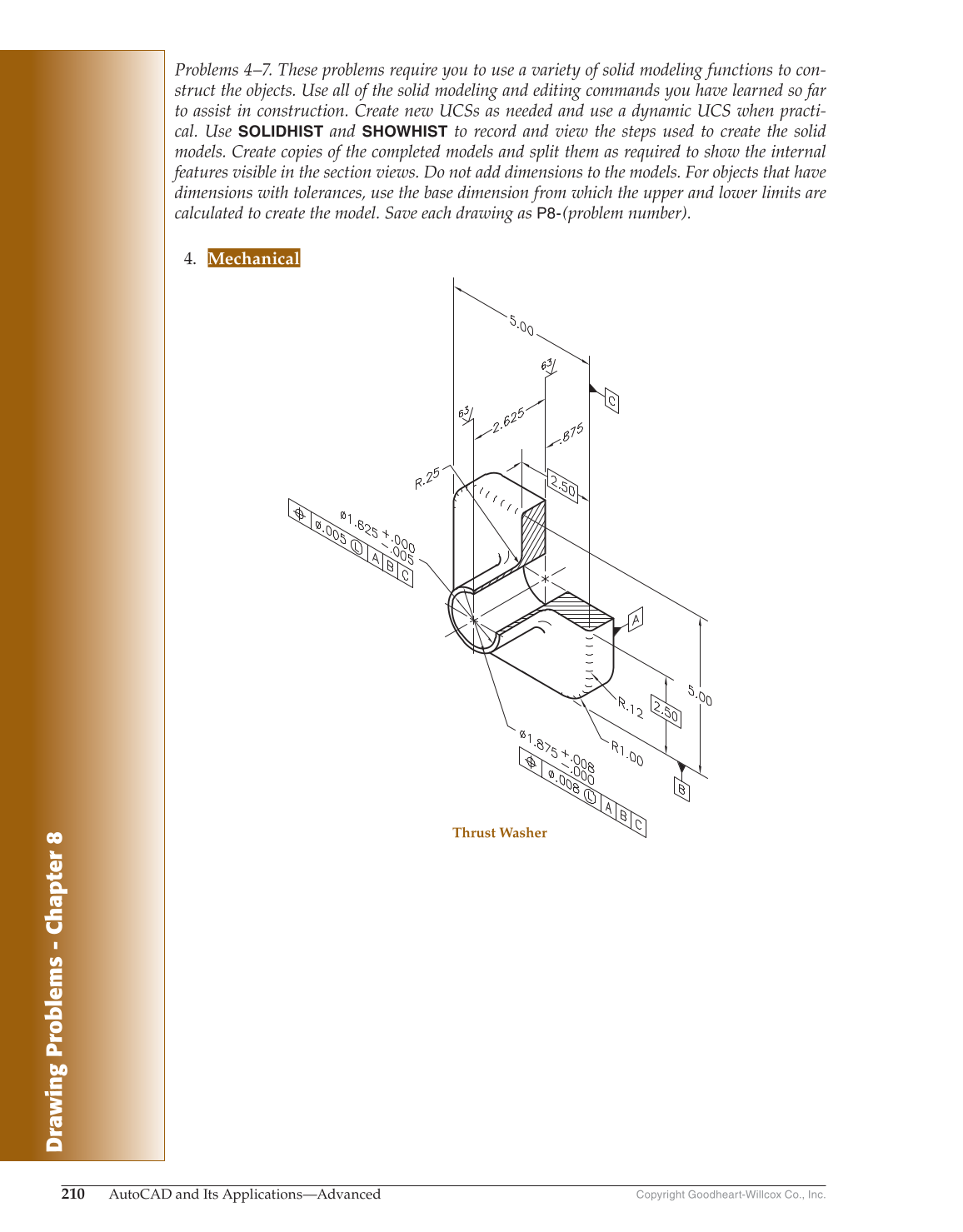

4. Mechanical
Thrust Washer
