Drawing
Problems
-
Chapter
8
Copyright Goodheart-Willcox Co., Inc.

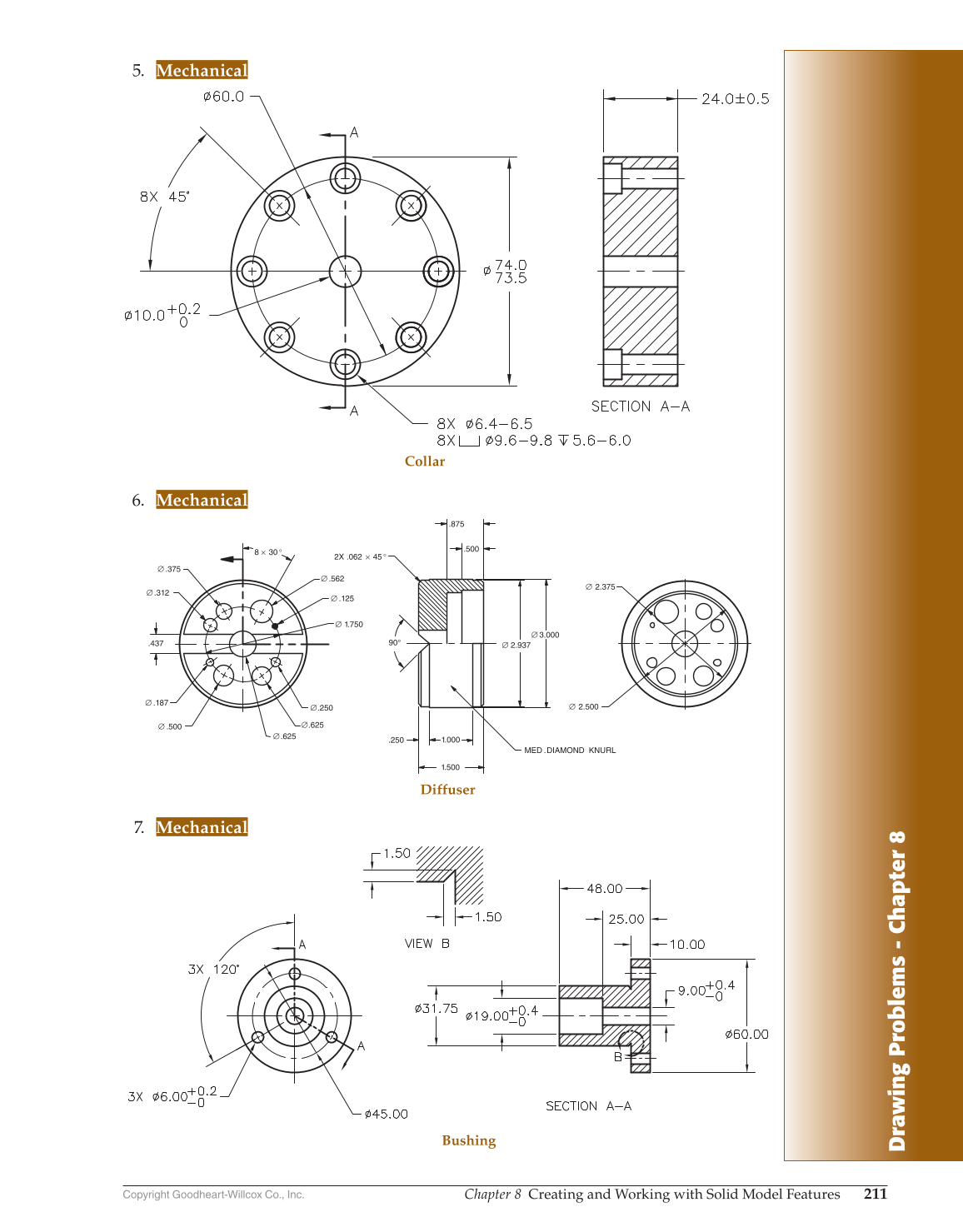

Chapter 8 Creating and Working with Solid Model Features
211
5. Mechanical
6. Mechanical
7. Mechanical
Collar
∅ .375
∅ .312
.437
∅ .187
∅ .500
∅.625
∅.625
∅.250
∅ 1.750
∅ .125
∅ .562
8 30 × °
.875
.500
.250
1.000
1.500
MED .DIAMOND KNURL
2X 45 .062 ° ×
90°
∅ 3.000
∅ 2.937
∅ 2.375
∅ 2.500
Diffuser
Bushing
