Drawing
Problems
-
Chapter
12
Chapter 12 Arranging and Patterning Objects
383

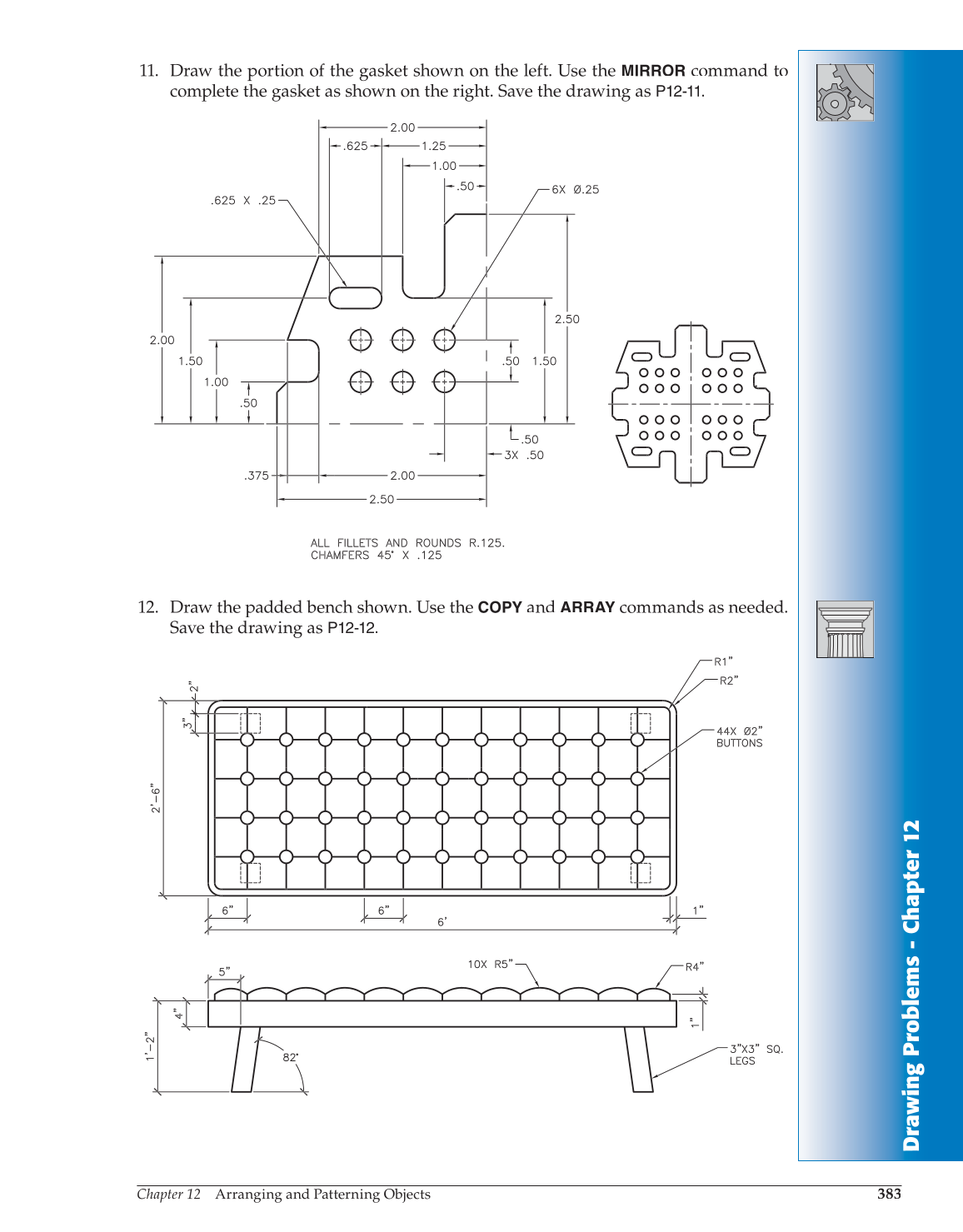

11. Draw the portion of the gasket shown on the left. Use the
MIRROR
command to
complete the gasket as shown on the right. Save the drawing as P12-11.
12. Draw the padded bench shown. Use the
COPY
and
ARRAY
commands as needed.
Save the drawing as P12-12.
