Drawing
Problems
-
Chapter
12
384
AutoCAD and Its Applications—Basics

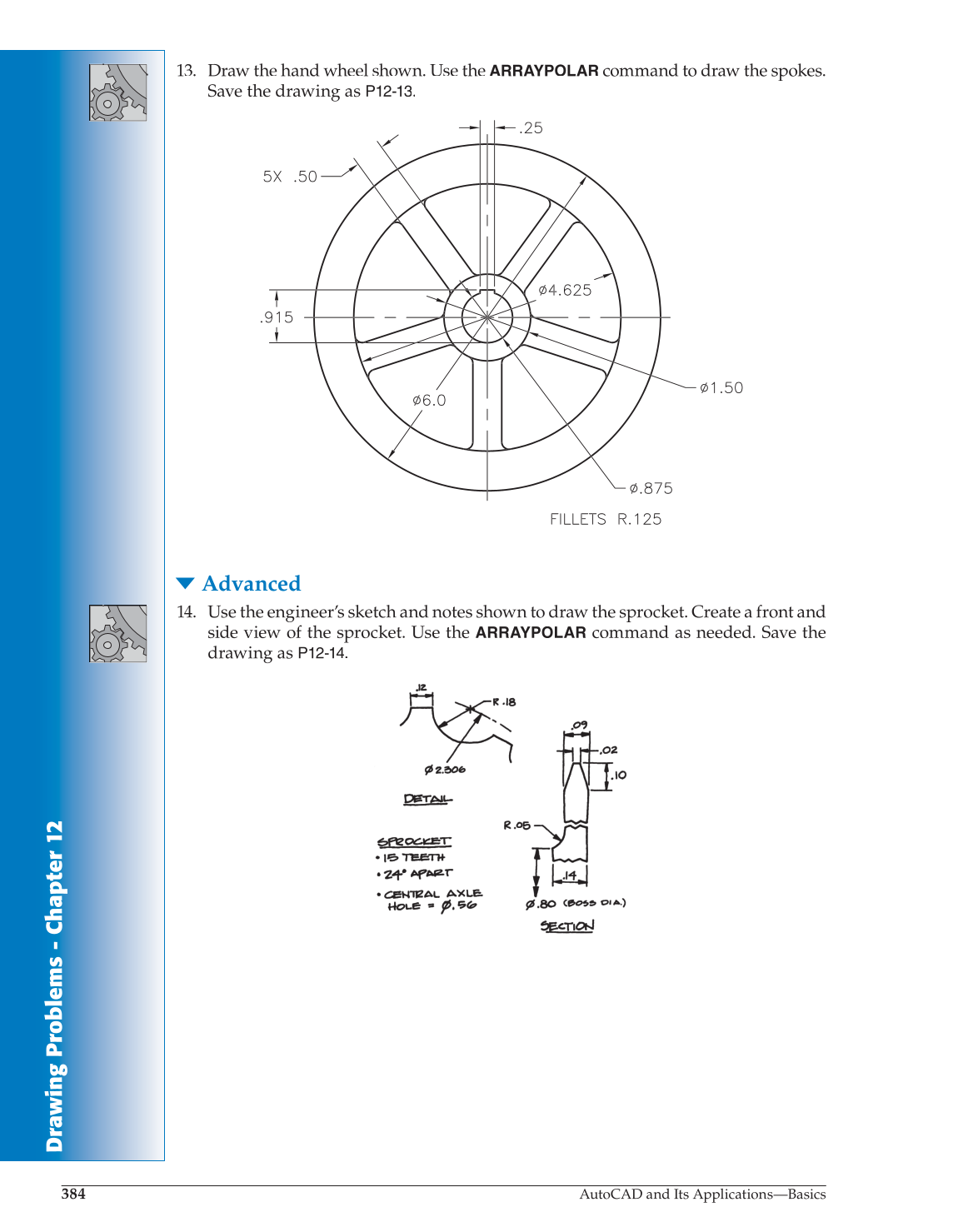

13. Draw the hand wheel shown. Use the
ARRAYPOLAR
command to draw the spokes.
Save the drawing as P12-13.
▼
Advanced
14. Use the engineer’s sketch and notes shown to draw the sprocket. Create a front and
side view of the sprocket. Use the
ARRAYPOLAR
command as needed. Save the
drawing as P12-14.
